Item number: 0122287
9 Variants
Suction cup OBF35X90P Polyurethane 55/60, 3/8" NPT female
Special designed friction cups for oily surfaces, such as sheets in metal forming processes. Thanks to the strong grip on oily surfaces, the suction cups can wi...
Read more
Login or create account to access all our content and features!
Variants
- 0122287

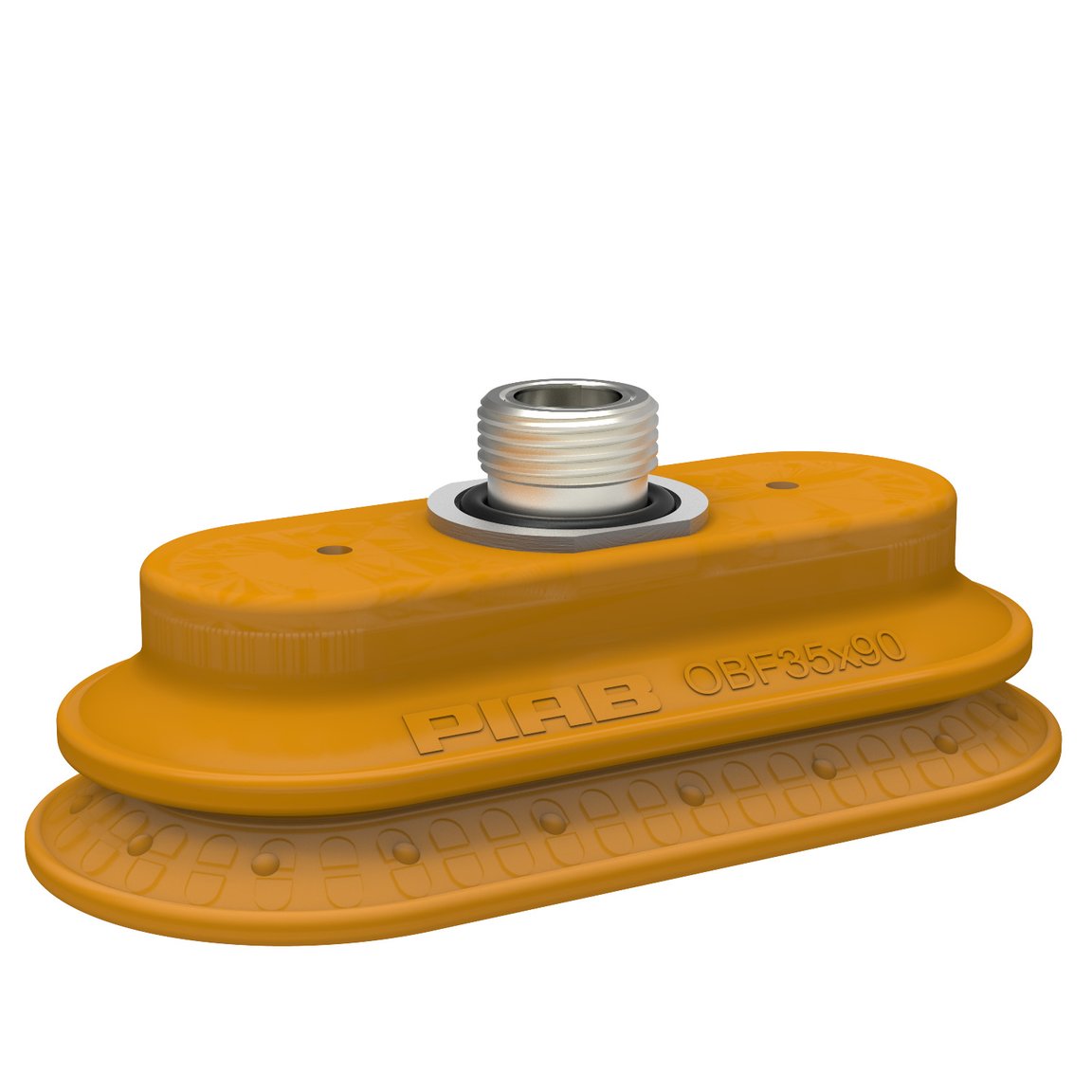

- 0119121
- 0121436
- 0200694
- 0119123

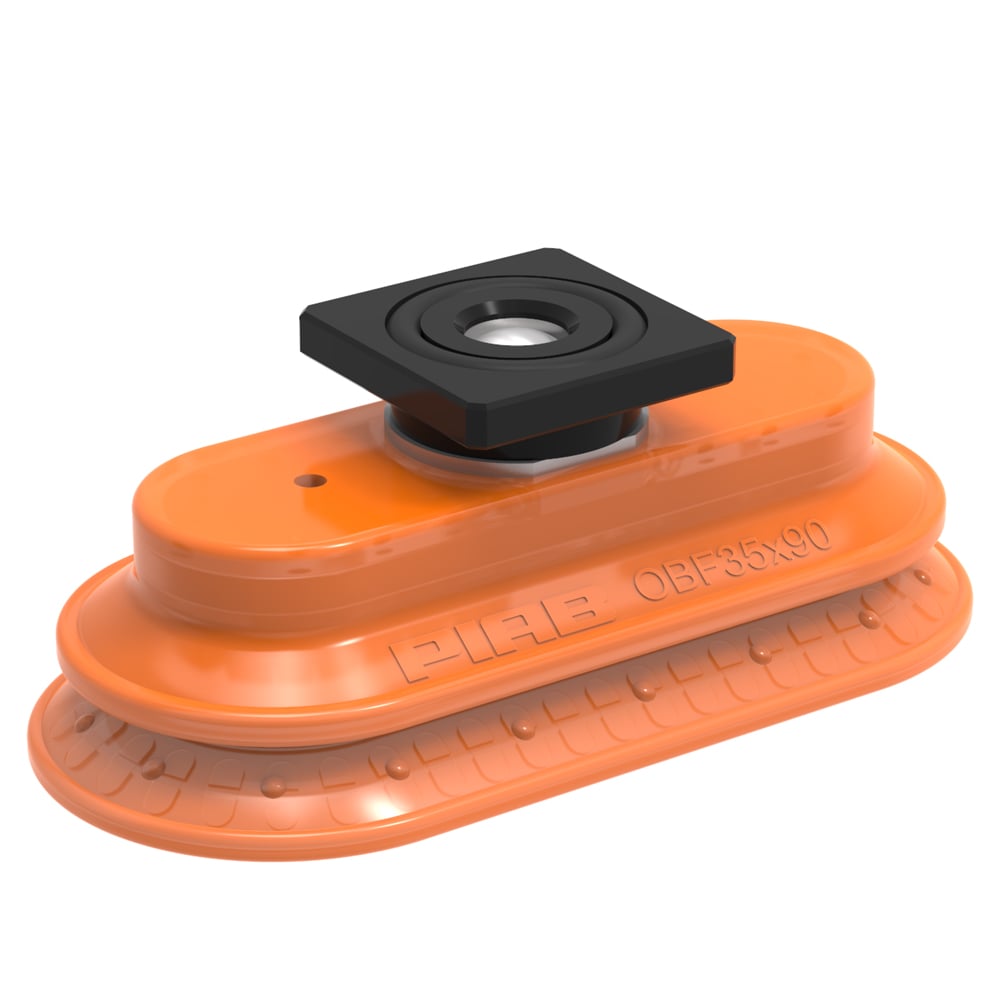

- 0213929

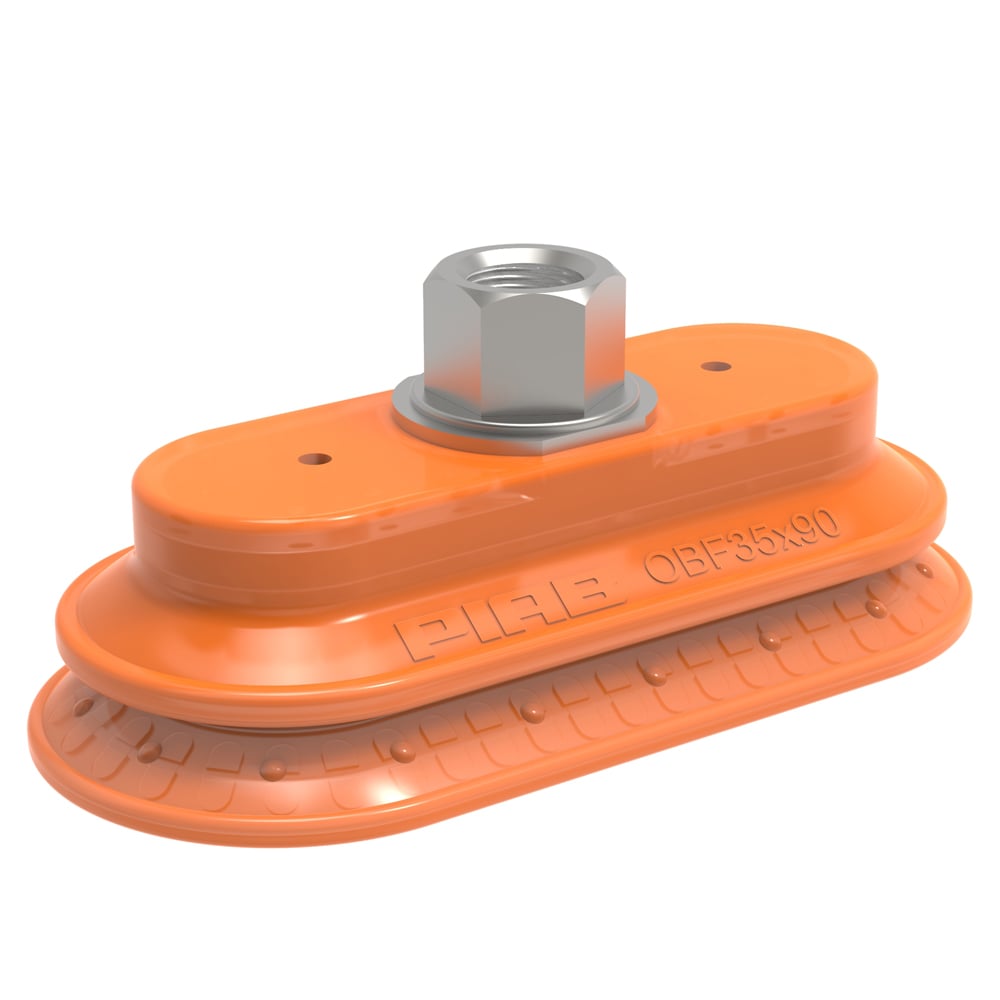

- 0213915

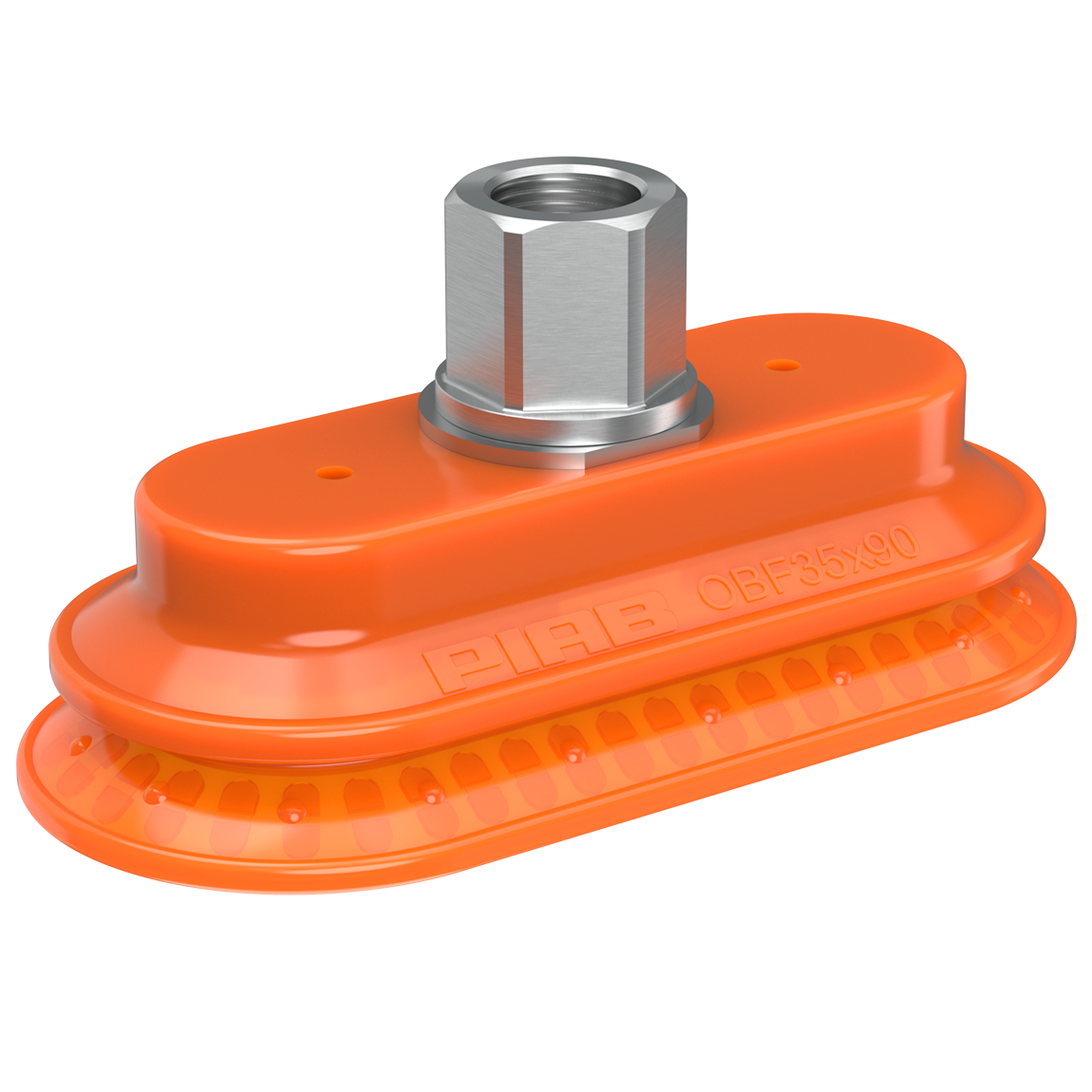

- 0242504
- 0213919
Features
- Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
- Normal wear on friction cup will not affect the long term shear force performance.
- Best choice if > 0,1g/m2 press oil is used on the sheet.
- Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
- The "OBF" design is suitable for oblong objects with domed and flat surfaces, such as those encountered with body parts in the automotive industry.
- Can handle objects with height differences.
- Fitting option, male G3/8", with a swivel function prior to the locking operation, for easy positioning of the oval cup.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Automotive
- Bodysides & framing
- De-stacking
- Door on / off ergo tools
- Gas tank assembly and installation
- Glass assembly & installation
General
Material
Polyurethane (PU)
Characteristics
Oily sheet metal
Suction cup model
OBF
Volume
36 cm³
Weight
77 - 97 g
Fitting
Fitting option
None
Fitting size
3/8"
Fitting style
Female
Fitting type
NPT-thread
Dimension
Height
41.5 mm
Length
105 mm
Width (1)
50 mm
Performance - lifting forces
OBF35x90P Oily steel plate
60 -kPa
108 N
105 N
90 -kPa
157 N
151 N
Performance - lifting forces
OBF35x90P Dry metal sheet
60 -kPa
140 N
125 N
90 -kPa
198 N
179 N
Material
Name
Polyurethane (PU55)
Colour
Orange
Temperature
10 - 50 °C
Hardness
55 °Shore A
Material
Name
Polyurethane (PU60)
Colour
GreenTransparent
Temperature
10 - 50 °C
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
