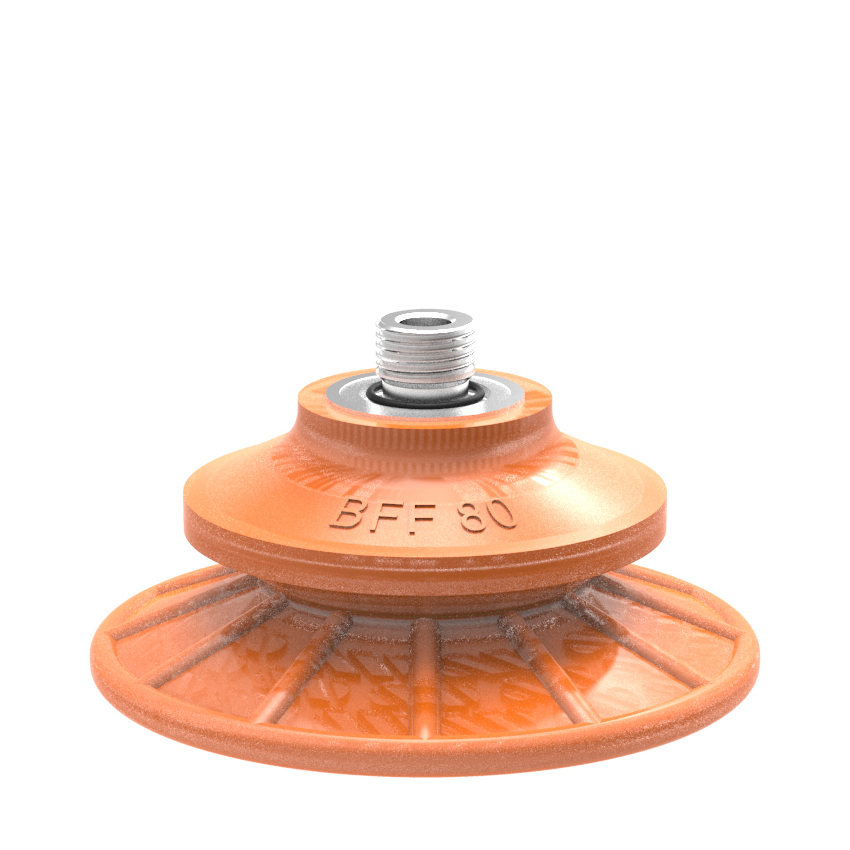

Suction cup BFF80P Polyurethane 55/60 G1/4^" male with mesh filter

Variants

•

  0206882

  Suction cup BFF80P Polyurethane 55/60. 3/8^" NPT female with mesh filter
  Compare
•

  0207255

  Suction cup BFF80P Polyurethane 55/60 G3/8^" female with mesh filter
  Compare
•

  0207256

  Suction cup BFF80P Polyurethane 55/60 G3/8^" female plastic thread
  Compare
•

  0207257

  Suction cup BFF80P Polyurethane 55/60 G3/8^" male, 1/8^" NPSF female, with mesh filter
  Compare
•

  0207258

  Suction cup BFF80P Polyurethane 55/60 T-slot with mesh filter
  Compare
•

  0207259

  Suction cup BFF80P Polyurethane 55/60 G1/4^" female with mesh filter
  Compare
•

  0207260

  Suction cup BFF80P Polyurethane 55/60 M10x1,5 male with mesh filter
  Compare
•

  0207261

  Suction cup BFF80P Polyurethane 55/60 G3/8^" female with mesh filter, 17 mm thread
  Compare
•

  0209104

  Suction cup BFF80P Polyurethane 55/60 G1/4^" male with mesh filter
  Compare

Features

• Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
• Normal wear on friction cup will not affect the long term shear force performance.
• Best choice if > 0.1g/m2 press oil is used on the sheet.
• Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
• The "BFF" design is suitable for uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications.
• The flat inner support gives stability during movement in any orientation.
• DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
