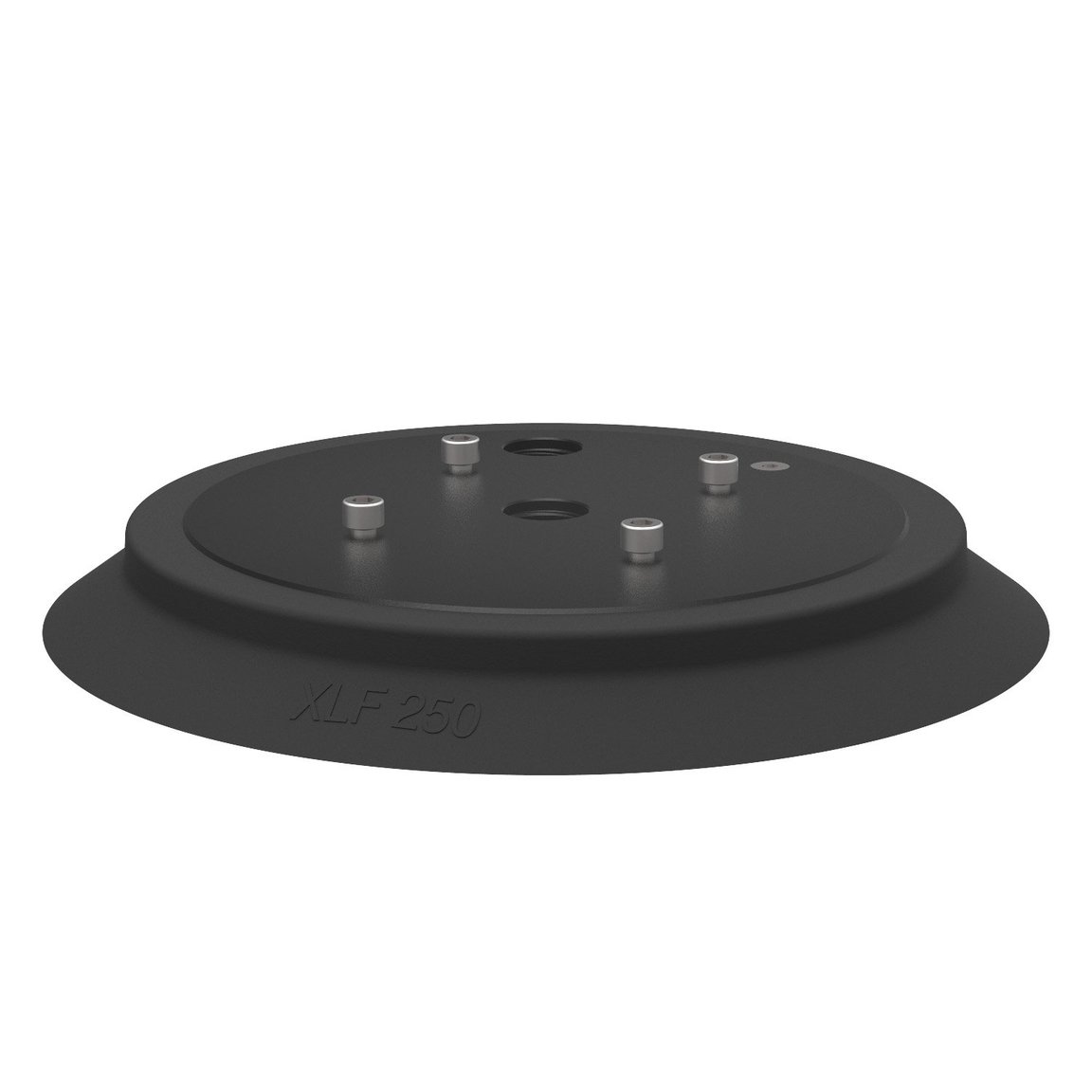

XLF250 Extra Large Flat cup, G1/2" female
Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface. Friction pattern increases safety and capability...
Read more
Login or create account to access all our content and features!
Variants
- 0127131
- 0127132
- 0127133
- 0127134
Features
- Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface.

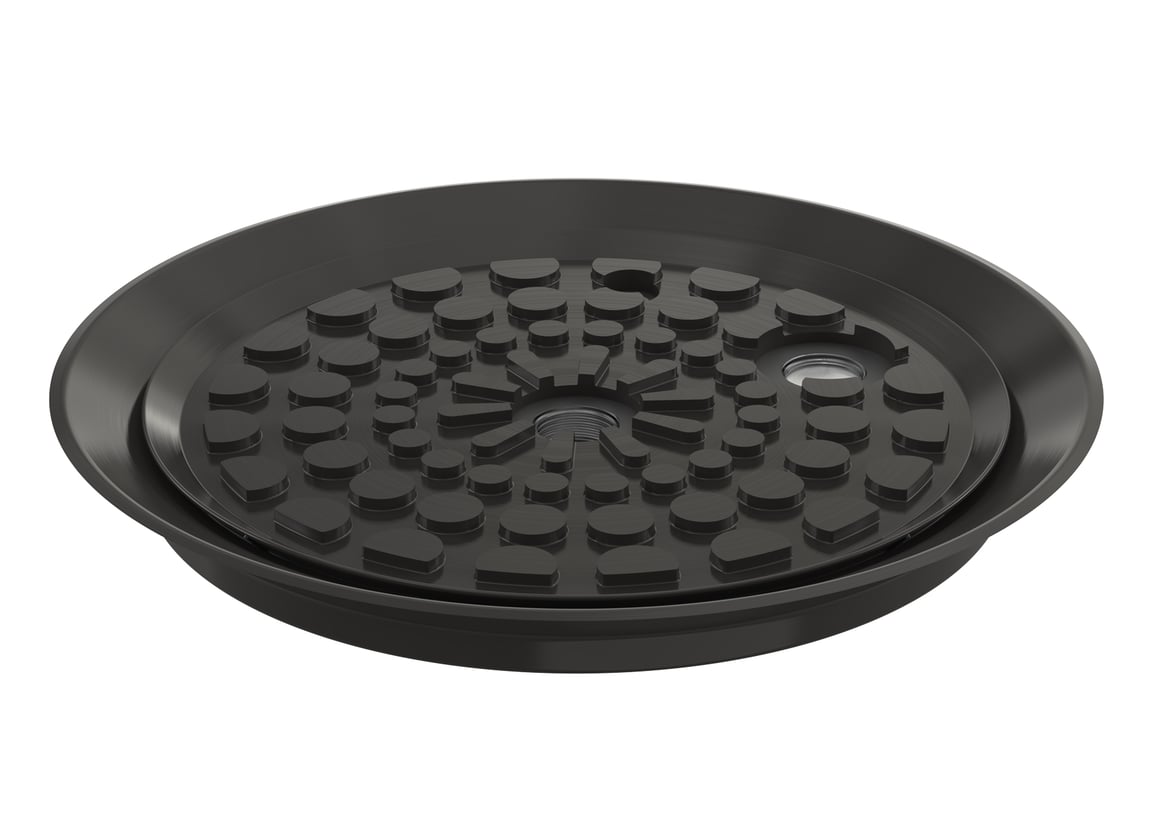

- Friction pattern increases safety and capabillity to handle tilted or standing glass/metal sheets.
- Double lip design increases safety against over-load or tear on the outer lip.
- Durable and abrasive resistant material reduces the risk for marks.

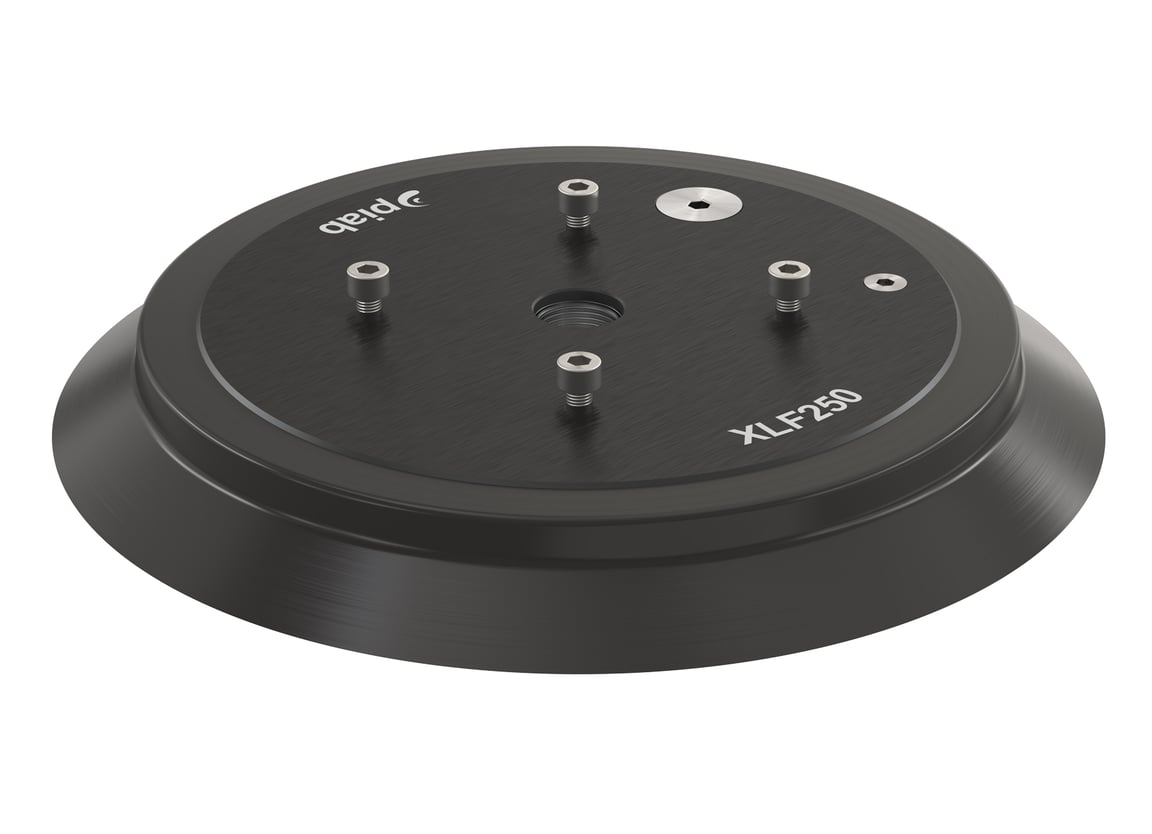

- Flat mounting plate facilitates customized mounting interfaces.
- Auxiliary port, suitable for vacuum sensing or efficient blow-off/release.
Glass
Metal sheets
General
Material
Nitrile-PVC (NPV) 60°
Characteristics
Dry sheet metal , Glass handling , Mark free
Suction cup model
XLF
Volume
435 cm³
Weight, min.
1280 g
Fitting
Fitting option
None
Fitting size
1/2"
Fitting style
Female
Fitting type
G-thread
Dimension
Height
27 mm
Outer diameter, actuated
255.5 mm
Outer diameter, min.
250 mm
Performance - lifting forces
XLF250 Outer lip
20 -kPa
0 N
1461 N
40 -kPa
1719 N
0 N
60 -kPa
2451 N
2083 N
90 -kPa
3511 N
2980 N
Performance - lifting forces
XLF250 Inner lip
40 -kPa
1319 N
1461 N
60 -kPa
1947 N
1655 N
90 -kPa
2883 N
2450 N
Material
Name
Nitrile-PVC (NPV)
Colour
Black
Temperature
0 - 90 °C
Hardness
60 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
