Item number: 01.14.291
5 Variants

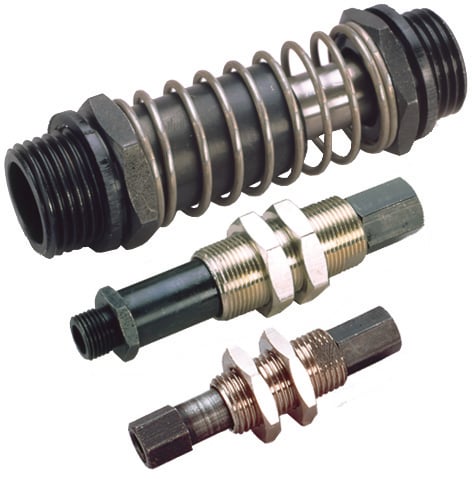

Level compensator G1/2" with stiffer spring

Login or create account to access all our content and features!

Variants

  • 01.14.291
  • 33.00.A09
  • 33.50.068
  • 33.50.069
  • 33.50.071

Features

  • Adjust differences in levels, for example on lifting devices with several suction cups on a frame.
  • A level compensator is often advantageous since it places less demand on exact vertical positioning, for example on a handling robot.
  • The level compensator provides a certain degree of shock absorbtion.
  • Level Compensator G1/2" with stiffer spring is identical to standard level compensator G1/2" except for thicker spring material. Suits e.g. robot vision systems in applications such as auto-racking.

Automotive

  • Loading and unloading metal sheets
  • Plastic part removal

Plastics

  • Plastic part removal

General

Material
Steel
Temperature
-4 - 194 °F
Weight, min.
6.91 oz

Mechanical data

Action range/Stroke
0.59 in
Load, vertical, max.
110.16 lbf
Spring constant
17.13 lbf/in
Spring force
20.23 - 33.72 lbf
