Item number: OF25X70P.5C.G41M
2 Variants

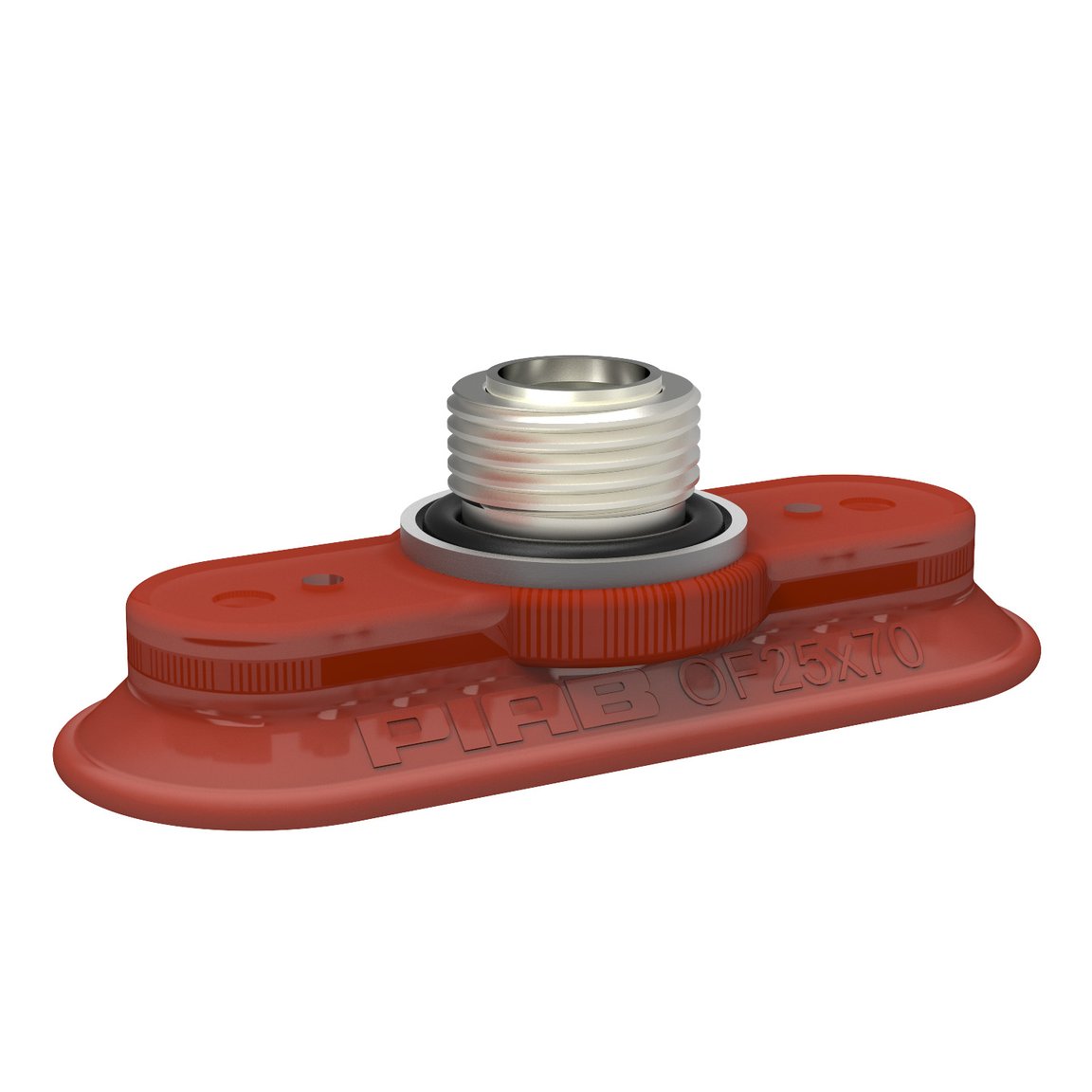

Suction cup OF25x70P Polyurethane 40, G3/8" male
Login or create account to access all our content and features!
Variants
- OF25X70P.5C.G41M
- OF25X70P.5E.G41M
Features
- Suitable for flat and rough surfaces.
- Fair stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and give extra friction when the lifting force is parallel to the surface of the object.
- DURAFLEX® are suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
- Swivel option, prior to the locking operation, for easy positioning of the oval cup.
Automotive
- Exterior and interior trim components assembly
Packaging
- Case / carton erecting, case / carton opening closing
- Rotary carton feeding
- Slip sheet feeding
- Tray forming, tray unloading and loading
- Boxes and containers
- Robot pick and place and packing
- Card / lid feeding and sorting
General
Material
Polyurethane (PU)
Characteristics
Dry sheet metal , Corrugated / cardboard , Plastic injection molded parts
Suction cup model
OF
Volume
0.37 in³
Weight, min.
0.67 oz
Fitting
Fitting option
None
Fitting size
3/8"
Fitting style
Male
Fitting type
G-thread
Dimension
Height
0.91 in
Length
2.85 in
Outer diameter, min.
2.85 in
Width
1.075 in
Performance - lifting forces
OF25x70P PU40
5.91 -inHg
5.4 lbf
10.34 lbf
17.72 -inHg
14.84 lbf
20.23 lbf
26.58 -inHg
24.055 lbf
23.61 lbf
Material
Name
Polyurethane (PU40)
Color
RedTransparent
Temperature
50 - 122 °F
Hardness
40 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Gasoline
Wear resistance
