Item number: B75P.4K
16 Variants

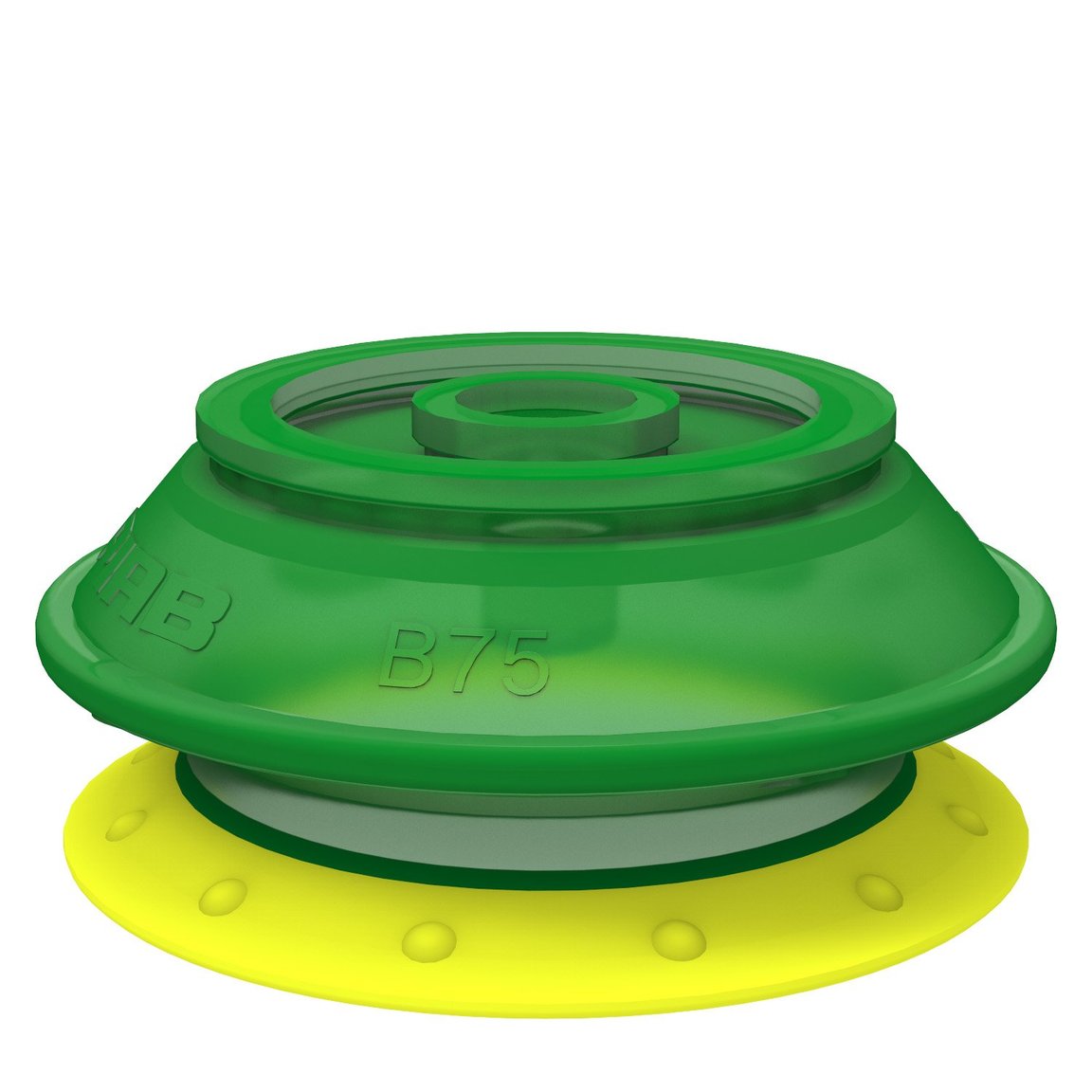

Suction cup B75P Polyurethane 30/60
Login or create account to access all our content and features!
Variants
B75P.4K
B75P.4K.07NA
B75P.4K.07ND
B75P.4K.07NE
B75P.4K.07NF
B75P.5K
B75P.5K.G40M
B75P.5E
B75P.5E.G40M
B75P.5K.N40W
B75P.5E.N40W
B75P.4E
B75P.4E.07NA
B75P.4E.07ND
B75P.4E.07NE
B75P.4E.07NF
Features
- Suitable for level adjustment and for uneven and porous surfaces such as cardboard, etc.
- Dual hardness allowing strength and stability in conjunction with softness and flexibility.
- DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
- The DURAFLEX® material is mark-free.
Automotive
- Exterior and interior trim components assembly
Packaging
- Boxes and containers
- Card / lid feeding and sorting
- Case / carton erecting, case / carton opening closing
- Robot pick and place and packing
- Rotary carton feeding
- Slip sheet feeding
- Tray forming, tray unloading and loading
General
Material
Polyurethane (PU)
Characteristics
Dry sheet metal , Plastic injection molded parts , Mark free
Suction cup model
B-P
Volume
6.71 in³
Weight, min.
1.8 oz
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
1.47 in
Outer diameter, actuated
3.4 in
Outer diameter, min.
3.02 in
Performance - lifting forces
B75P PU30 PU60
5.91 -inHg
13.71 lbf
9.89 lbf
17.72 -inHg
33.5 lbf
21.58 lbf
26.58 -inHg
45.41 lbf
25.63 lbf
Material
Name
Polyurethane (PU30)
Color
Yellow
Temperature
50 - 122 °F
Hardness
30 °Shore A
Material
Name
Polyurethane (PU60)
Color
GreenTransparent
Temperature
50 - 122 °F
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Gasoline
Wear resistance
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Gasoline
Wear resistance
