Item number: B75-2.21
3 Variants

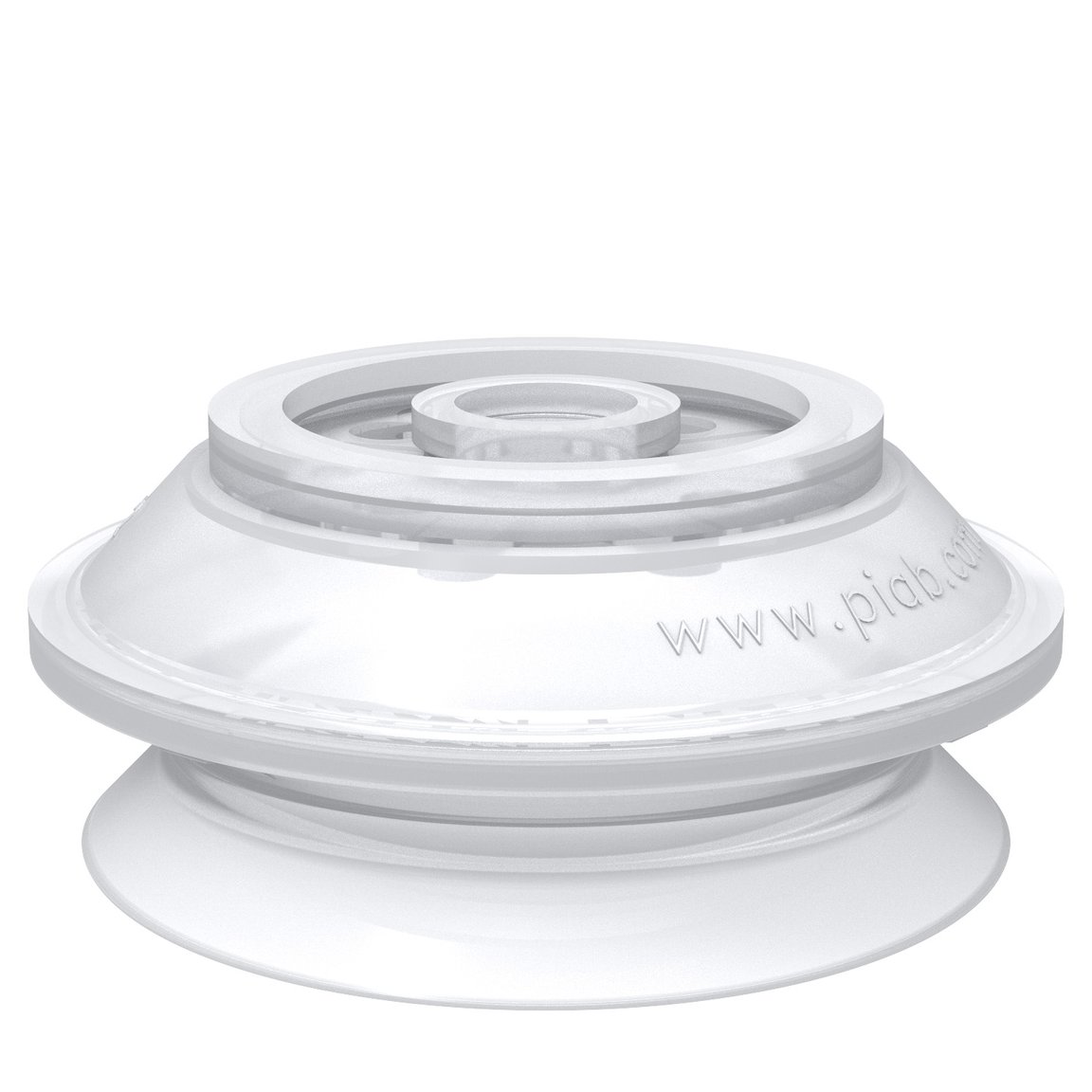

Suction cup B75-2 Silicone FCM with filter
Login or create account to access all our content and features!
Variants
B75-2.21
B75-2.21.07ND
B75-2.21.07NE
Features
- The silicone material complies with FDA 21 CFR 177.2600 & EU 1935/2004.
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
Food & beverage
Packaging
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Food contact materials (FDA & EU), non-detectable
Suction cup model
B
Volume
6.71 in³
Weight, min.
1.48 oz
Fitting
Fitting option
Filter
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
1.46 in
Outer diameter, actuated
3.46 in
Outer diameter, min.
3.13 in
Performance - lifting forces
B75
5.91 -inHg
16.64 lbf
14.028 lbf
17.72 -inHg
37.54 lbf
27.52 lbf
26.58 -inHg
50.81 lbf
34.64 lbf
Material
Name
Silicone (SIL FDA) 50° Shore
Color
Transparent
Temperature
-40 - 392 °F
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Gasoline
Wear resistance
