Item number: BFF80P.5R.G78MR
9 Variants

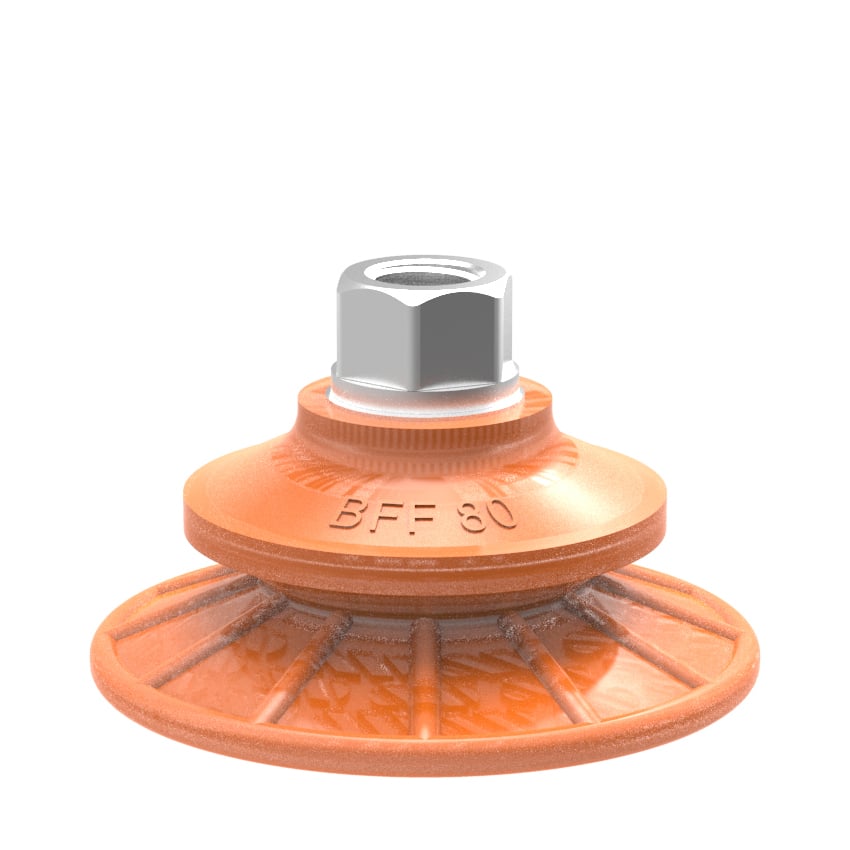

Suction cup BFF80P Polyurethane 55/60 G3/8" female with mesh filter, 17 mm thread
Login or create account to access all our content and features!
Variants
BFF80P.5R.N49MR
BFF80P.5R.G77MR
BFF80P.5R.G56WC
BFF80P.5R.G69MR
BFF80P.5R.T2MR
BFF80P.5R.G75MR
BFF80P.5R.M10MR
BFF80P.5R.G78MR
BFF80P.5R.G79MR
Features
- Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
- Normal wear on friction cup will not affect the long term shear force performance.
- Best choice if > 0.1g/m2 press oil is used on the sheet.
- Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
- The "BFF" design is suitable for uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications.
- The flat inner support gives stability during movement in any orientation.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
