Item number: BFFT35P.5V.G81W
9 Variants

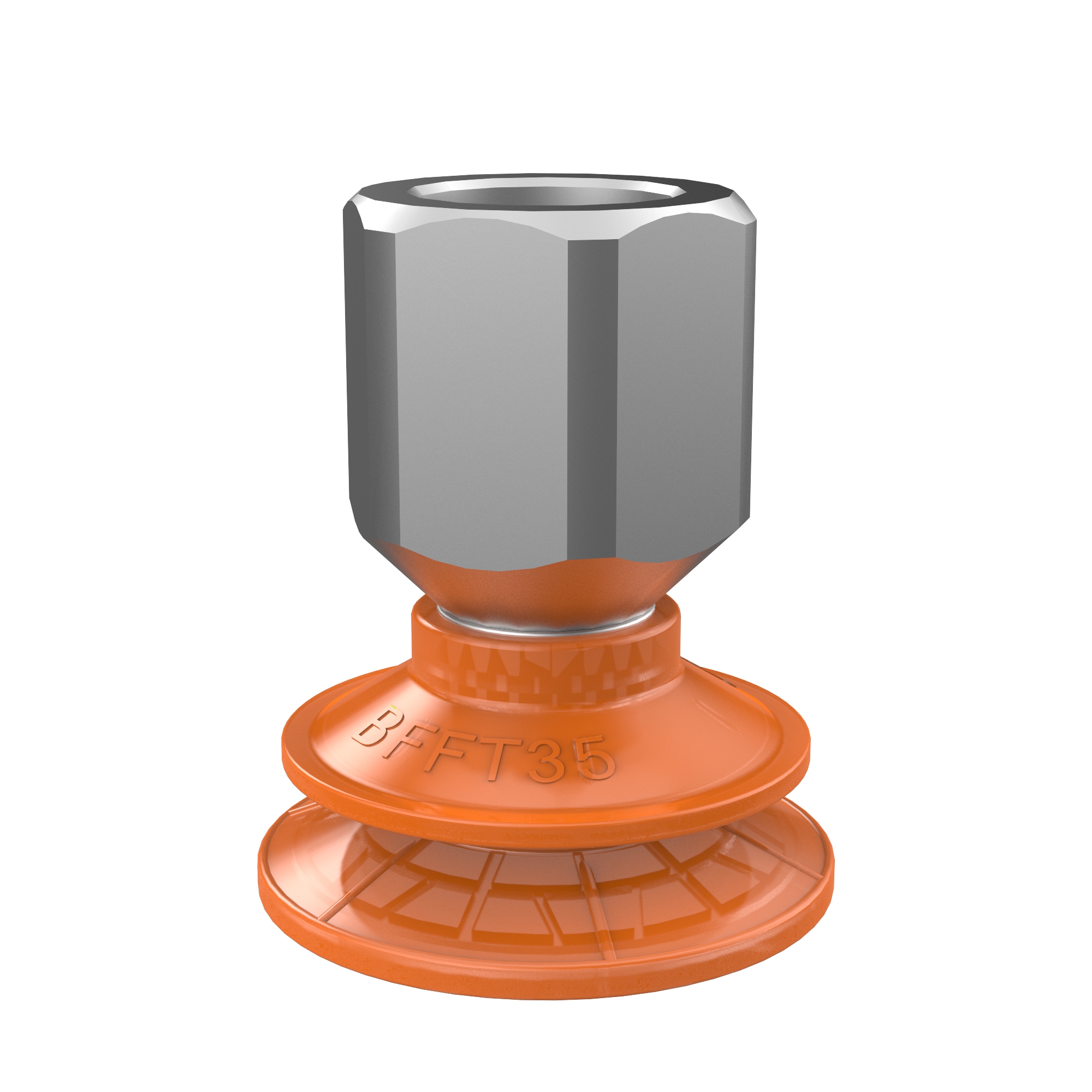

Suction cup BFFT35P Polyurethane 60/60/30, G3/8" female 17mm
Login or create account to access all our content and features!
Variants
- BFFT35P.5V.G85WC
- BFFT35P.5V.G80W
- BFFT35P.5V.G81W
- BFFT35P.5V.G82W
- BFFT35P.5V.N50W
- BFFT35P.5V.G83W
- BFFT35P.5V.G84W
- BFFT35P.5V.M11W
- BFFT35P.5V.T3W
Automotive
- Bodysides & framing
- Door on / off ergo tools
- Gas tank assembly and installation
- Glass assembly & installation
- Press-transfer
General
Material
Polyurethane (PU)
Characteristics
Oily sheet metal
Suction cup model
BFFT
Volume
0.25 in³
Weight, min.
0.77 oz
Fitting
Material
Al
Fitting size
3/8"
Fitting style
Female
Fitting type
G-thread
Dimension
Height
1.64 in
Height 2 (Actuated)
1.33 in
Outer diameter, actuated
1.42 in
Outer diameter, min.
1.38 in
Performance - lifting forces
BFFT35 Oily metal sheet
17.72 -inHg
8.32 lbf
3.6 lbf
26.58 -inHg
11.016 lbf
5.17 lbf
Performance - lifting forces
BFFT35 Dry metal sheet
17.72 -inHg
9.44 lbf
6.74 lbf
26.58 -inHg
13.039 lbf
8.093 lbf
Material
Name
Polyurethane (PU30)
Color
Yellow
Temperature
50 - 122 °F
Hardness
30 °Shore A
Material
Name
Polyurethane (PU60)
Color
GreenTransparent
Temperature
50 - 122 °F
Hardness
60 °Shore A
Material
Name
Polyurethane (PU60)
Color
Orange
Temperature
50 - 122 °F
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Gasoline
Wear resistance
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Gasoline
Wear resistance
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Gasoline
Wear resistance
