Item number: FC20P.4D
12 Variants

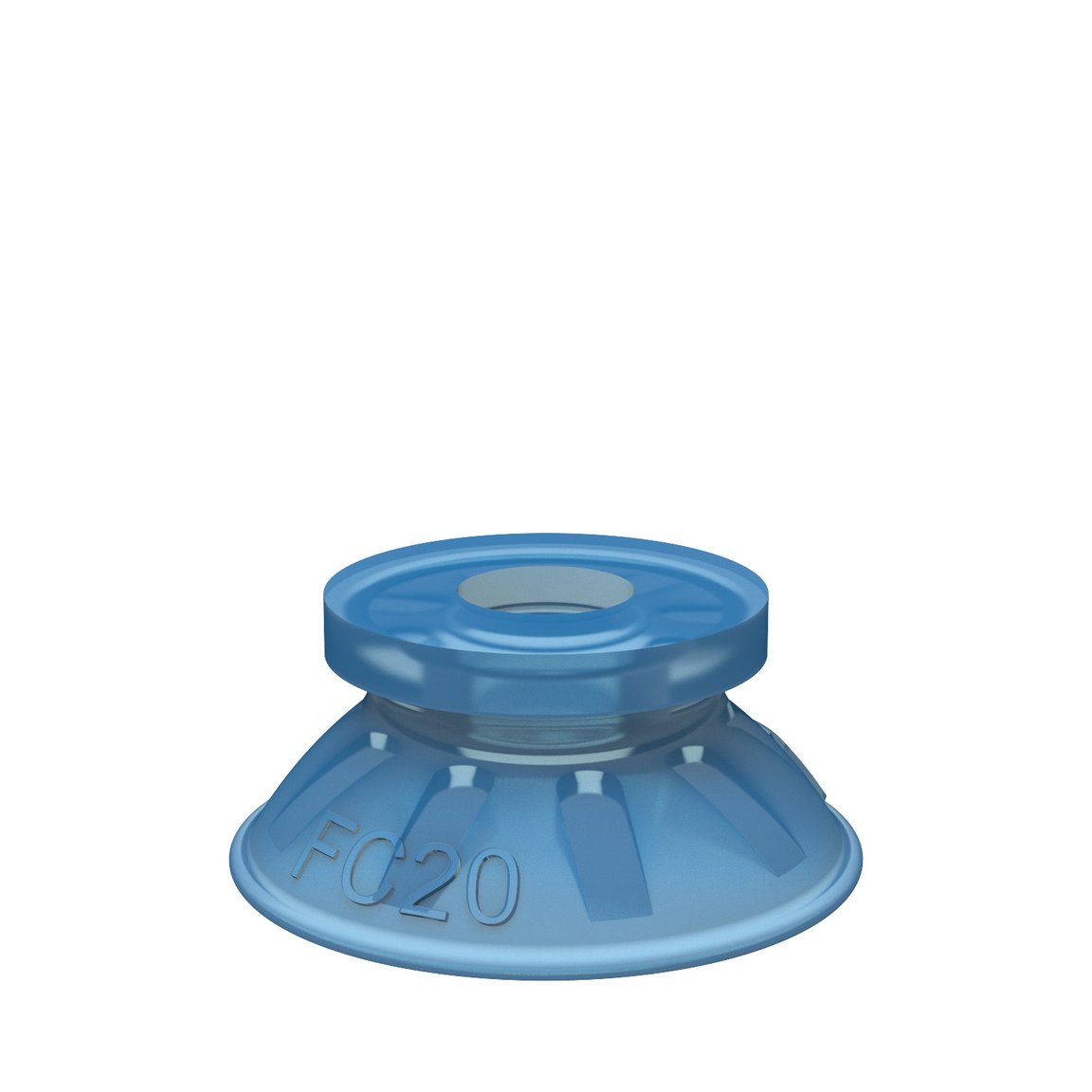

Suction cup FC20P Polyurethane 50
Login or create account to access all our content and features!
Variants
- FC20P.4D
- FC20P.4D.02AA
- FC20P.4D.02AF
- FC20P.4D.02AB
- FC20P.4D.02AC
- FC20P.4D.02AD
- FC20P.4D.02AE
- FC20P.4D.02DA
- FC20P.4D.02DB
- FC20P.4D.02DC
- FC20P.4D.02DD
- FC20P.4D.02DE
Features
- Suitable for lifting small objects and narrow parts, also slightly domed, flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes
- Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
- The suction cups have cleats that prevent thin objects from being disfigured.
- DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
- The DURAFLEX® material is mark-free.
Automotive
- Exterior and interior trim components assembly
Packaging
- Case / carton erecting, case / carton opening closing
- Rotary carton feeding
- Slip sheet feeding
- Tray forming, tray unloading and loading
- Boxes and containers
- Robot pick and place and packing
- Card / lid feeding and sorting
General
Material
Polyurethane (PU)
Characteristics
Dry sheet metal , Mark free
Suction cup model
FC
Volume
0.061 in³
Weight, min.
0.046 oz
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
0.37 in
Outer diameter, min.
0.86 in
Performance - lifting forces
FC20P
5.91 -inHg
1.012 lbf
1.012 lbf
17.72 -inHg
2.7 lbf
2.023 lbf
26.58 -inHg
3.6 lbf
2.7 lbf
Material
Name
Polyurethane (PU50)
Color
BlueTransparent
Temperature
50 - 122 °F
Hardness
50 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Gasoline
Wear resistance
