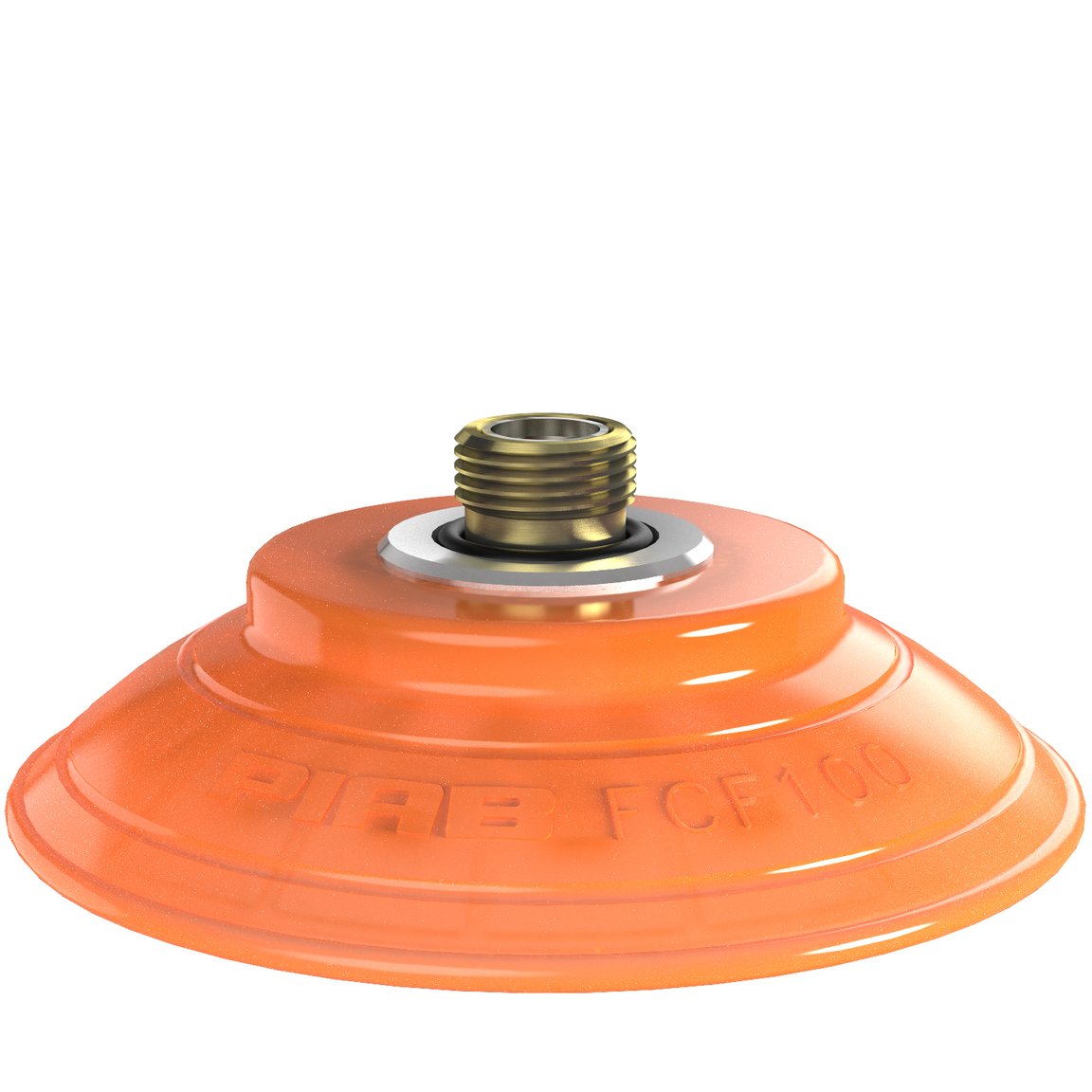

Suction cup FCF100P Polyurethane 55/60 G3/8^" male, with mesh filter

Variants

•

  FCF100P.5R.G40M

  Suction cup FCF100P Polyurethane 55/60 G3/8^" male, with mesh filter
  Compare
•

  FCF100P.5R.G46W

  Suction cup FCF100P Polyurethane 55/60, G3/8^" female
  Compare
•

  FCF100P.5R.M10M

  Suction cup FCF100P Polyurethane 55/60, M10x1.5 male
  Compare
•

  FCF100P.5R.N48W

  Suction cup FCF100P Polyurethane 55/60, 3/8^" NPT female
  Compare
•

  FCF100P.5RC.G56WC

  Suction cup FCF100P Polyurethane 55/60, G3/8^" female, plastic thread
  Compare
•

  FCF100P.5R.G62W

  Suction cup FCF100P Polyurethane 55/60, G3/8^" female, 17 mm thread
  Compare
•

  FCF100P.4R.T1M

  Suction cup FCF100P Polyurethane 55/60, T-slot, with mesh filter
  Compare
•

  FCF100P.5R.G75W

  Suction cup FCF100P Polyurethane 55/60, G1/4^" female
  Compare
•

  02.13.911

  Suction cup FCF100P Polyurethane 55/60, G1/4^" Male
  Compare

Features

• Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
• Normal wear on friction cup will not affect the long term shear force performance.
• Best choice if > 0.1g/m2 press oil is used on the sheet.
• Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
• The "FCF" design is suitable for slightly domed and flat surfaces, e.g., such as those encountered when handling metal sheets in press lines.
• The suction cups have support cleats that prevent thin objects from being disfigured.
• DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
