Item number: F20.10
22 Variants

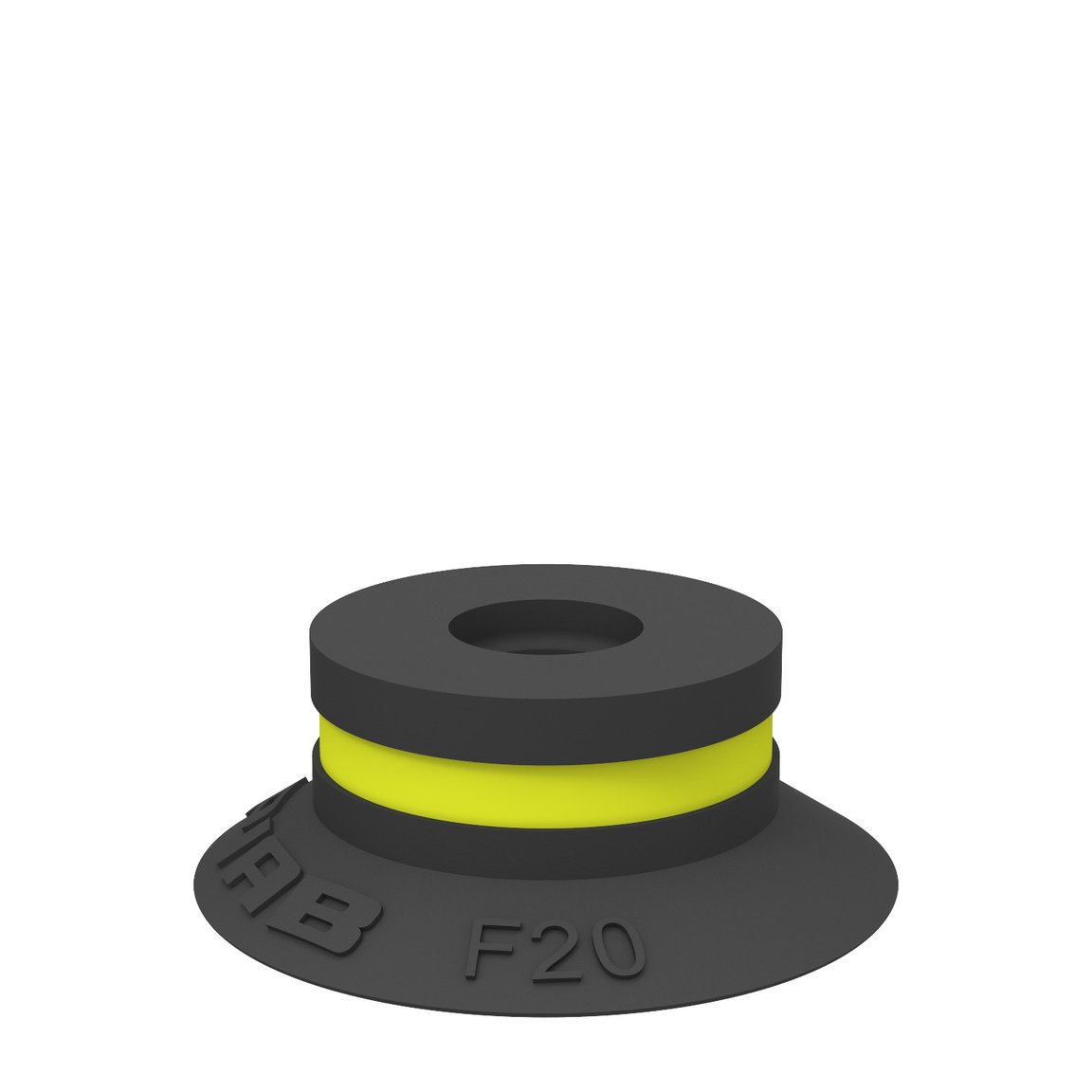

Suction cup F20 Chloroprene
Login or create account to access all our content and features!
Variants
F20.10
F20.10.02AB
F20.10.02DB
F20.10.02AD
F20.10.02AF
F20.10.02CD
F20.10.02DD
F20.10.02AA
F20.10.02DA
F20.10.02AE
F20.10.02AC
F20.10.02DC
F20.20
F20.20.02AB
F20.20.02AD
F20.20.02AF
F20.20.02DB
F20.20.02CD
F20.20.02AA
F20.20.02AE
F20.20.02AC
F20.20.02DC
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
Logistics
Packaging
General
Material
Chloroprene (CR)
Characteristics
Dry sheet metal
Suction cup model
F
Volume
0.061 in³
Weight
0.042 - 0 oz
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
0.31 in
Outer diameter, actuated
0.91 in
Outer diameter, min.
0.87 in
Performance - lifting forces
F20
5.91 -inHg
1.35 lbf
1.12 lbf
17.72 -inHg
3.26 lbf
1.8 lbf
26.58 -inHg
4.27 lbf
1.91 lbf
Material
Name
Chloroprene (CR) 50° Shore A
Color
Black
Temperature
-40 - 230 °F
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Gasoline
Wear resistance
Dimensional drawings
