Item number: F30-2.10
25 Variants

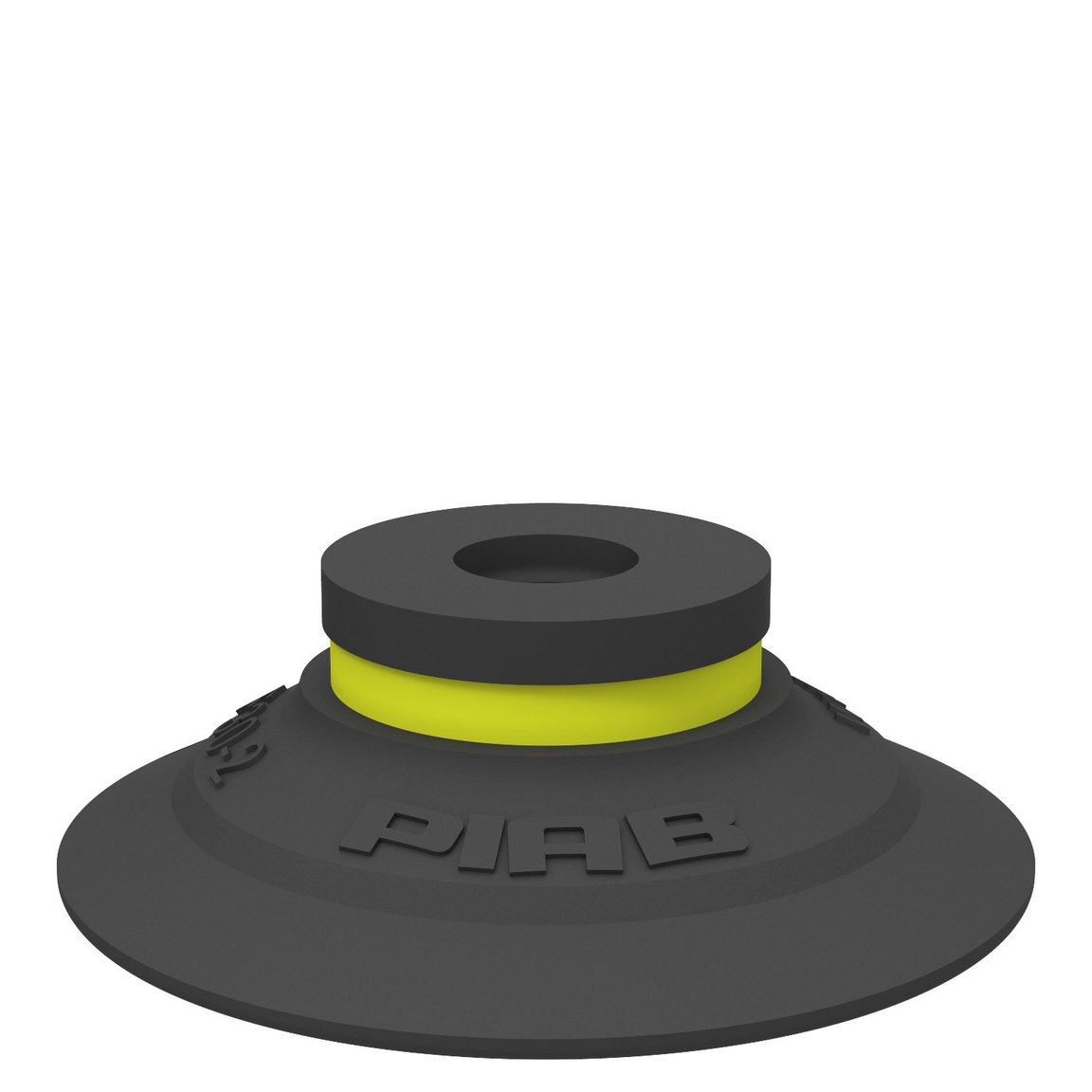

Suction cup F30-2 Chloroprene
Login or create account to access all our content and features!
Variants
- F30-2.10
- F30-2.10.02AA
- F30-2.10.02AB
- F30-2.10.02AC
- F30-2.10.02AD
- F30-2.10.02AE
- F30-2.10.02AF
- F30-2.10.02DA
- F30-2.10.02DB
- F30-2.10.02DC
- F30-2.10.02DD
- F30-2.10.02UV
- F30-2.10.02CD
- F30-2.20
- F30-2.20.02AA
- F30-2.20.02AB
- F30-2.20.02AC
- F30-2.20.02AD
- F30-2.20.02AE
- F30-2.20.02AF
- F30-2.20.02DB
- F30-2.20.02DC
- F30-2.20.02DD
- F30-2.20.02CD
- F30-2.20.02UV
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
Logistics
Packaging
General
Material
Chloroprene (CR)
Characteristics
Dry sheet metal
Suction cup model
F
Volume
0.12 in³
Weight, min.
0.078 oz
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
0.41 in
Outer diameter, actuated
1.28 in
Outer diameter, min.
1.26 in
Performance - lifting forces
F30-2
5.91 -inHg
2.7 lbf
2.47 lbf
17.72 -inHg
5.62 lbf
3.6 lbf
26.58 -inHg
6.97 lbf
4.5 lbf
Material
Name
Chloroprene (CR) 50° Shore A
Color
Black
Temperature
-40 - 230 °F
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Gasoline
Wear resistance
