Item number: F110P.4K
16 Variants

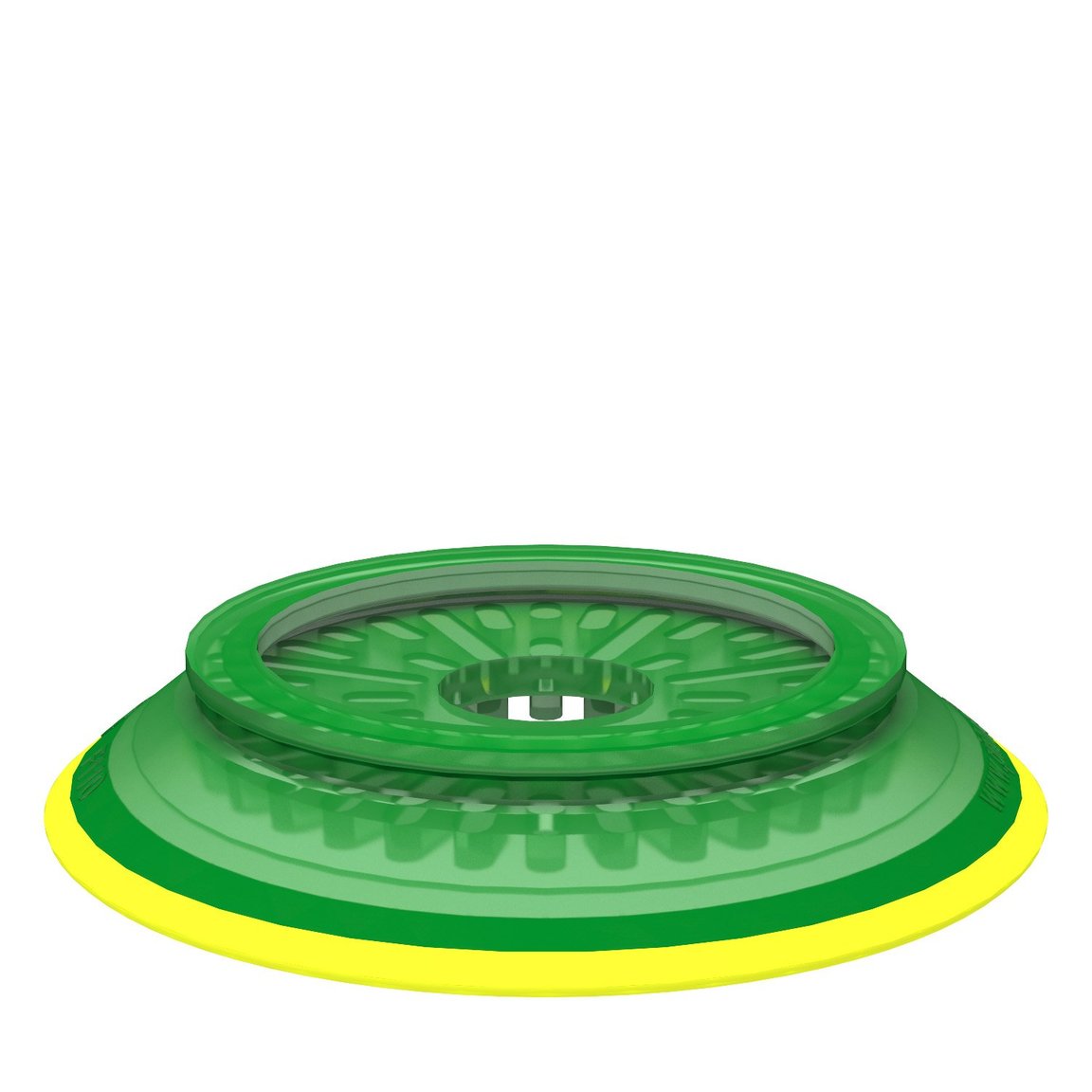

Suction cup F110P Polyurethane 30/60
Login or create account to access all our content and features!
Variants
F110P.4K
F110P.5K
F110P.5K.G40M
F110P.4K.11NA
F110P.4K.11NB
F110P.4K.11NC
F110P.4K.11VC
F110P.5K.N40W
F110P.4E
F110P.5E
F110P.5E.G40M
F110P.5E.N40W
F110P.4E.11NA
F110P.4E.11NB
F110P.4E.11NC
F110P.4E.11VC
Features
- Suitable for flat and rough surfaces.
- Fair stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Dual hardness allowing strength and stability in conjunction with softness and flexibility.
- DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
- The DURAFLEX® material is mark-free.
Automotive
- Plastic part removal
- Exterior and interior trim components assembly
Packaging
- Boxes and containers
- Card / lid feeding and sorting
- Case / carton erecting, case / carton opening closing
- Robot pick and place and packing
- Rotary carton feeding
- Slip sheet feeding
- Tray forming, tray unloading and loading
Plastics
- Plastic part removal
General
Material
Polyurethane (PU)
Characteristics
Dry sheet metal , Mark free
Suction cup model
F
Volume
3.66 in³
Weight, min.
2.89 oz
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
0.79 in
Outer diameter, actuated
4.71 in
Outer diameter, min.
4.53 in
Performance - lifting forces
F110P PU30 PU60
5.91 -inHg
37.54 lbf
33.5 lbf
17.72 -inHg
97.12 lbf
99.14 lbf
26.58 -inHg
132.86 lbf
138.71 lbf
Material
Name
Polyurethane (PU30)
Color
Yellow
Temperature
50 - 122 °F
Hardness
30 °Shore A
Material
Name
Polyurethane (PU60)
Color
GreenTransparent
Temperature
50 - 122 °F
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Gasoline
Wear resistance
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Gasoline
Wear resistance
