Item number: F15MF.40
2 Variants

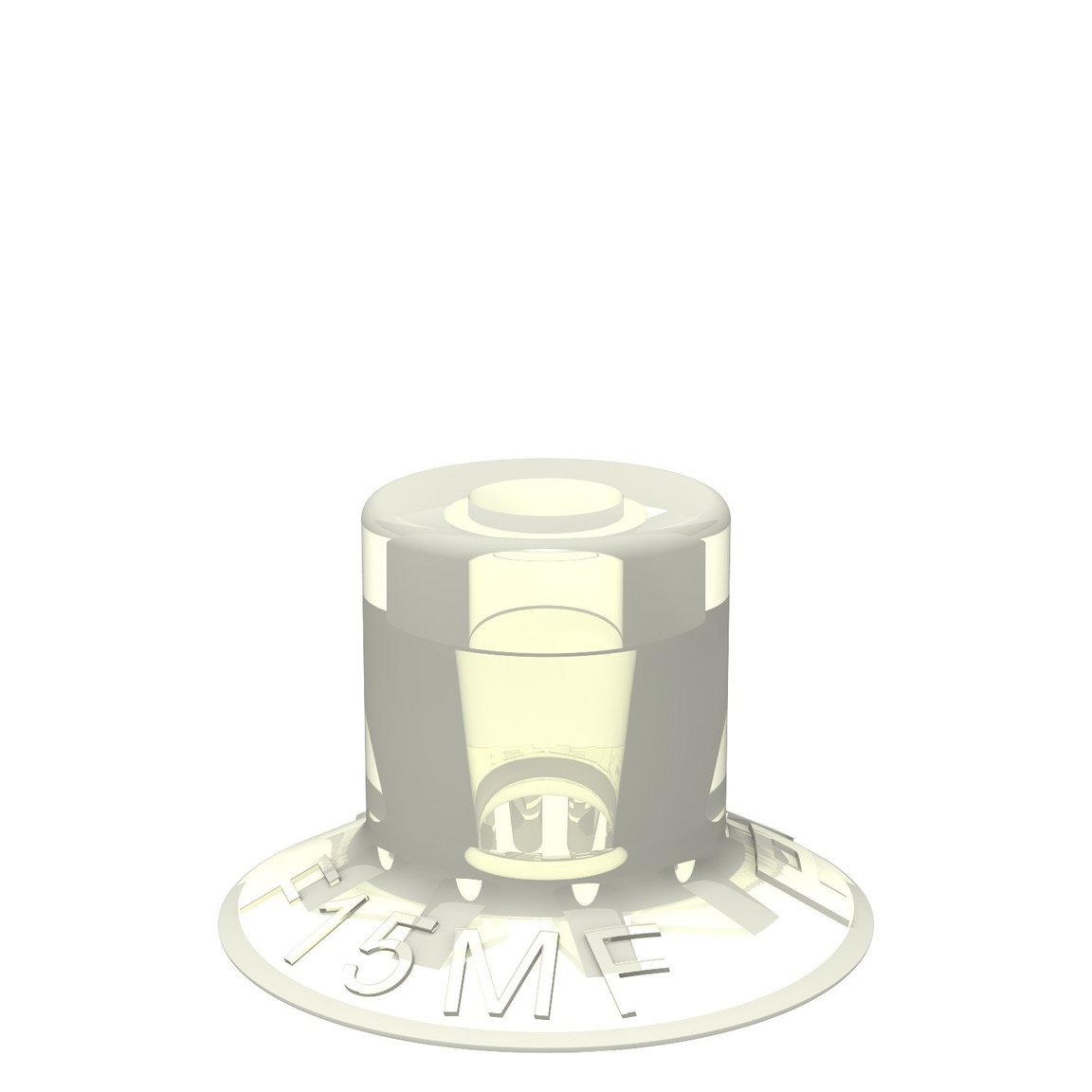

Suction cup F15MF Thermoelastic polyurethane
Login or create account to access all our content and features!
Variants
- F15MF.40
- F15MF.40.01AC
Features
- Suction cup of TPU, a mark free material that leaves no trace on the object being handled.
- Suitable for flat surfaces.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
Glass
General
Material
TPE
Characteristics
Mark free
Suction cup model
F-MF
Volume
0.023 in³
Weight, min.
0.028 oz
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
0.43 in
Outer diameter, min.
0.65 in
Performance - lifting forces
F15MF
5.91 -inHg
0.9 lbf
1.012 lbf
17.72 -inHg
1.8 lbf
2.023 lbf
26.58 -inHg
2.7 lbf
3.26 lbf
Material
Name
Thermoplastic Polyurethane (TPE-U)
Color
WhiteTransparent
Temperature
-4 - 176 °F
Hardness
81 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Gasoline
Wear resistance
