Item number: 01.26.599

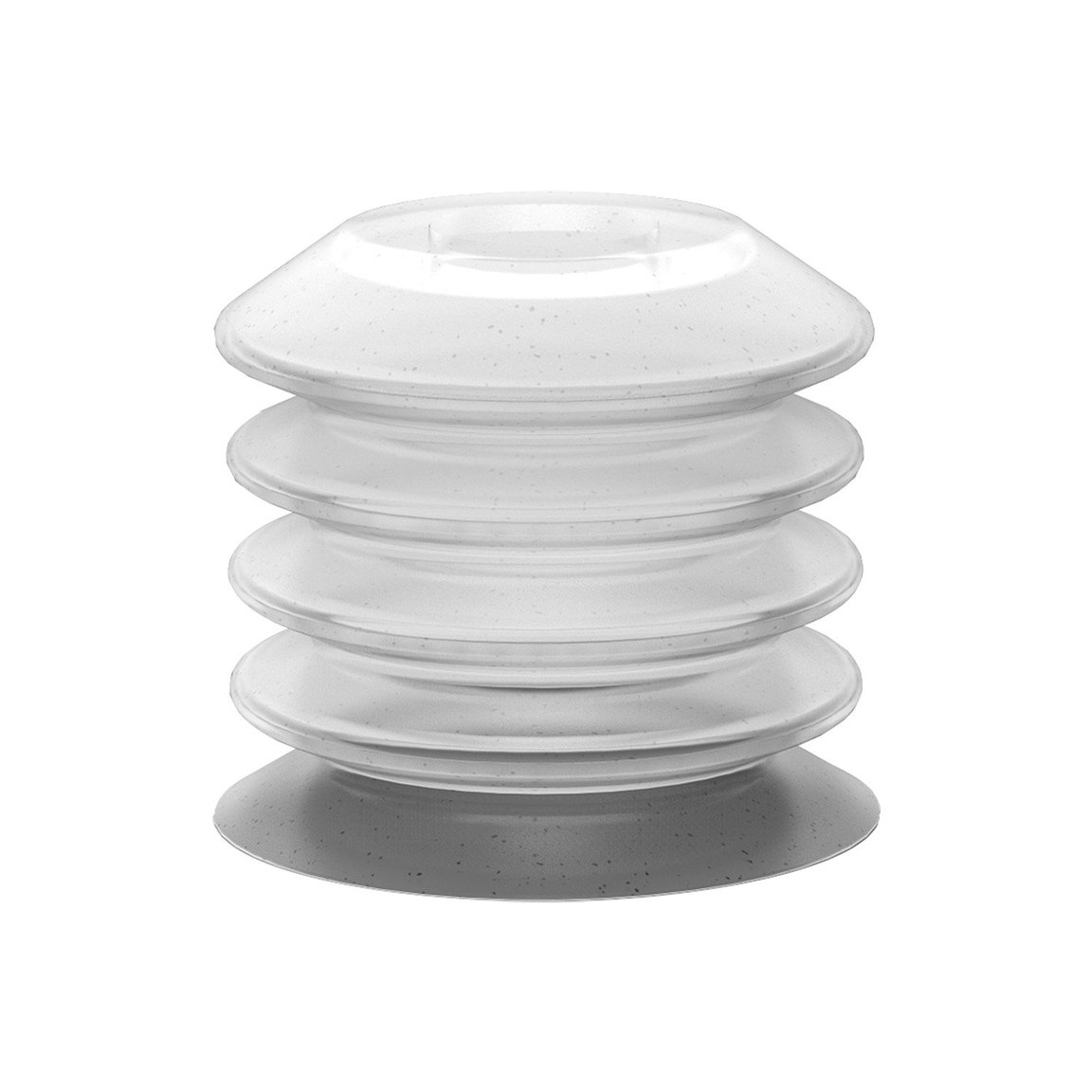

Suction cup B-BL40-2 FDA, detectable, transparent

Login or create account to access all our content and features!

Features

  • The silicone material complies with FDA 21 CFR 177.2600 and EU 1935/2004.
  • Long lasting high-end silicone material.
  • A low percentage metal additive (Fe) is mixed with the rubber material to make it detectable. Less amount of Fe-powder added compared to Blue version (0202850).
  • Suitable for bakeries for use with handling seeded product
  • Suitable for level adjustment.
  • Available with male threaded food grade, detectable plastic fittings or acid proof stainless steel fittings. The fittings are separable.
  • Additional fitting option – retainer clip for standard belts used for bread de-panner.
  • Easy to clean with hygienic design. No dust/dirt pockets.
  • Low vacuum level needed to collapse bellows. Reduces risk for damaging the handled bakery product.

Food & beverage

    Packaging

    • Direct food contact

    General

    Material
    Silicone (SIL)
    Characteristics
    Food contact materials (FDA & EU), detectable
    Suction cup model
    B-BL
    Volume
    1.77 in³
    Weight, min.
    0.32 oz

    Fitting

    Fitting option
    None
    Fitting size
    None
    Fitting style
    None
    Fitting type
    None

    Dimension

    Height
    1.5 in
    Outer diameter, actuated
    1.69 in
    Outer diameter, min.
    1.67 in

    Performance - lifting forces

    B-BL40-2 FDA, detectable

    5.91 -inHg
    3.51 lbf
    0 lbf
    17.72 -inHg
    7.67 lbf
    0 lbf
    26.58 -inHg
    10.16 lbf
    0 lbf

    Material

    Name
    Silicone (SIL FDA detectable)
    Color
    Transparent
    Temperature
    -40 - 392 °F
    Hardness
    40 °Shore A

    Material resistance

    Alcohol
    Concentrated acids
    Ethanol
    n/a
    Hydrolysis
    Methanol
    n/a
    Oil
    Oxidation
    Gasoline
    Wear resistance
