Item number: FBXT35.DS40.04DE
16 Variants

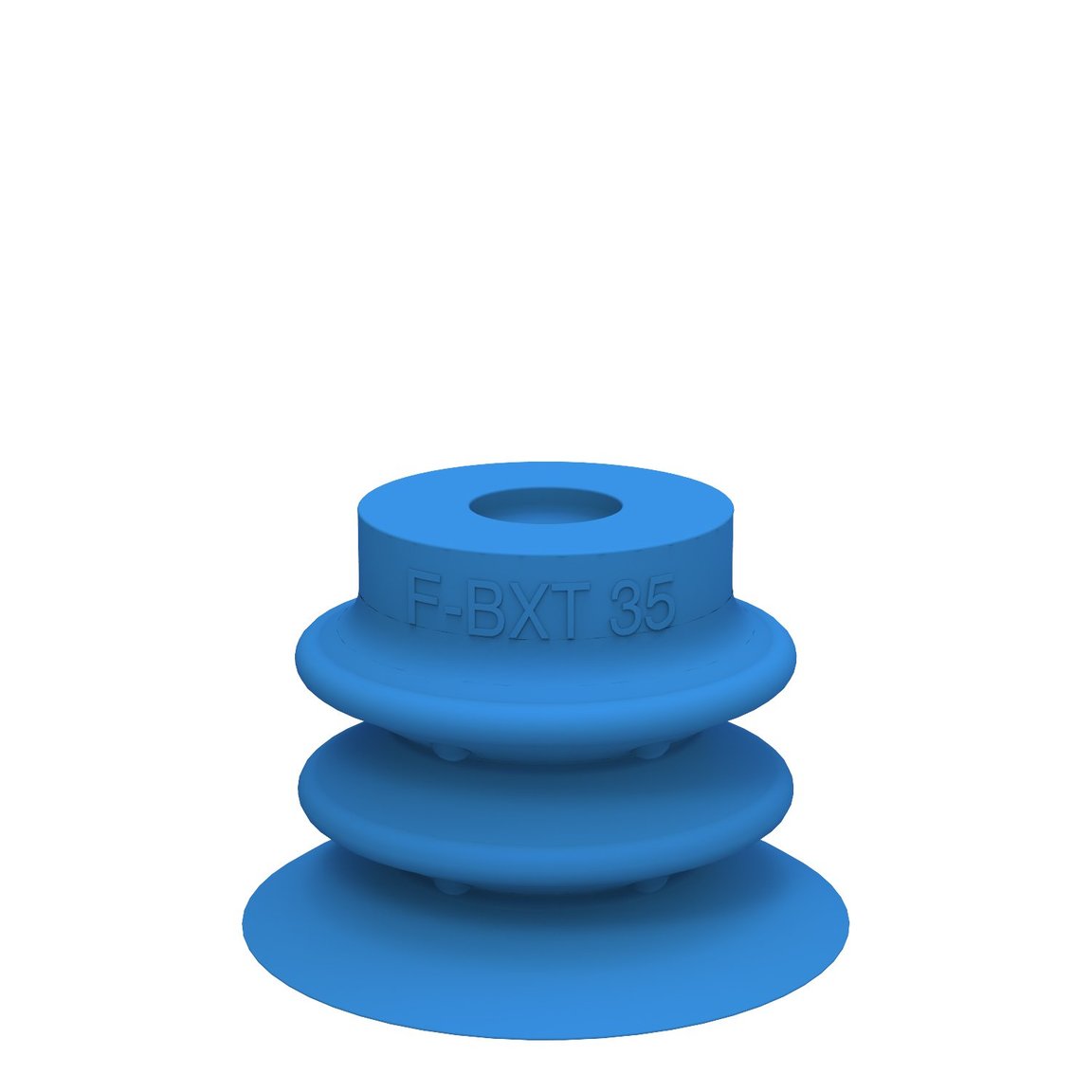

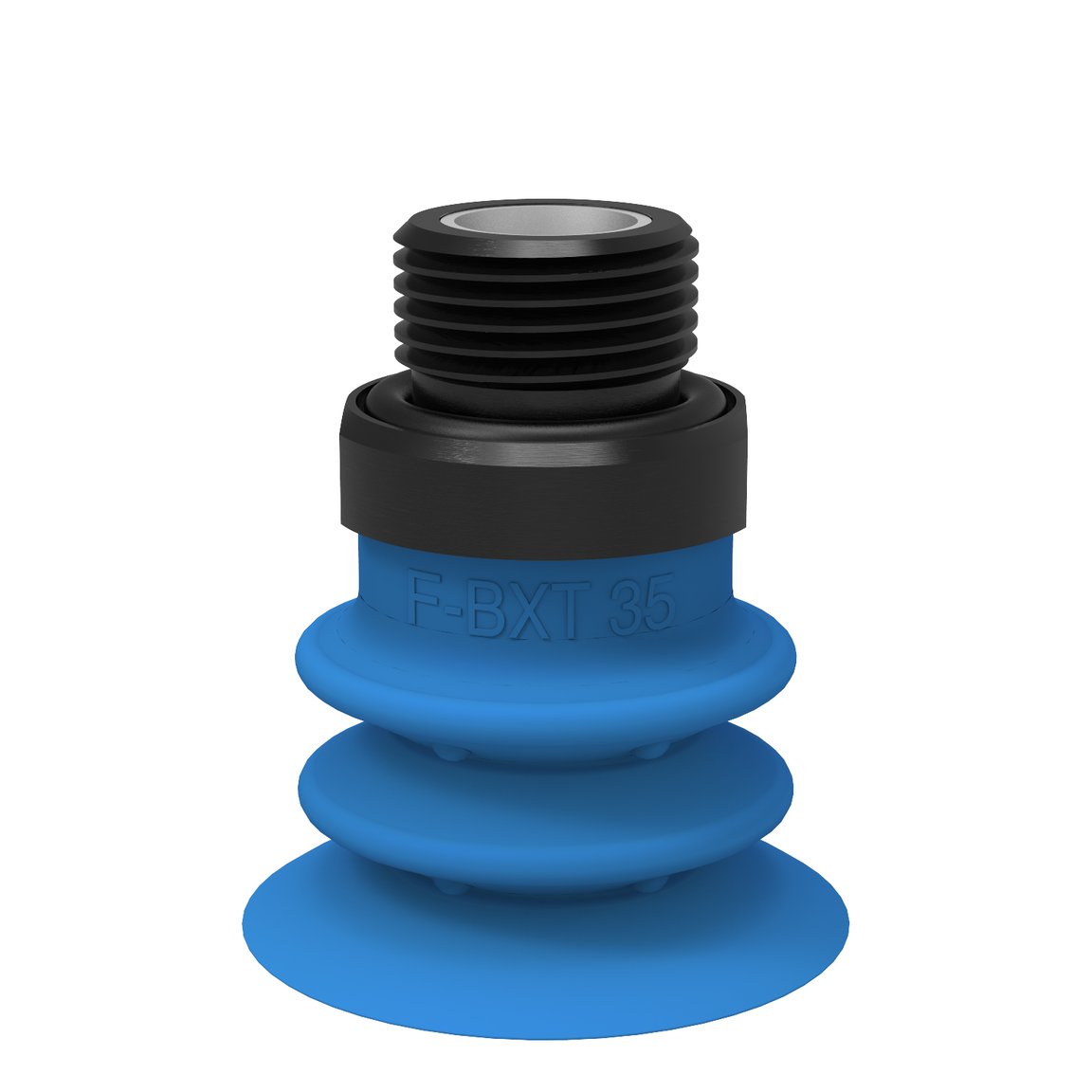

Suction cup F-BXT35 Silicone 3/8" NPT male, with dual flow control valve

Login or create account to access all our content and features!

Variants

  • FBXT35.DS40.04DE
  • FBXT35.DS40.04AE
  • FBXT35.DS40.04DC
  • FBXT35.DS40.04AC
  • FBXT35.DS40.04DF
  • FBXT35.DS40.04AF
  • FBXT35.DS40.04CA
  • FBXT35.DS40.04DA
  • FBXT35.DS40.04AG
  • FBXT35.DS40.04AA
  • FBXT35.DS40.04DD
  • FBXT35.DS40.04AD
  • FBXT35.DS40.04AI
  • FBXT35.DS40.04DB
  • FBXT35.DS40.04AB
  • FBXT35.DS40

Food & beverage

    Packaging

    • Direct food contact

    General

    Material
    Silicone (SIL)
    Characteristics
    Food contact materials (FDA & EU), detectable
    Leakage flow, max.
    0.28 scfm
    Suction cup model
    F-BXT
    Valve restriction
    0.035 in
    Volume
    0.37 in³
    Weight, min.
    0.55 oz

    Fitting

    Material
    ASTM 316L
    Fitting option
    Dual flow control valve
    Fitting size
    3/8"
    Fitting style
    Male
    Fitting type
    NPT-thread

    Dimension

    Height
    1.2 in
    Outer diameter, actuated
    1.4 in
    Outer diameter, min.
    1.38 in

    Performance - lifting forces

    F-BXT35

    2.95 -inHg
    1.28 lbf
    1.28 lbf
    5.91 -inHg
    1.87 lbf
    1.87 lbf
    11.81 -inHg
    2.59 lbf
    2.59 lbf

    Material

    Name
    Silicone (SIL detectable FCM)
    Color
    Blue
    Temperature
    -40 - 392 °F
    Hardness
    40 °Shore A

    Material resistance

    Alcohol
    Concentrated acids
    Ethanol
    n/a
    Hydrolysis
    Methanol
    n/a
    Oil
    Oxidation
    Gasoline
    Wear resistance

    Dimensional drawings

    This activity requires login. Please login or register to receive the full benefits of piab.com.

    CAD

    CAD

    Datasheet

    PDF

    Certificates

    PDF
    PDF
    PDF
    PDF

    White papers

    PDF
    PDF
