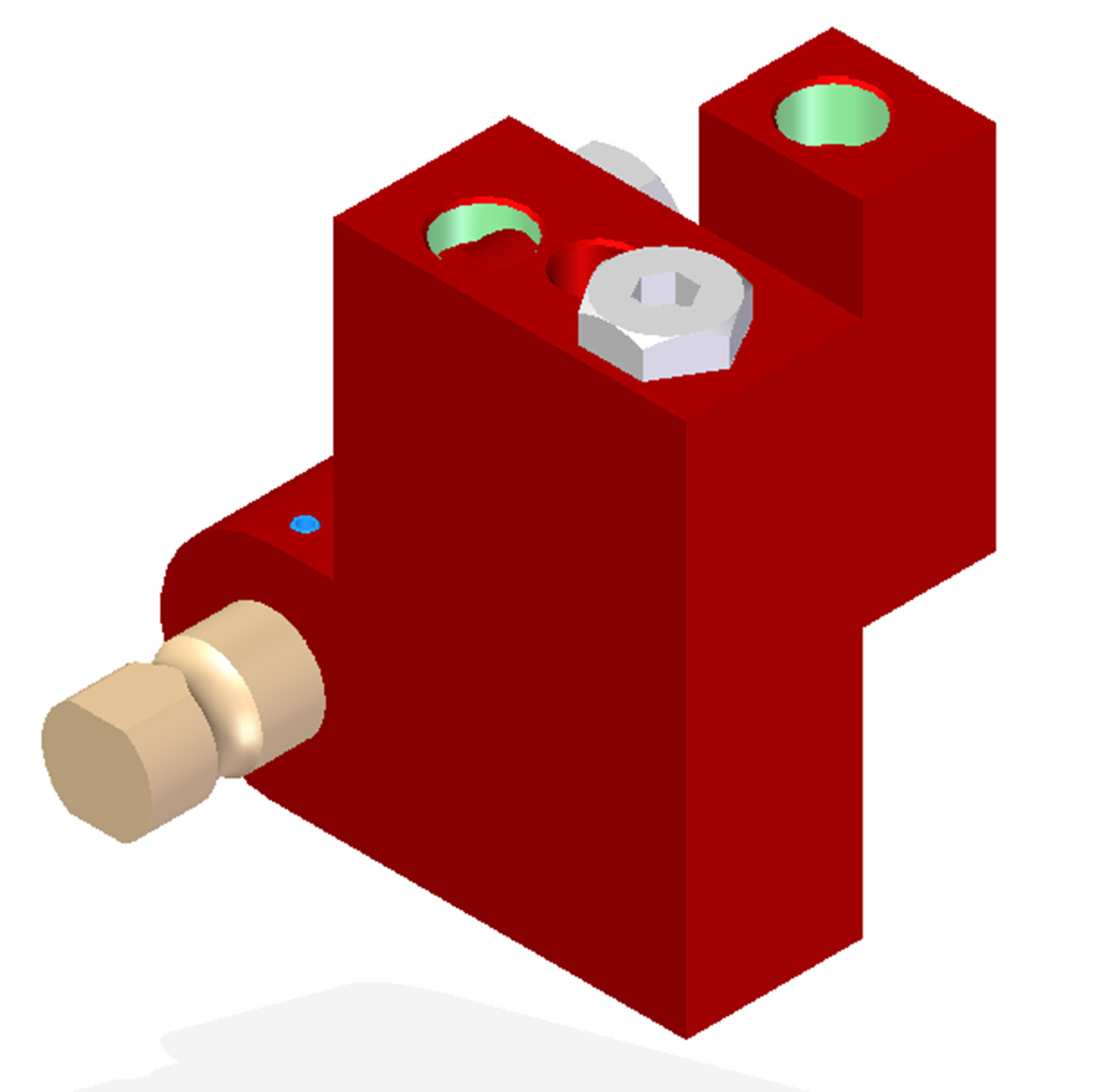

Vacuum Check Valve VT-1H, G threads, Lock pin 16, Left hand connection

Variants

•

  X1025

  Vacuum Check Valve VT-1H, G threads, Lock pin 16, Left hand connection
•

  X1042

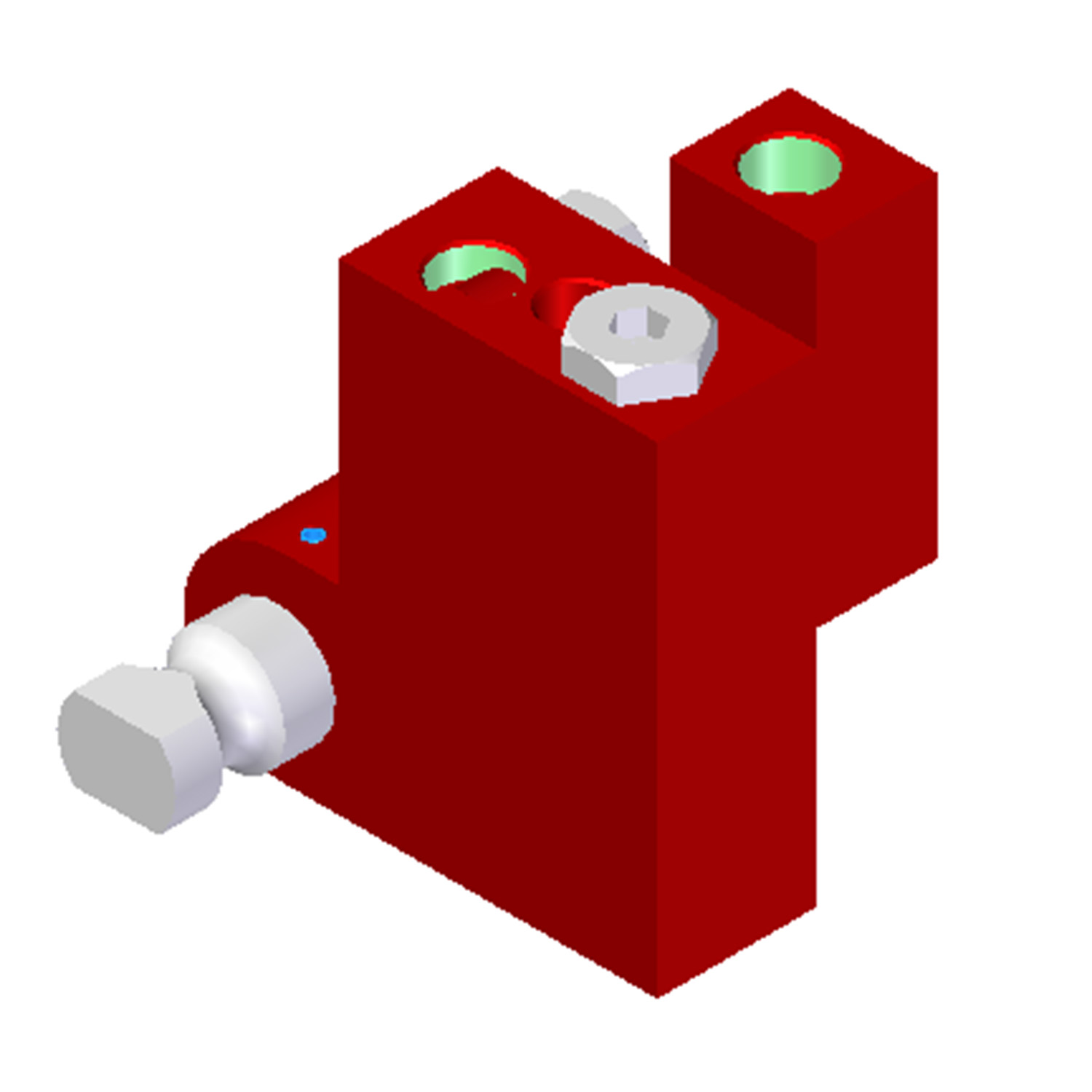

  Vacuum Check Valve VT-1H, G threads, Lock pin 19, Left hand connection
•

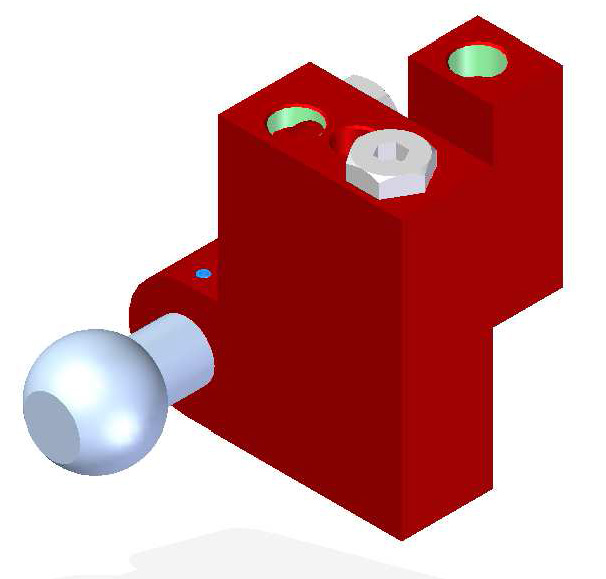

  X1020

  Vacuum Check Valve VT-1H, G threads, Ball joint, Left hand connection
•

  X1025RH

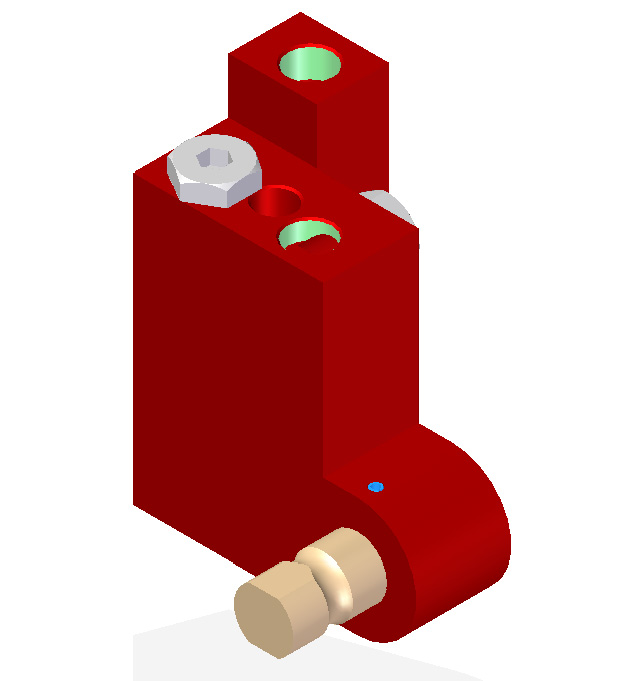

  Vacuum Check Valve VT-1H, G threads, Lock pin 16, Right hand connection
•

  X1042RH

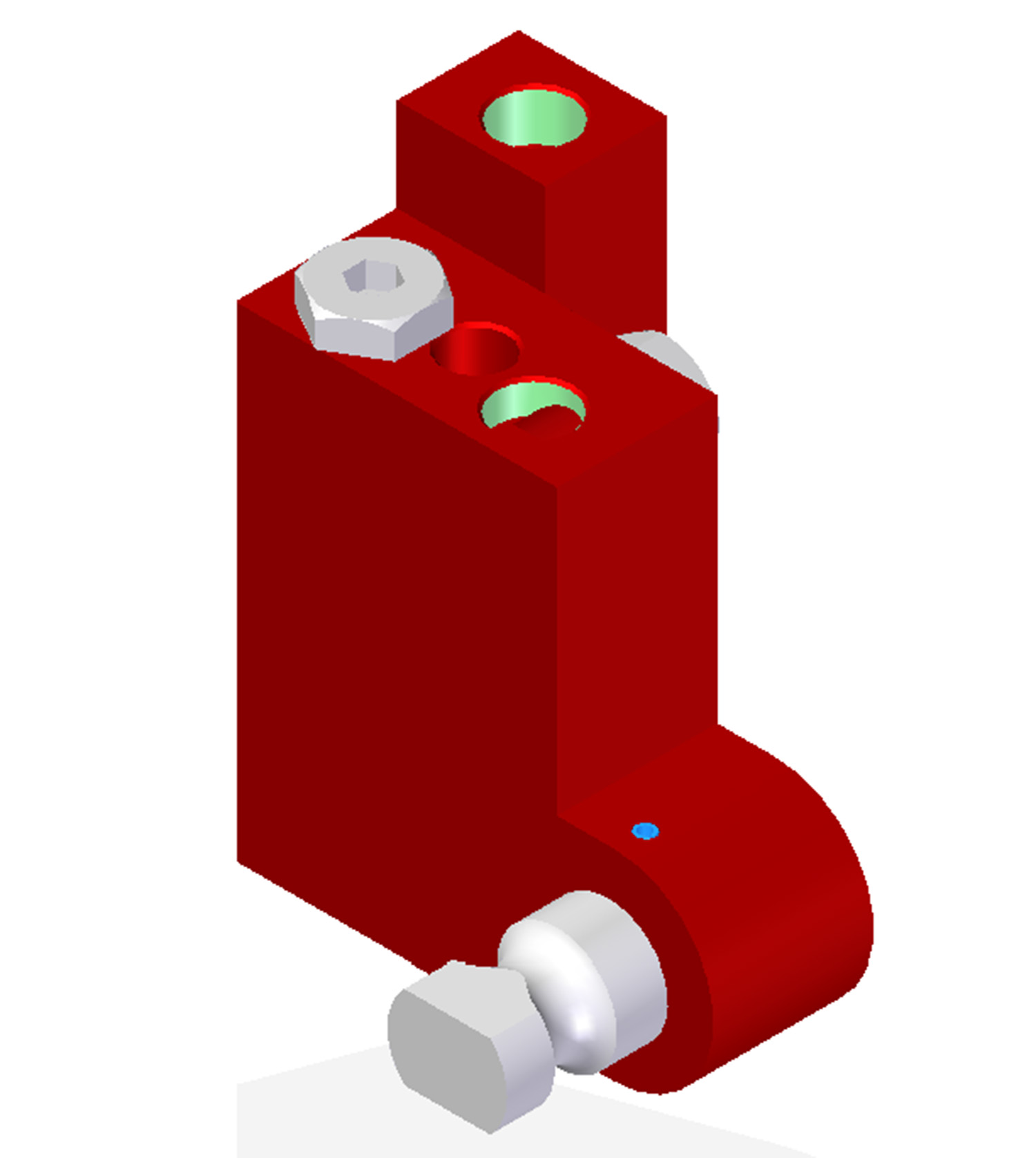

  Vacuum Check Valve VT-1H, G threads, Lock pin 19, Right hand connection
•

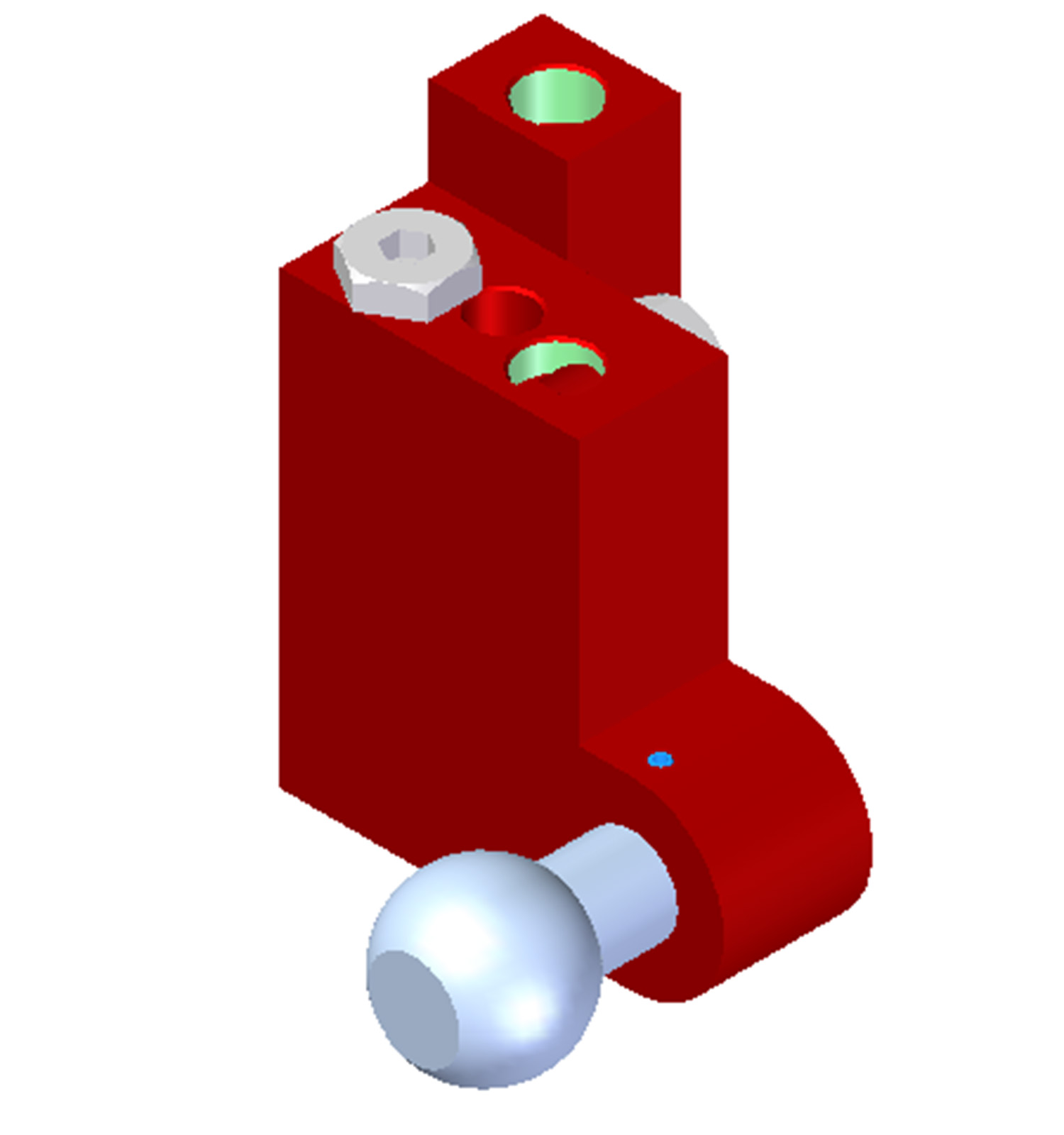

  X1020RH

  Vacuum Check Valve VT-1H, G threads, Ball joint, Right hand connection
•

  X6015LH

  Vacuum Check Valve VT-1H with level compensator, G threads, Lock pin 16, Left hand connection
•

  X6024LH

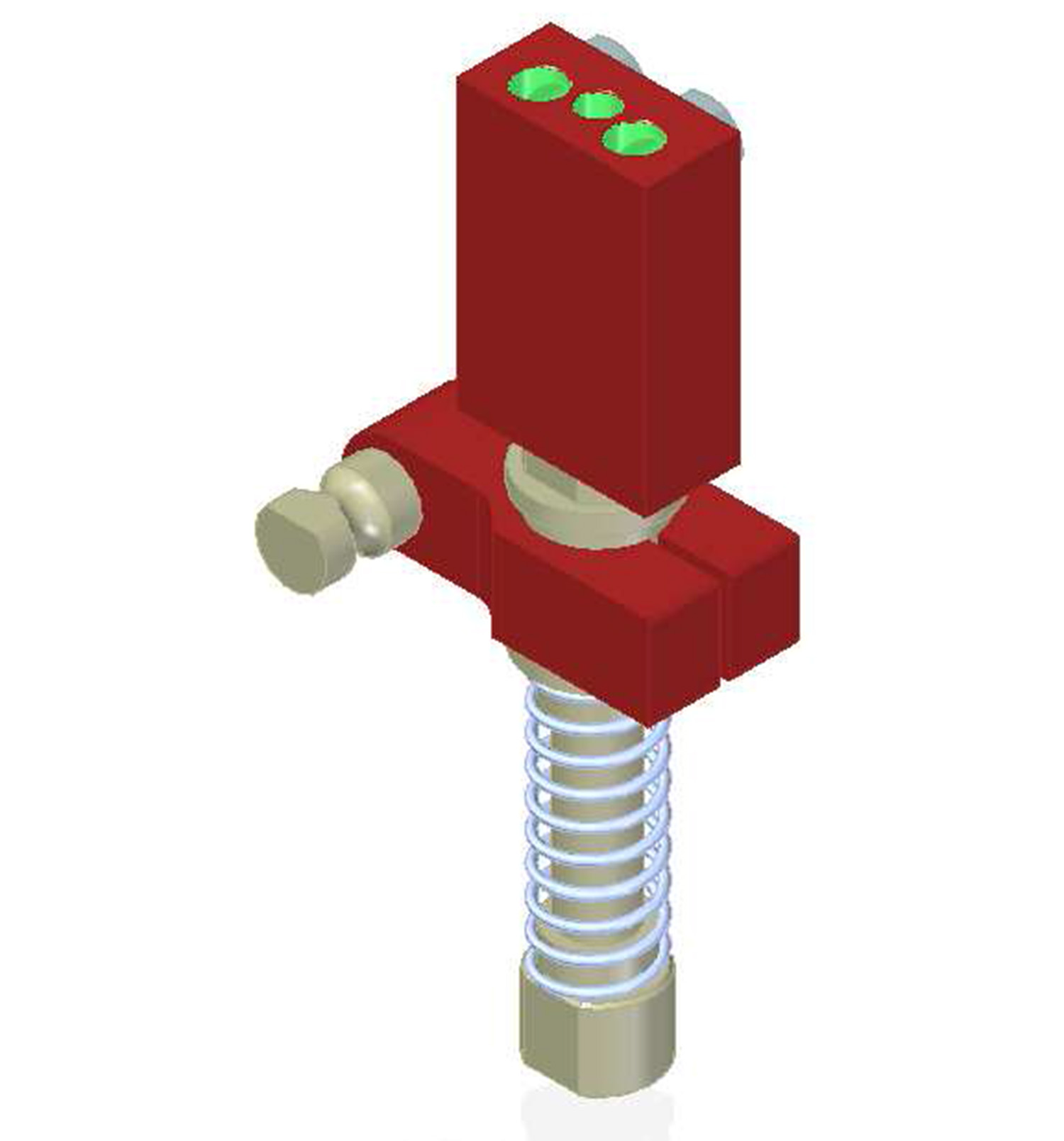

  Vacuum Check Valve VT-1H with level compensator, G threads, Lock pin 19, Left hand connection
•

  X6023LH

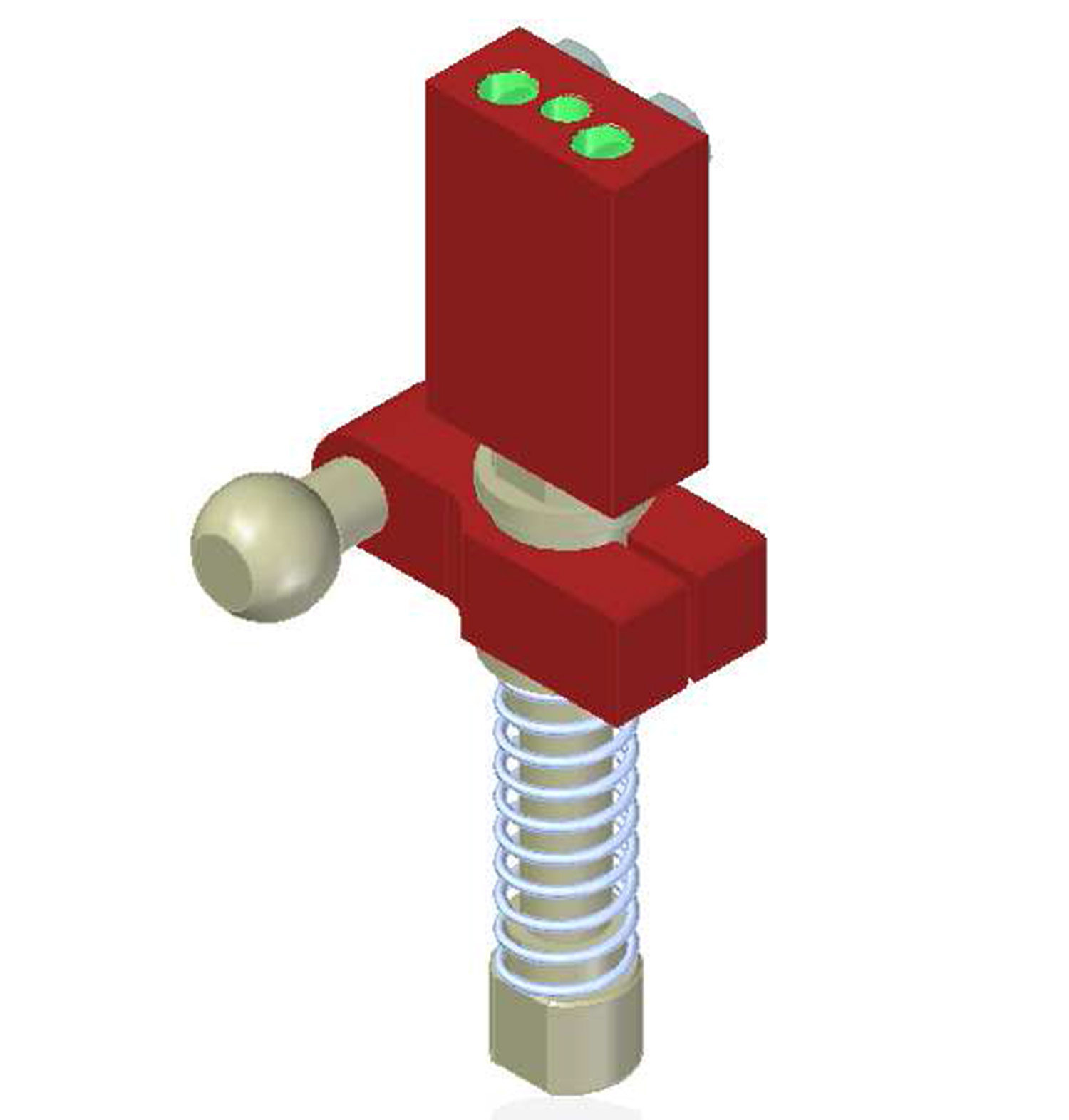

  Vacuum Check Valve VT-1H with level compensator, G threads, Ball joint, Left hand connection
•

  X6015RH

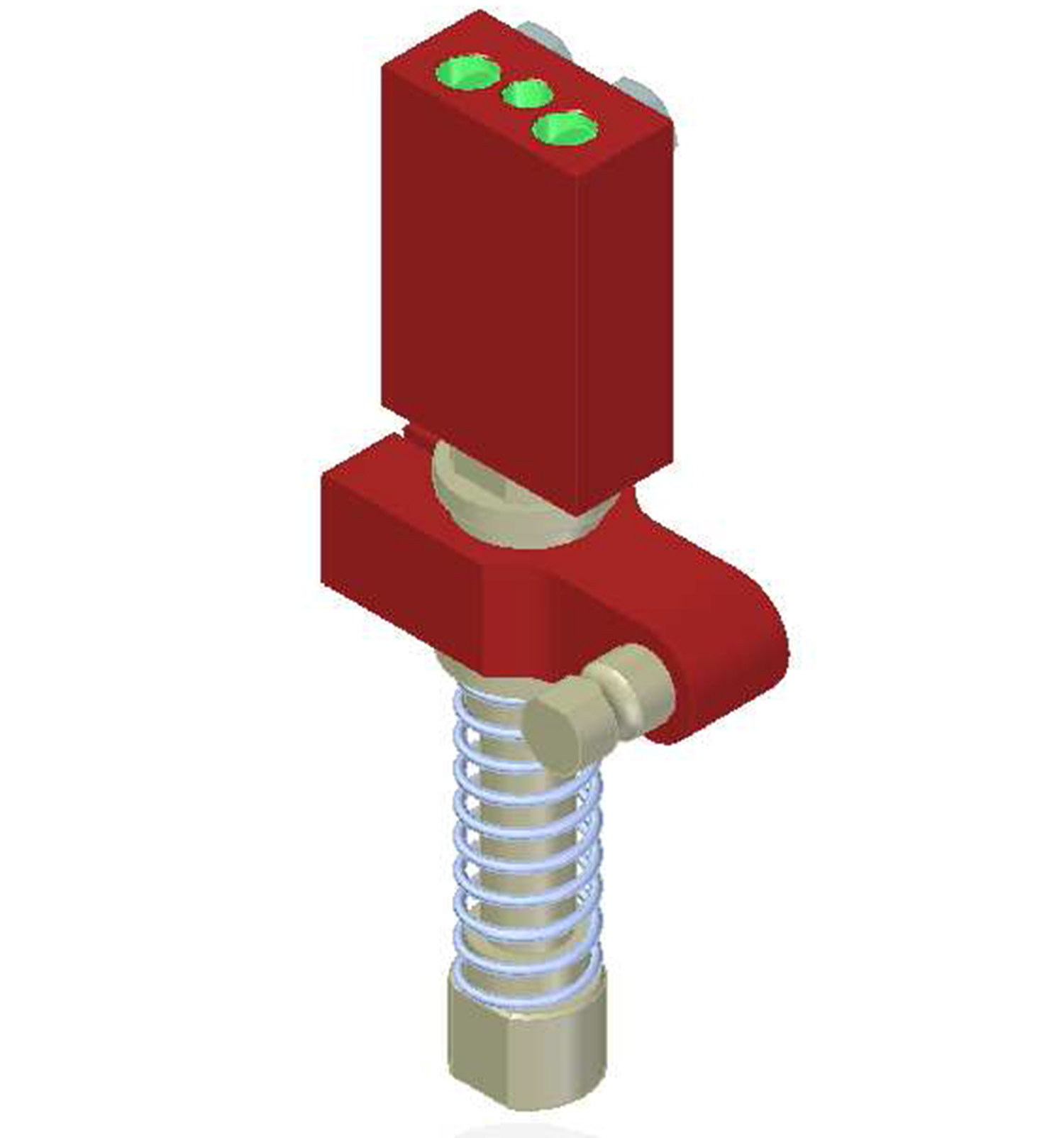

  Vacuum Check Valve VT-1H with level compensator, G threads, Lock pin 16, Right hand connection
•

  X6024RH

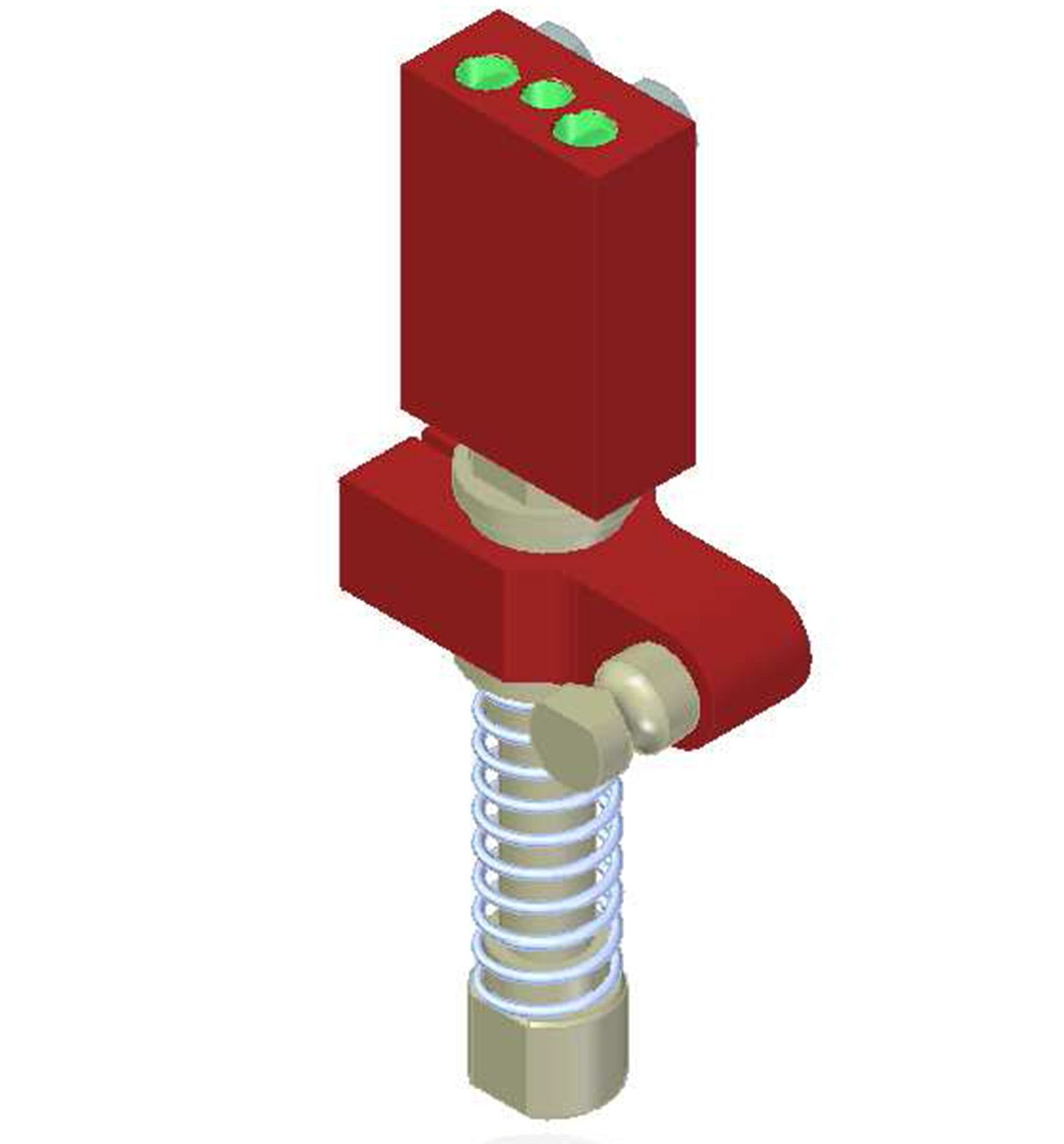

  Vacuum Check Valve VT-1H with level compensator, G threads, Lock pin 19, Right hand connection
•

  X6023RH

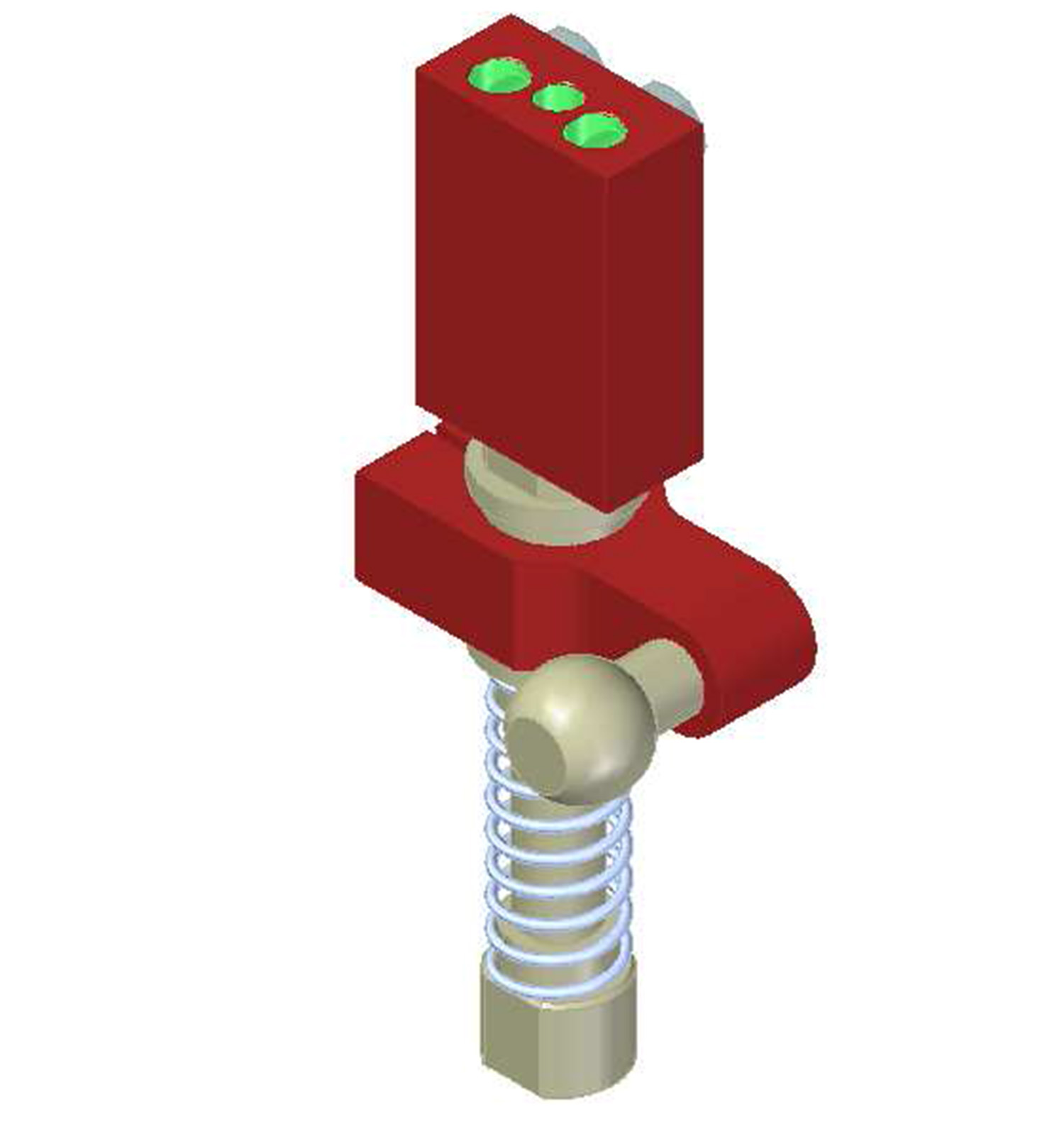

  Vacuum Check Valve VT-1H with level compensator, G threads, Ball joint, Right hand connection
•

  1025

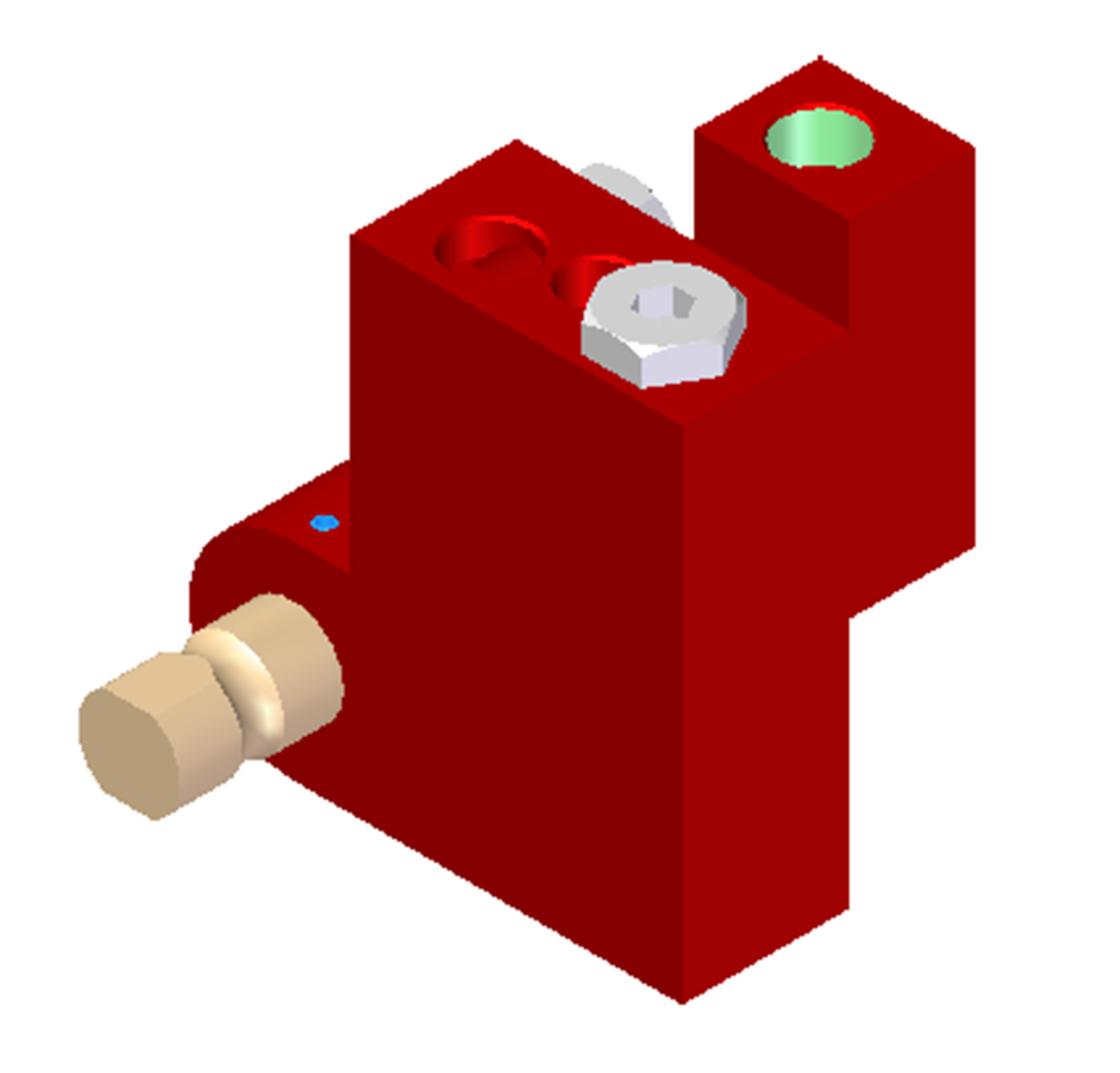

  Vacuum Check Valve VT-1H, NPT threads, Lock pin 16, Left hand connection
  Compare
•

  1042

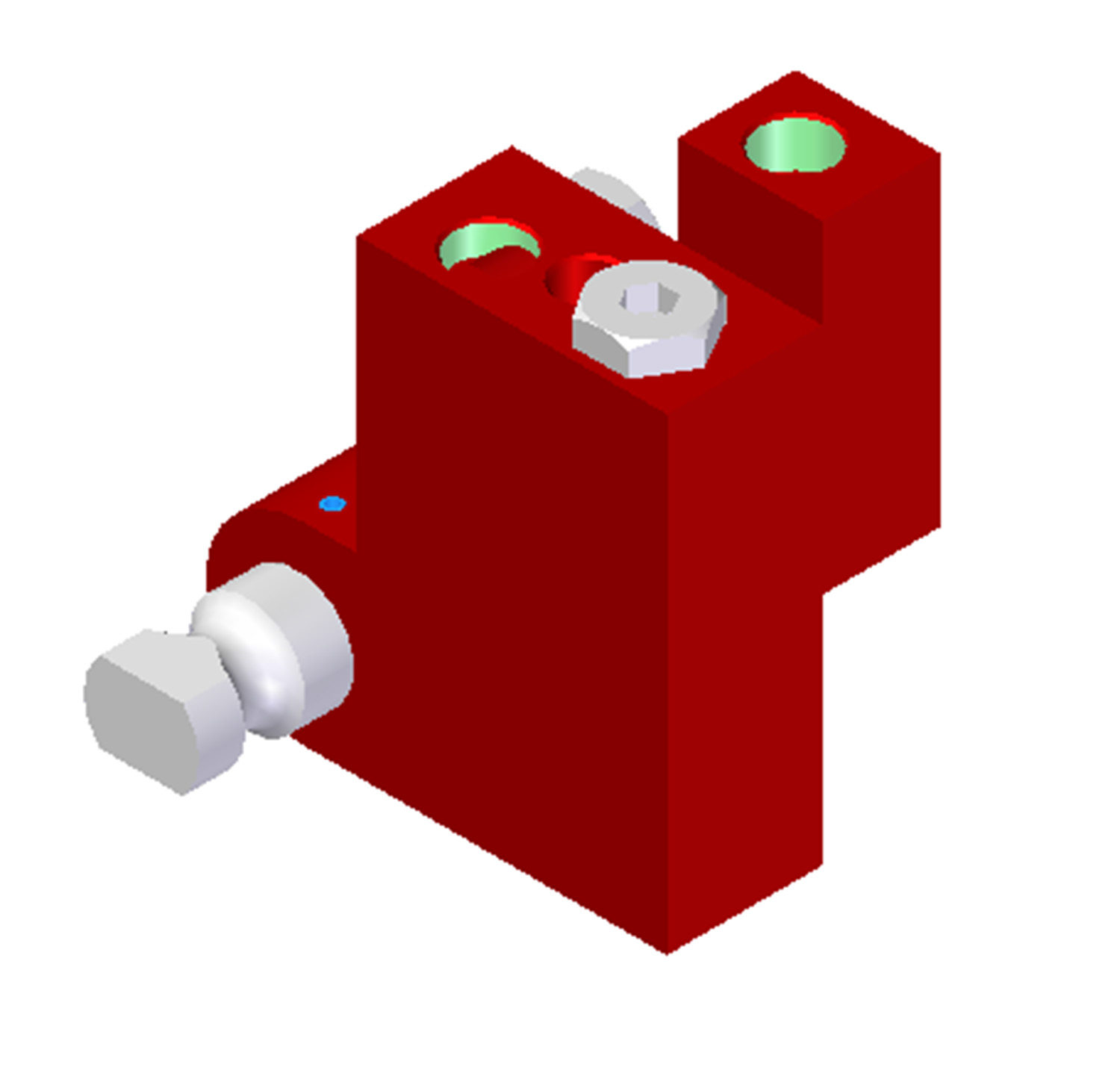

  Vacuum Check Valve VT-1H, NPT threads, Lock pin 19, Left hand connection
•

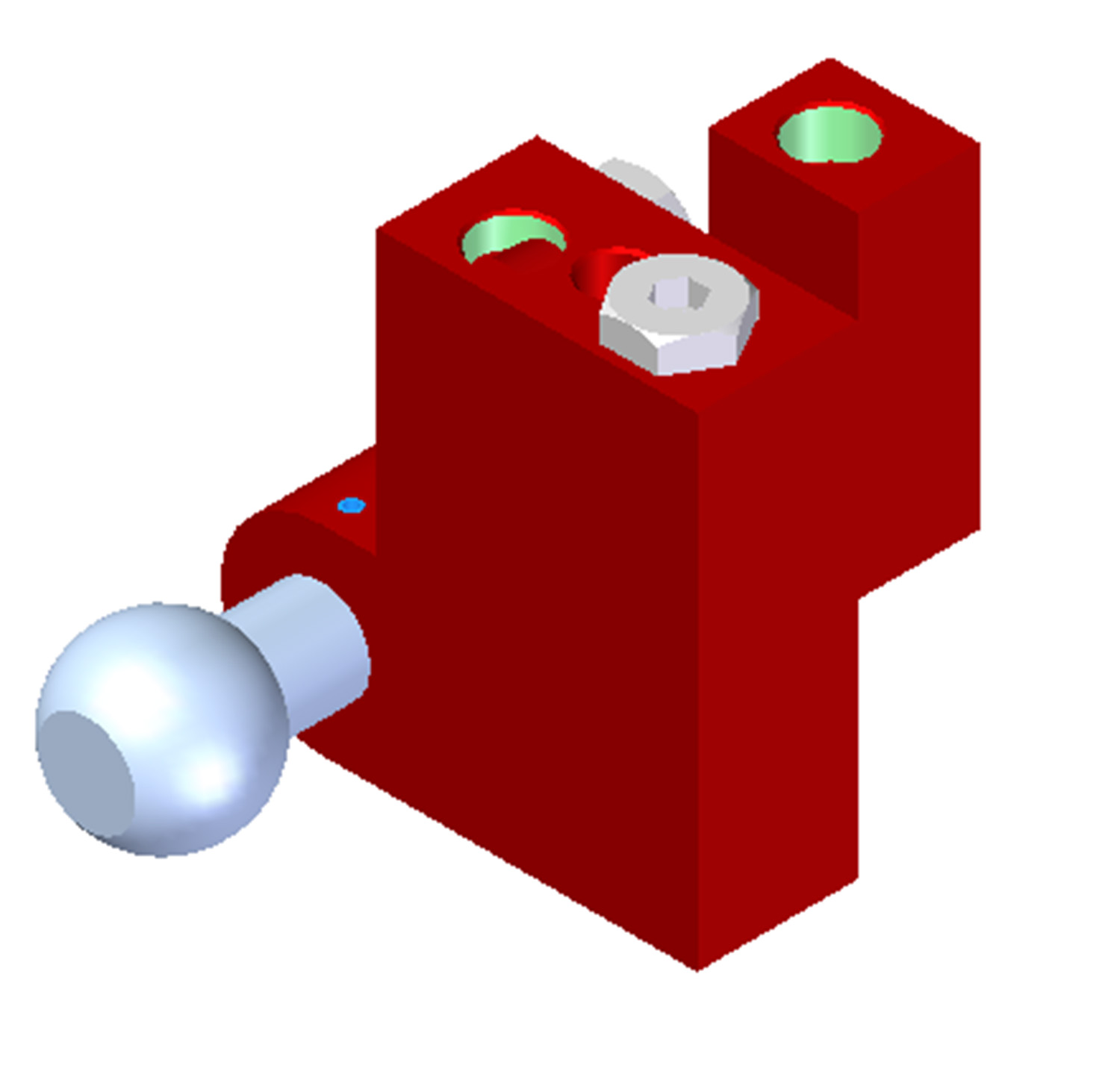

  1020

  Vacuum Check Valve VT-1H, NPT threads, Ball joint, Left hand connection
•

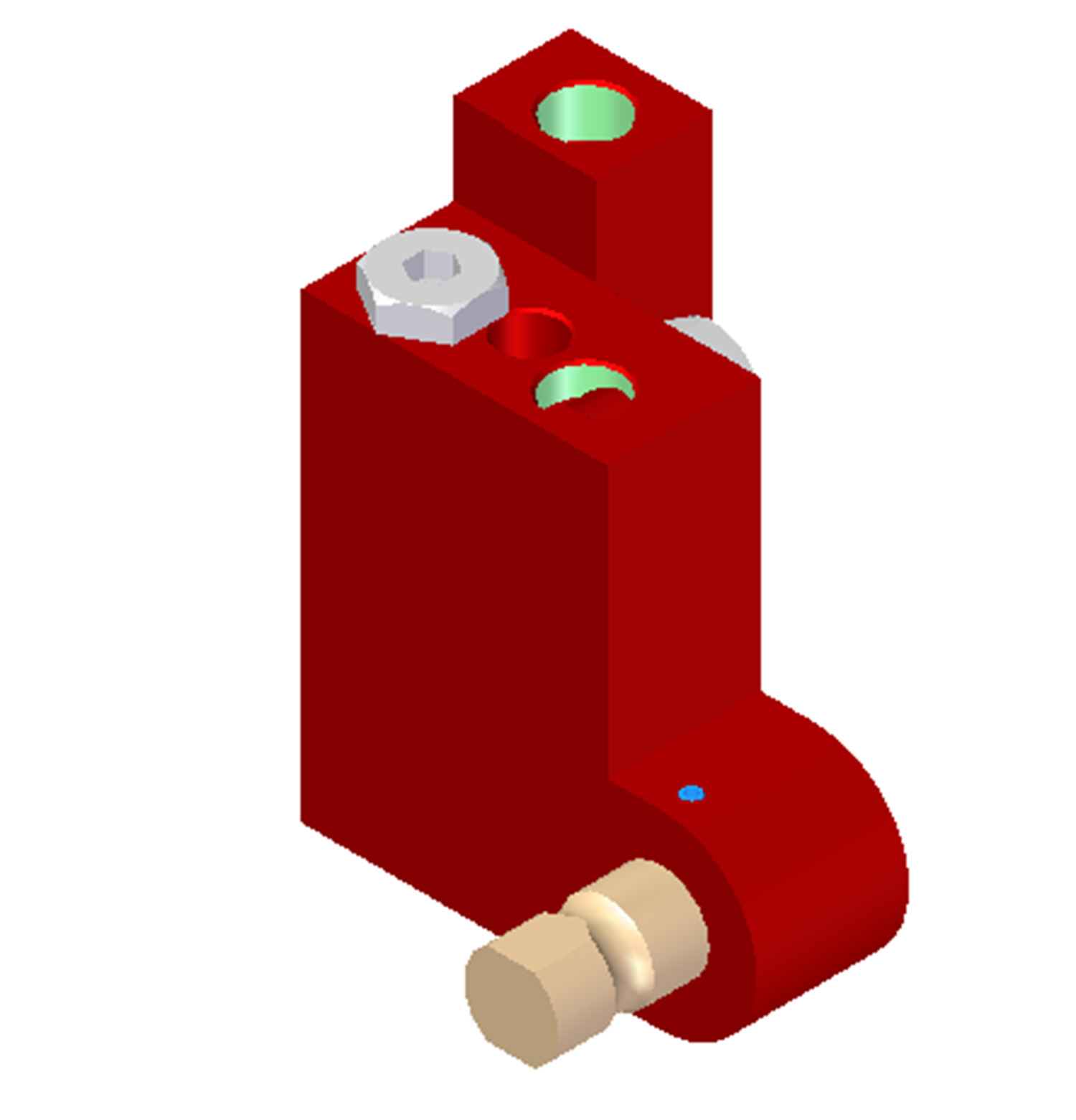

  1025RH

  Vacuum Check Valve VT-1H, NPT threads, Lock pin 16, Right hand connection
•

  1042RH

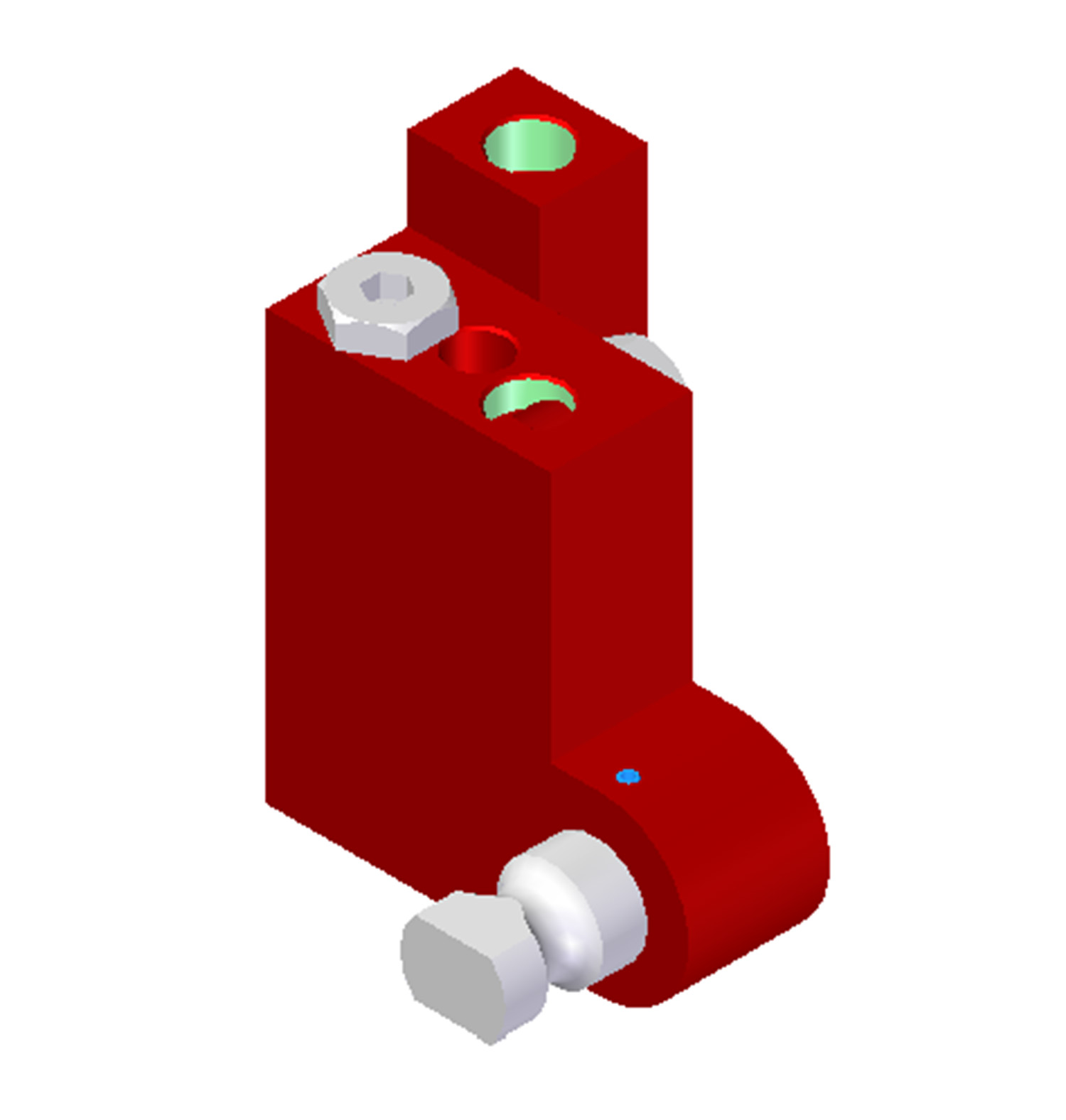

  Vacuum Check Valve VT-1H, NPT threads, Lock pin 19, Right hand connection
•

  1020RH

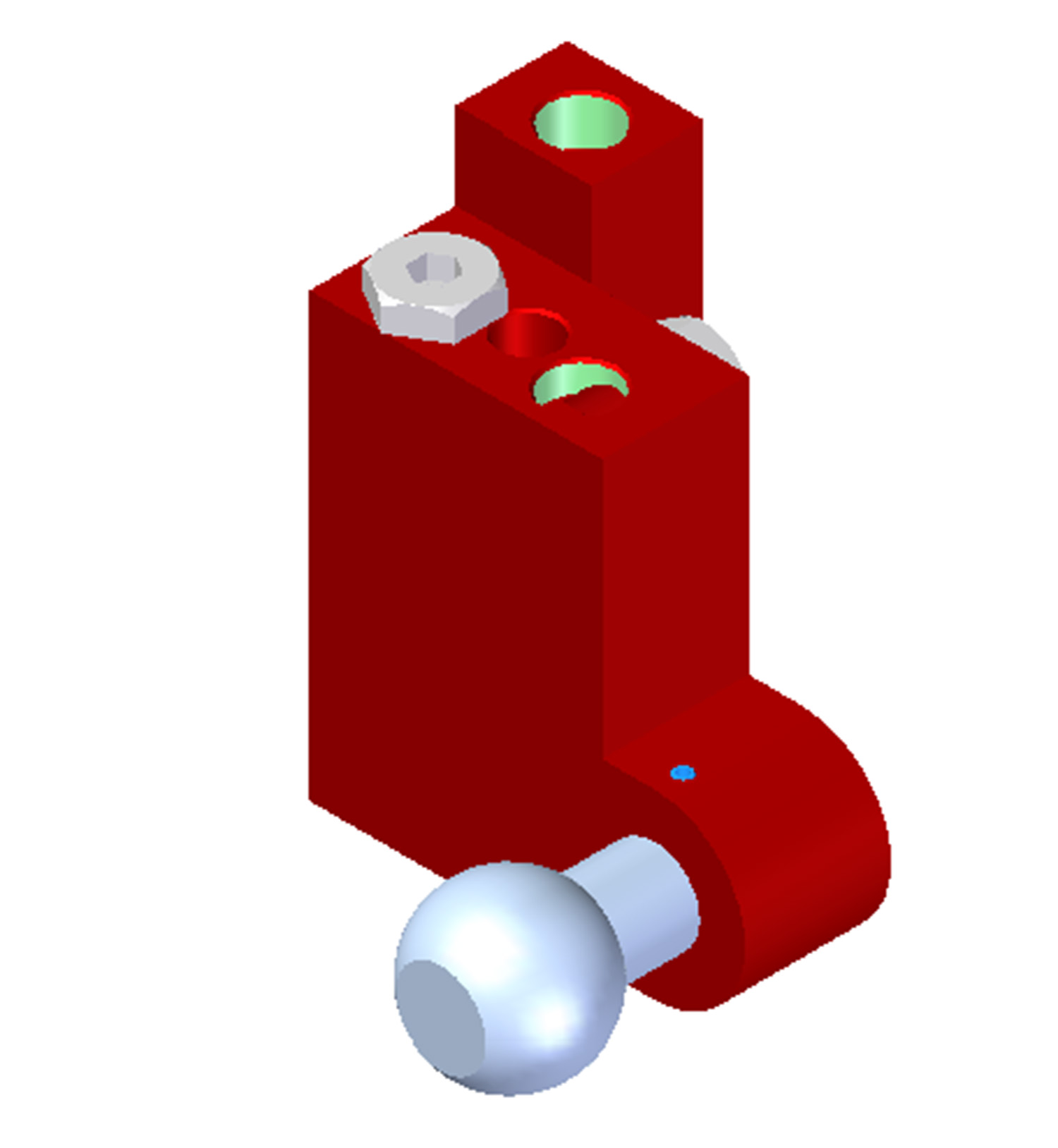

  Vacuum Check Valve VT-1H, NPT threads, Ball joint, Right hand connection
•

  6015

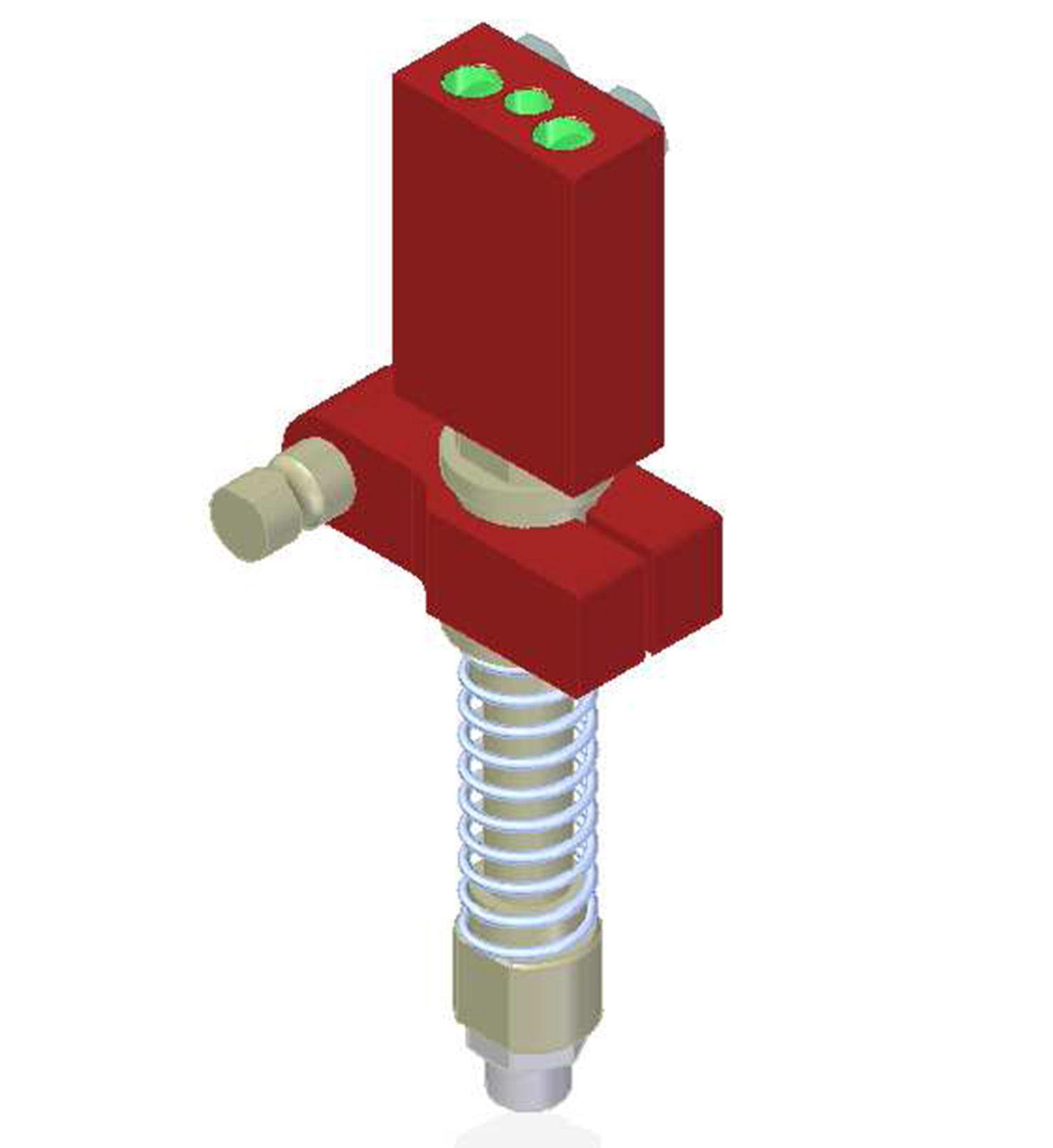

  Vacuum Check Valve VT-1H with level compensator, NPT threads, Lock pin 16, Left hand connection
•

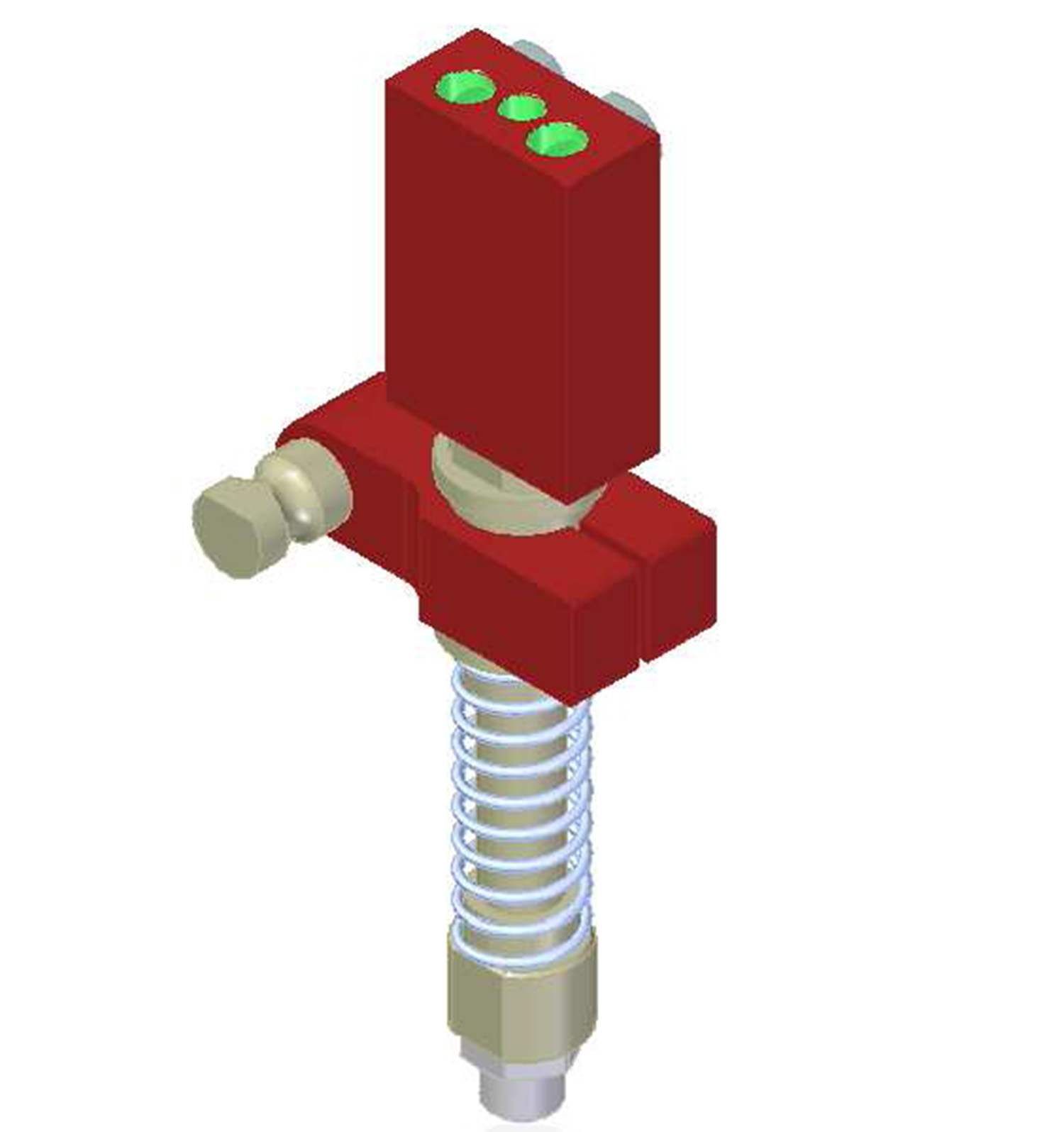

  6024

  Vacuum Check Valve VT-1H with level compensator, NPT threads, Lock pin 19, Left hand connection
•

  6023

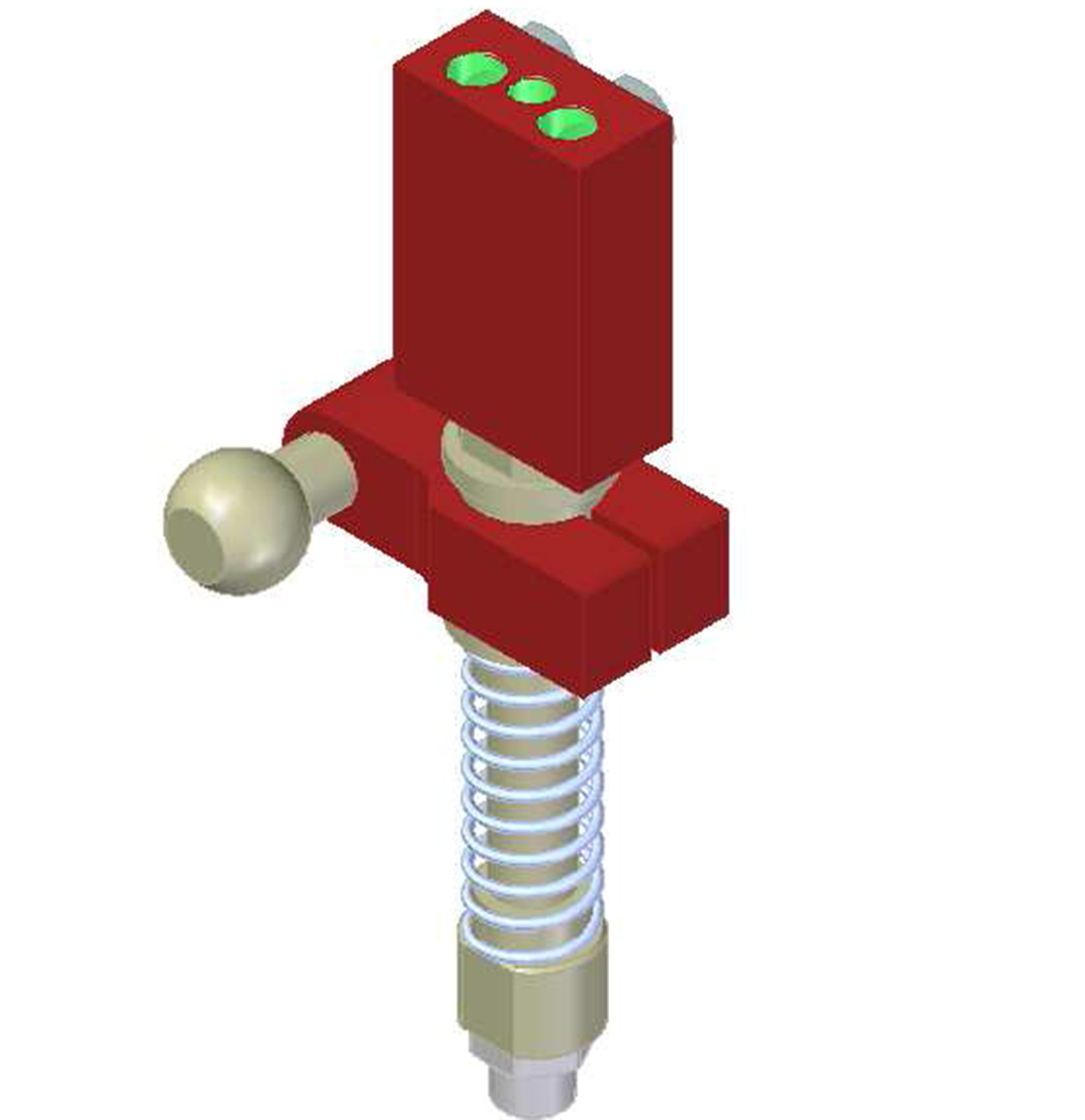

  Vacuum Check Valve VT-1H with level compensator, NPT threads, Ball joint, Left hand connection
•

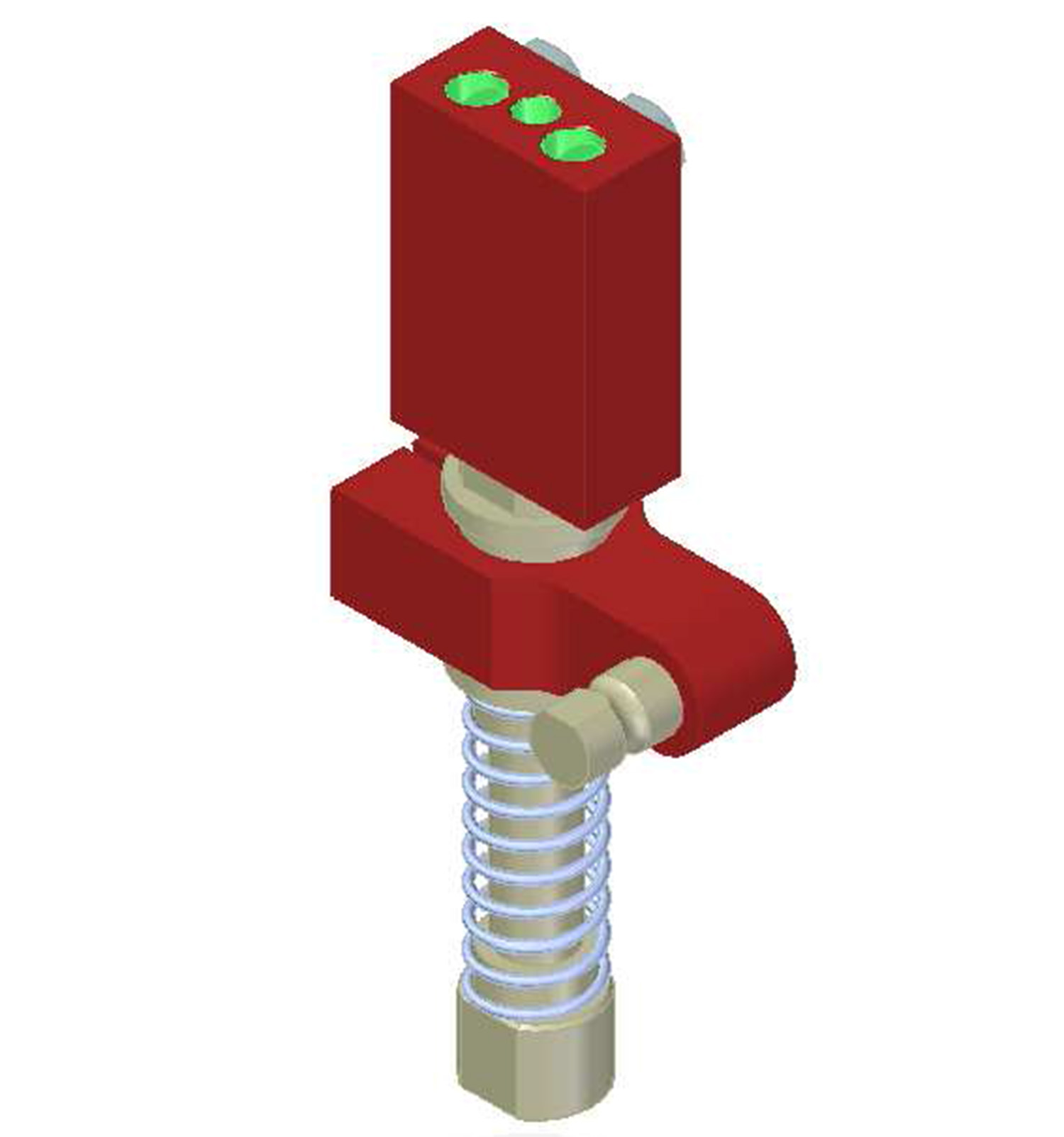

  6015RH

  Vacuum Check Valve VT-1H with level compensator, NPT threads, Lock pin 16, Right hand connection
•

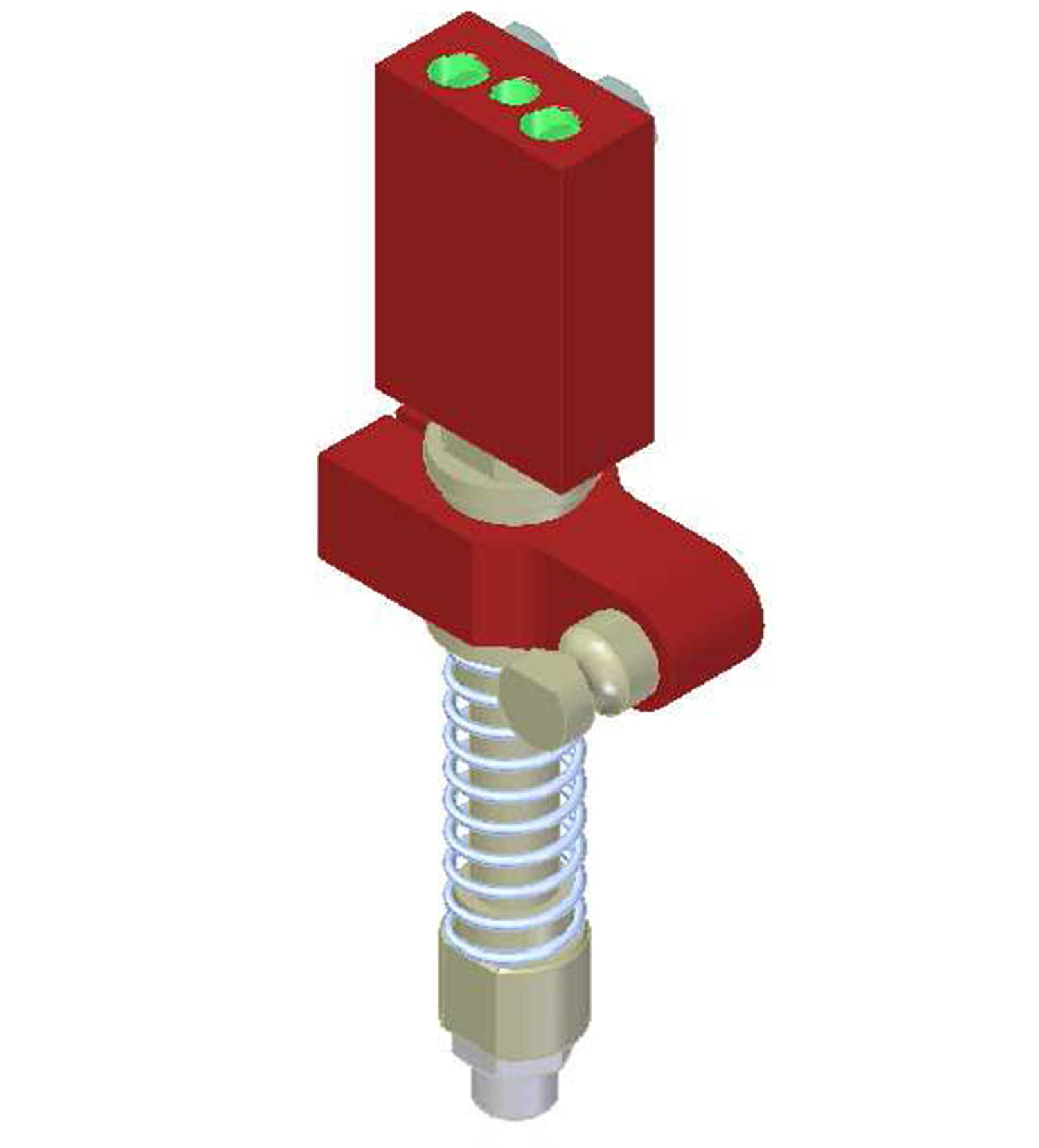

  6024RH

  Vacuum Check Valve VT-1H with level compensator, NPT threads, Lock pin 19, Right hand connection
•

  6023RH

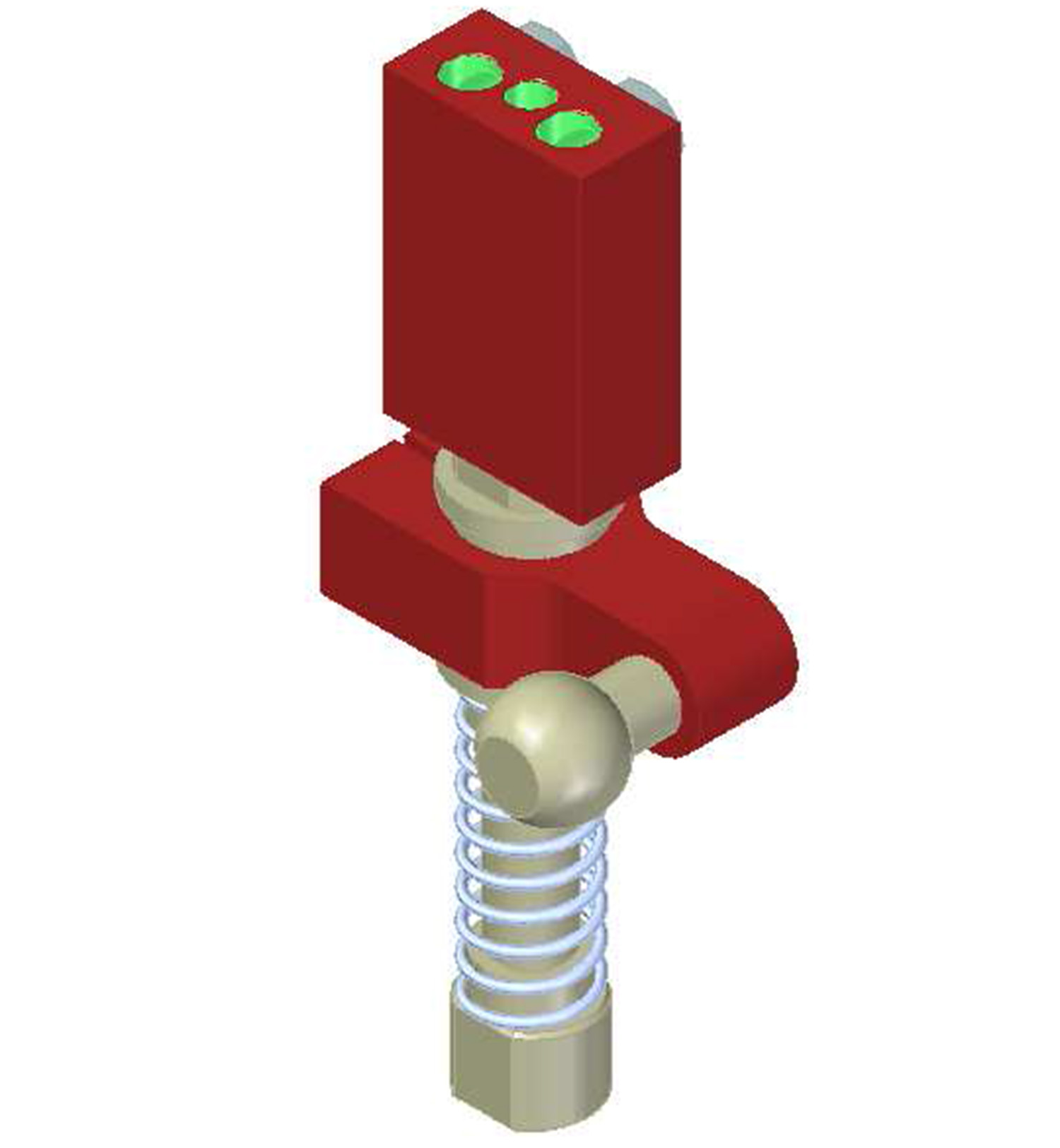

  Vacuum Check Valve VT-1H with level compensator, NPT threads, Ball joint, Right hand connection

Features

• Check valve that traps vacuum in sealed applications for safe operation.
• Built-in blow off check valve for fast release of object.
• Available in lock pin 16, 19 or ball joint mountings, industry standard.
• Available with level compensator to compensate for differences in level of object.
• Recommend using 4mm (5/32”) tubing and no more than 80 psi for blow off.
• Recommend using 6mm (1/4”) tubing and no more than 80 psi for vacuum.
• Equal line lengths from common manifold should be used for both blow-off and vacuum.
• Maximum of (12) units per tool.
