Item number: 0213024
5 Variants

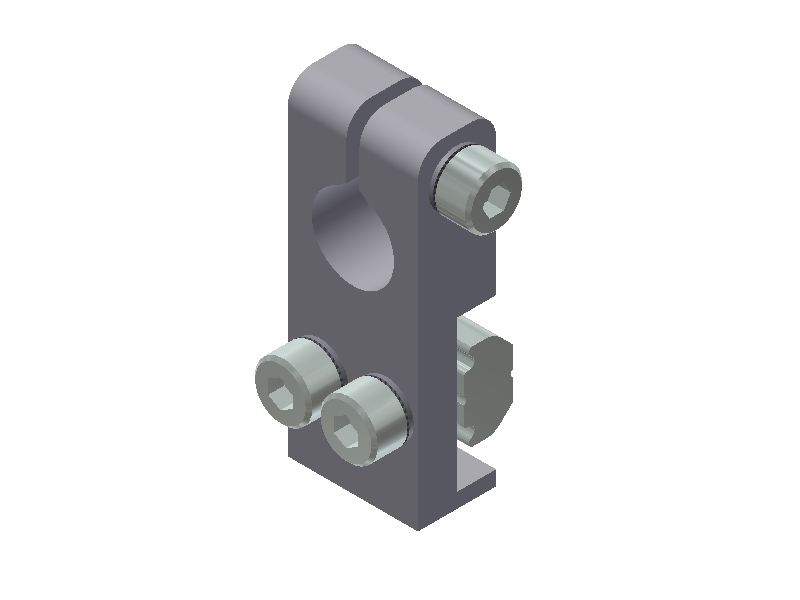

WST 10 L Angle Clamp
Login or create account to access all our content and features!
Variants
- 0213024
- 0213025
- 0213026
- 0213027
- 0213028
Features
- Allows for top mounting of gripper arms or holders to frame profile.
- Adjustable along the channel of the frame profile.
- Hex head screws available upon request.
Dimensions DWG
Diameter
10 mm
Height
16 mm
Height
40 mm
Height
18 mm
Length
10 mm
Length
16 mm
Length
16 mm
Length
40 mm
Length
10 mm
Length
14 mm
Width
18 mm
General
Weight
23 - 23 g
