Item number: 0213191
15 Variants

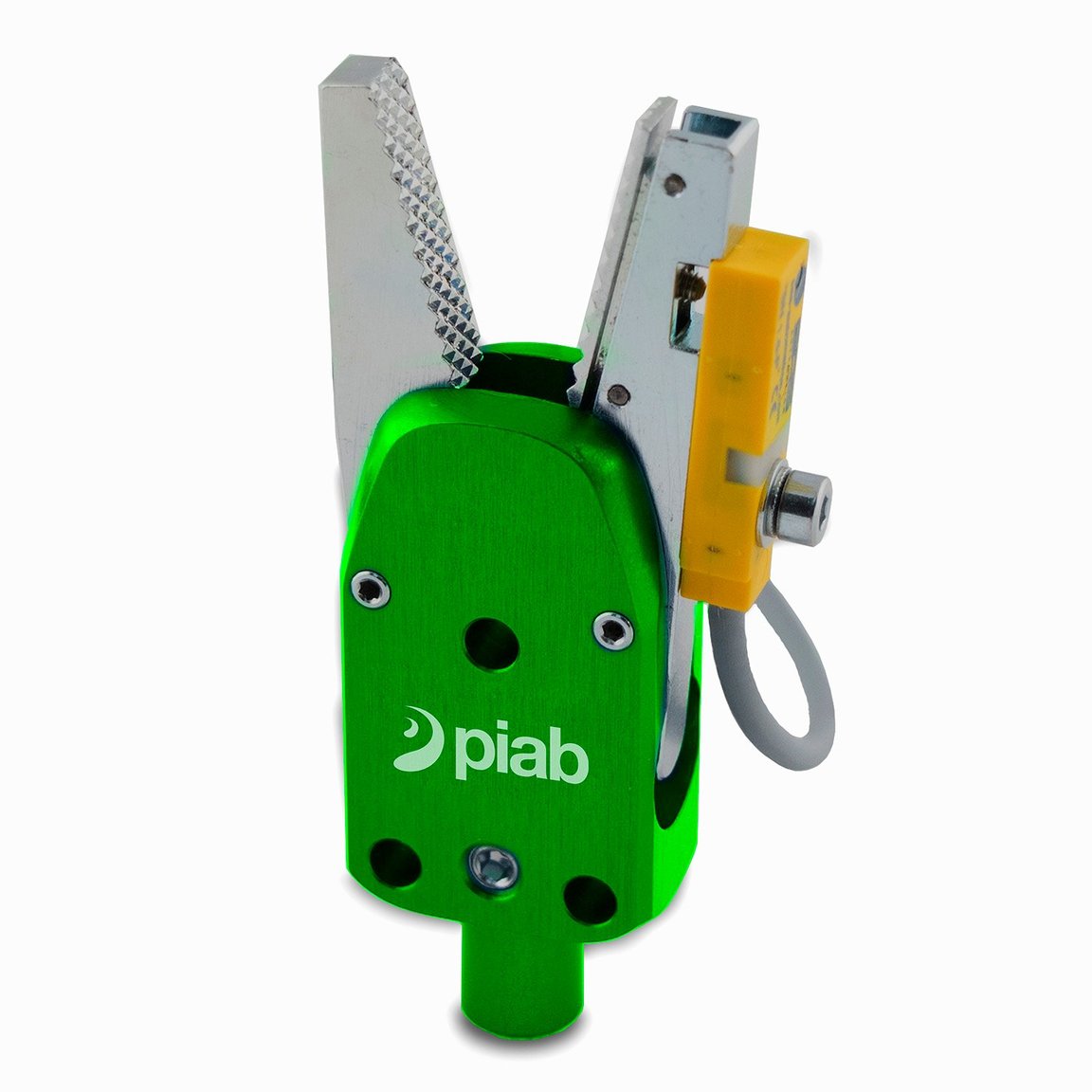

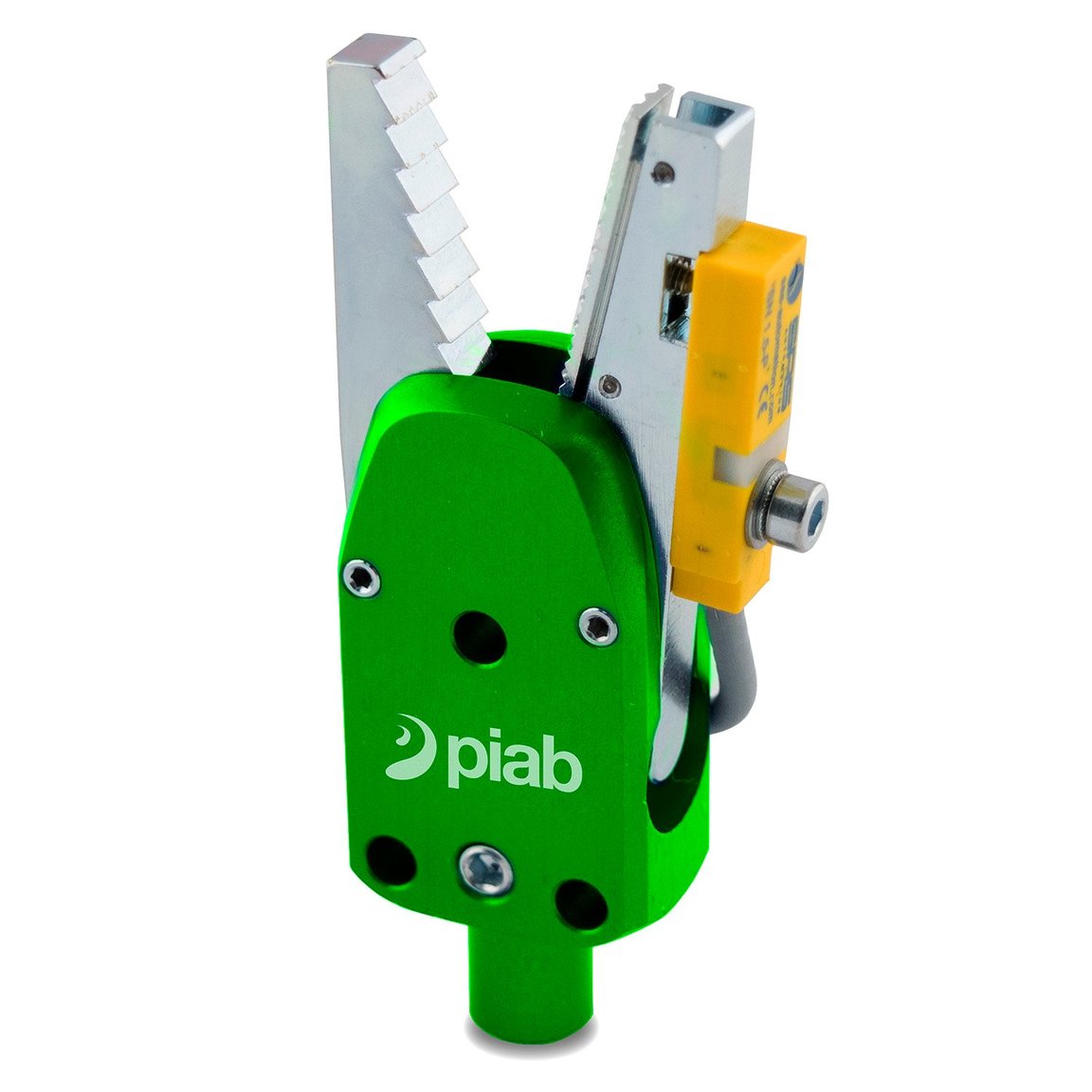

GRZ 10-12 Part/Sprue Gripper
Login or create account to access all our content and features!
Variants
0213191

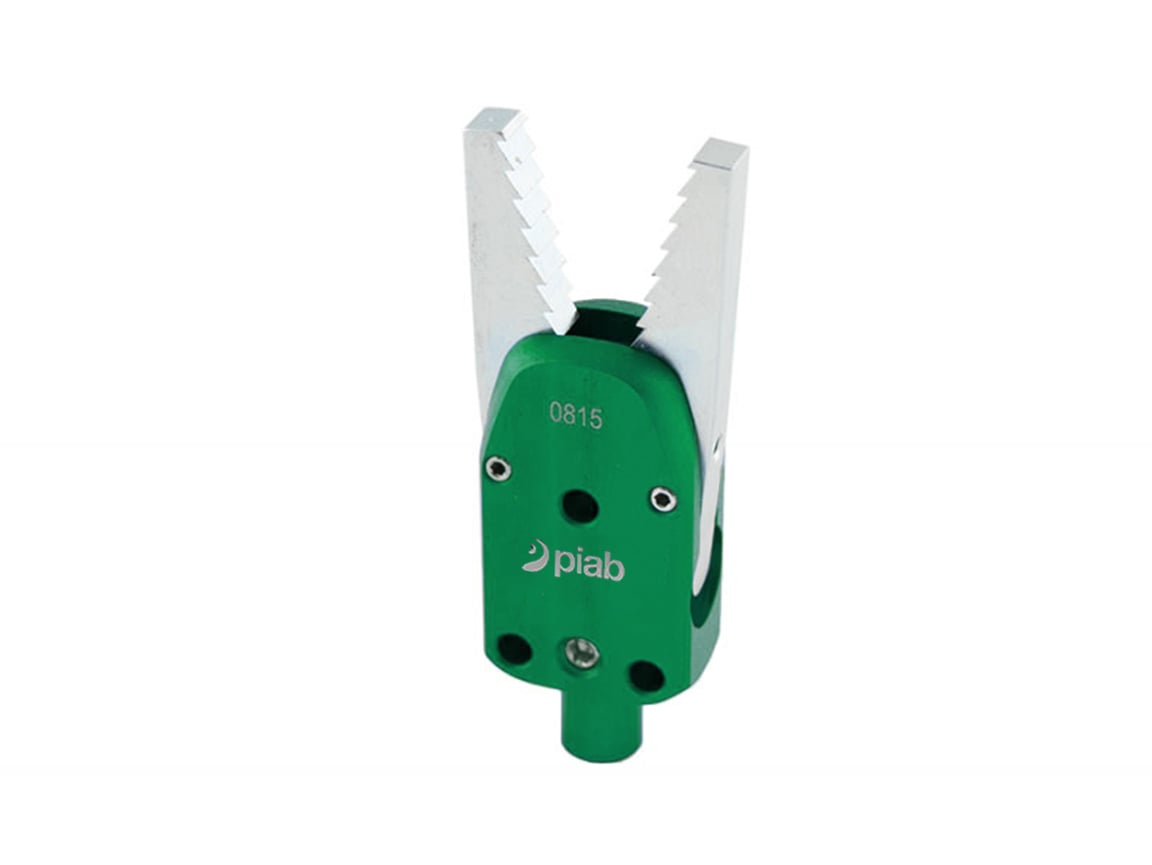

0213197

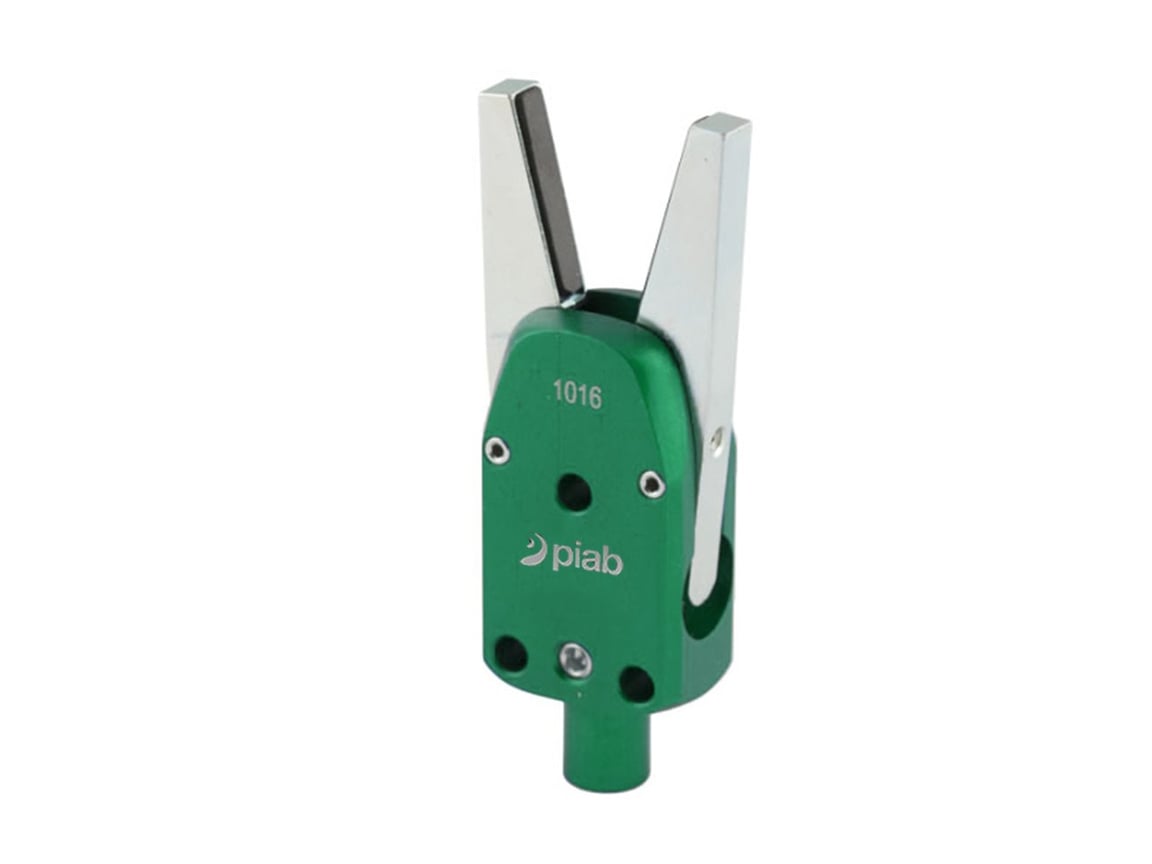

0213203
0213397- 0213398
- 0213399
- 0213418
0213742- 0213743
- 0213744
- 0213745
0213754- 0213755
- 0213765
- 0213766
Features
- Single action spring return function.
- Fully compatible with SAS's modular EOAT/gripper system.
- Anodized Finish.
- Requirement – Maximum air pressure 87 psi (6 bar).
- Requirement – filtered dry air.
Dimensions DWG
Diameter
10 mm
Diameter
4.2 mm
Height
6 mm
Height
16 mm
Length
67 mm
Length
28 mm
Length
12 mm
Length
4 mm
Length
25 mm
Thread
M5 in
Width
16 mm
Width
25 mm
Width
21 mm
Width
6 mm
Width
16 mm
EOAT (End Of Arm Tooling)
Force
14.5 N
General
Weight, max.
0 g
