Item number: 0213192
20 Variants

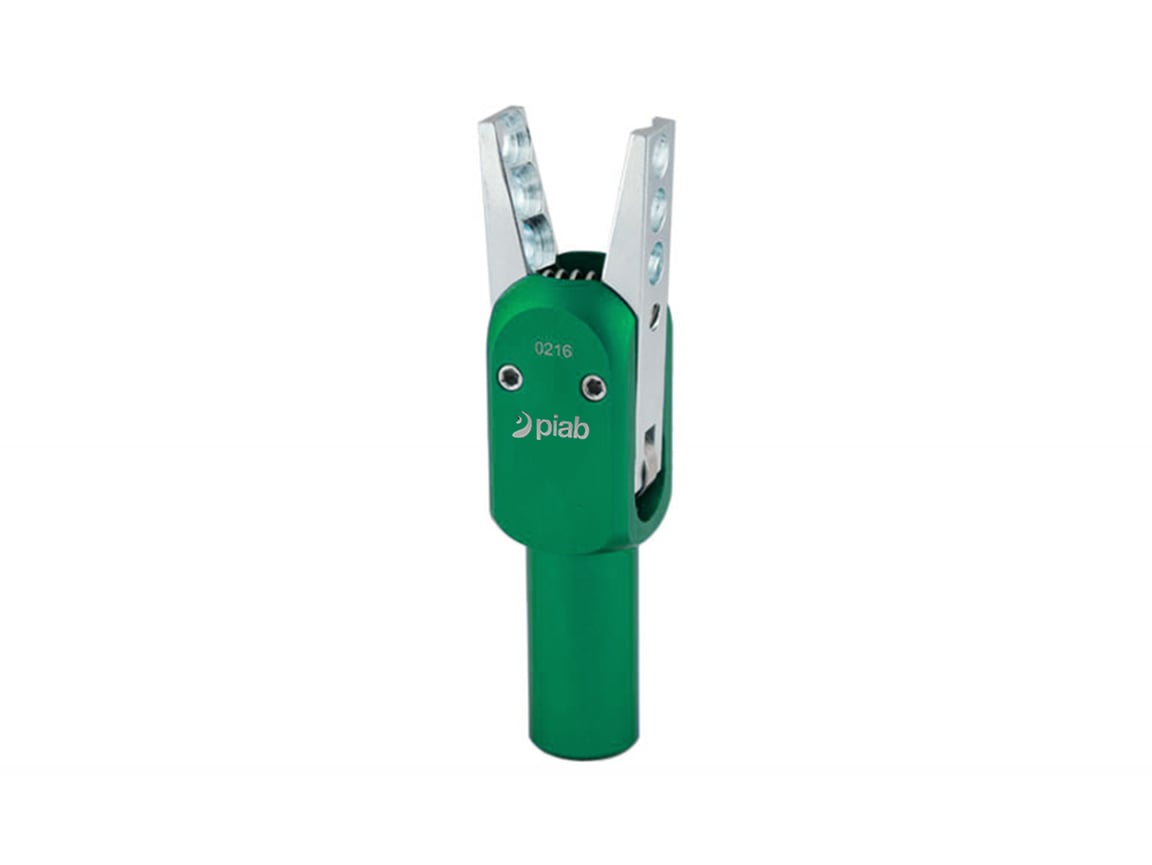

GRZ 20-16 Part/Sprue Plier
Login or create account to access all our content and features!
Variants
0213192
0213198
0213204
0213209
0213437- 0213462
- 0213463
- 0213465
0213773- 0213992
- 0213771
- 0213772
0213769- 0213770
- 0213767
- 0213768
0213748- 0213749
- 0213746
- 0213747
Features
- The Standard-Type jaws come with a knurled pattern on the jaw-face to better grip the sprue / part.
- Single action spring return function.
- Fully compatible with SAS's modular EOAT/gripper system.
- Anodized Finish.
- Requirement – Maximum air pressure 87 psi (6 bar).
- Requirement – filtered dry air.
Dimensions DWG
Diameter
20 mm
Height
13 mm
Height
25 mm
Length
73 mm
Length
24 mm
Length
24 mm
Thread
G 1/8 in
Width
25 mm
Width
32 mm
Width
23 mm
Width
13 mm
Width
25 mm
EOAT (End Of Arm Tooling)
Force
65 N
General
Weight
141 - 141 g
