Item number: 0115314
3 Variants

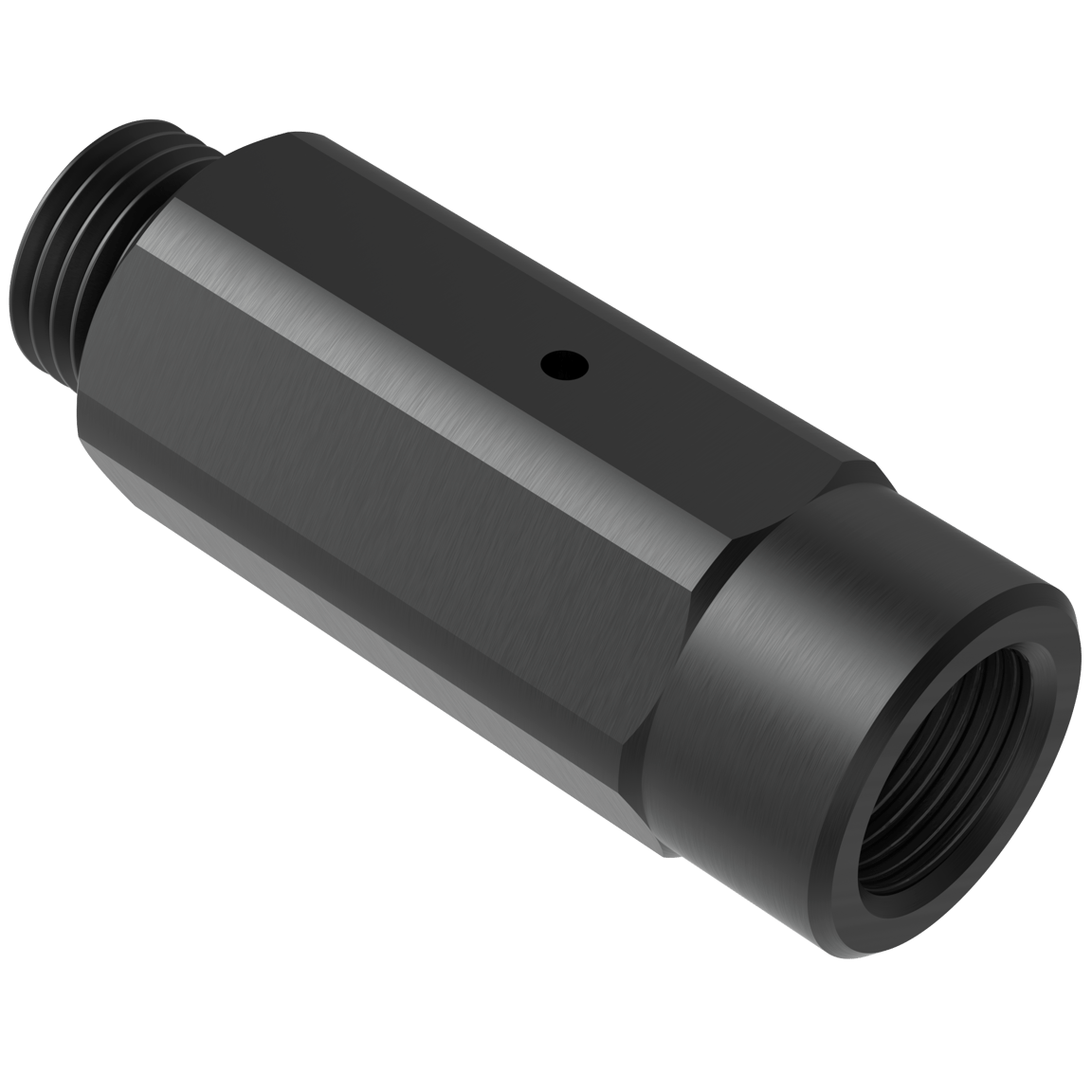

Blow-off Check valve 1/8" NPSF female.
Our suction cup valves are a group of products that serve to save energy in various applications at the suction cup.
Login or create account to access all our content and features!
Variants
- 0115314
- 0117337
- 0120181
Features
- Prevents vacuum from being pulled through the blow-off lines, which means faster response time and completely independent vacuum units.
- Reliable quick-release function even in larger systems with several units, due to the very low feed pressure required to break away for blow-off.
- Suitable in applications where cleaning of the suction cup filters or cooling of the object to be picked is important.
General
Material
Al , HNBR , Nitrile (NBR) , PA , POM , SS , Steel
Temperature
-10 - 80 °C
Weight, min.
9.4 g
Performance
Feed pressure (minimum to break away for blow-off)
0.1 - 0.7 MPa
Feed pressure, optimum
0.3 - 0.6 MPa
Pneumatic data
Flow rate (@ 0.3-0.6 MPa)
1.3 - 2.8 Nl/s
