Suction cup OCF20×50 Polyurethane 60, G3/8^" female, 17 mm thread

Variants

•

  0209497

  Suction cup OCF20×50 Polyurethane 60, G3/8^" female, 17 mm thread
  Compare
•

  0207727

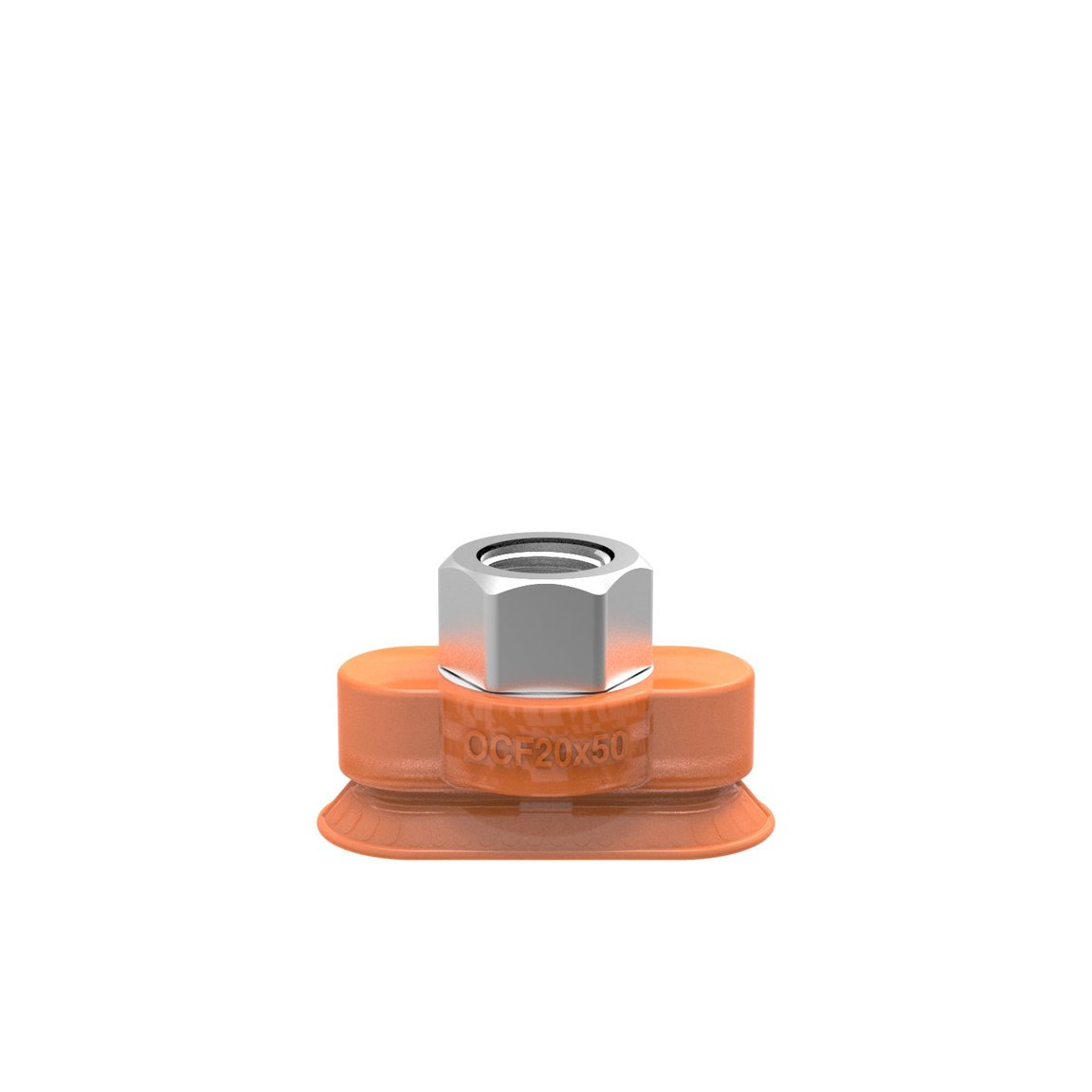

  Suction cup OCF20×50 Polyurethane 60, G3/8^" female
  Compare
•

  0207728

  Suction cup OCF20×50 Polyurethane 60, G3/8^" male
  Compare
•

  0207726

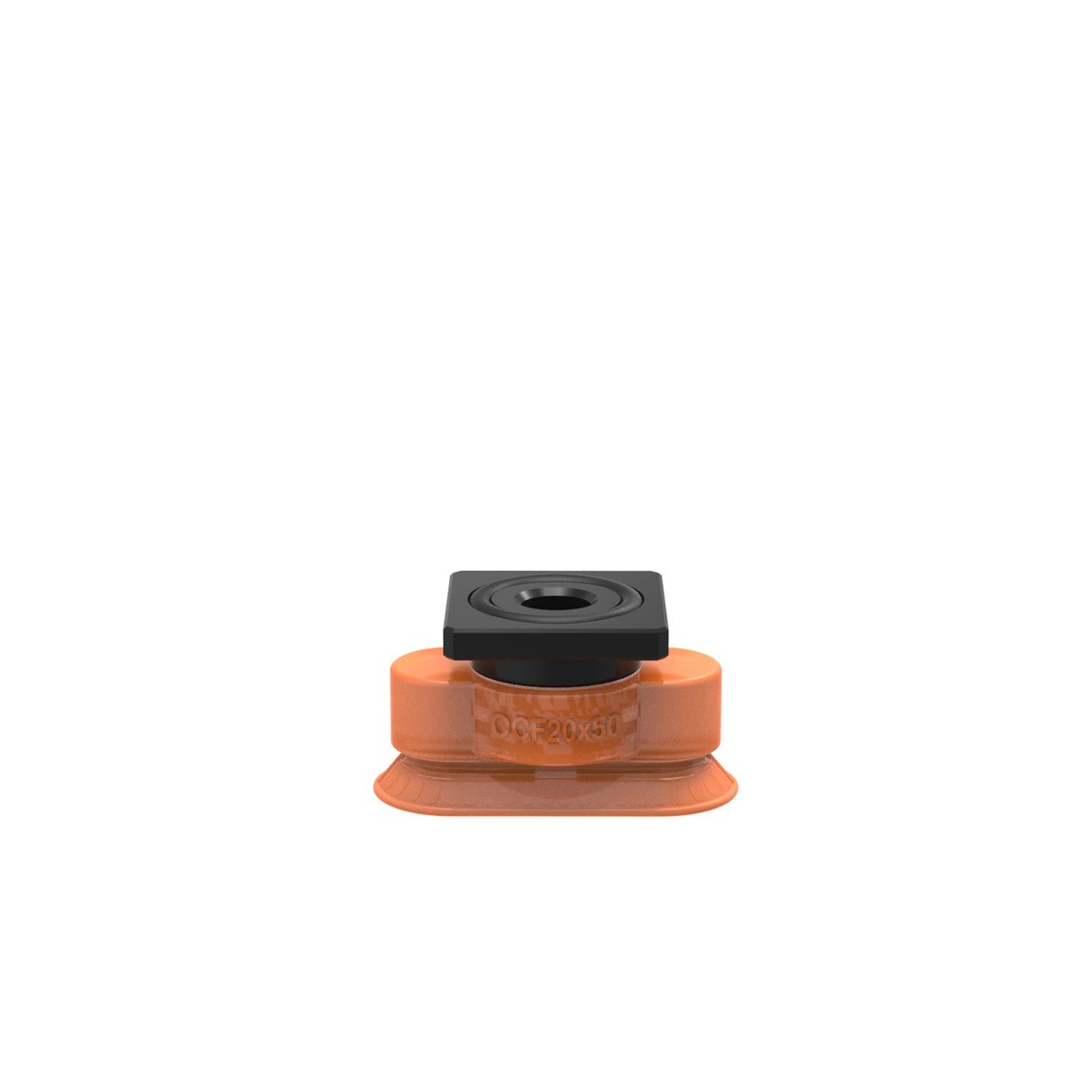

  Suction cup OCF20×50 Polyurethane 60, T-slot with mesh filter
  Compare
•

  0207730

  Suction cup OCF20×50 Polyurethane 60, G1/4^" female
  Compare
•

  0207731

  Suction cup OCF20×50 Polyurethane 60, G1/4^" male
  Compare
•

  0207732

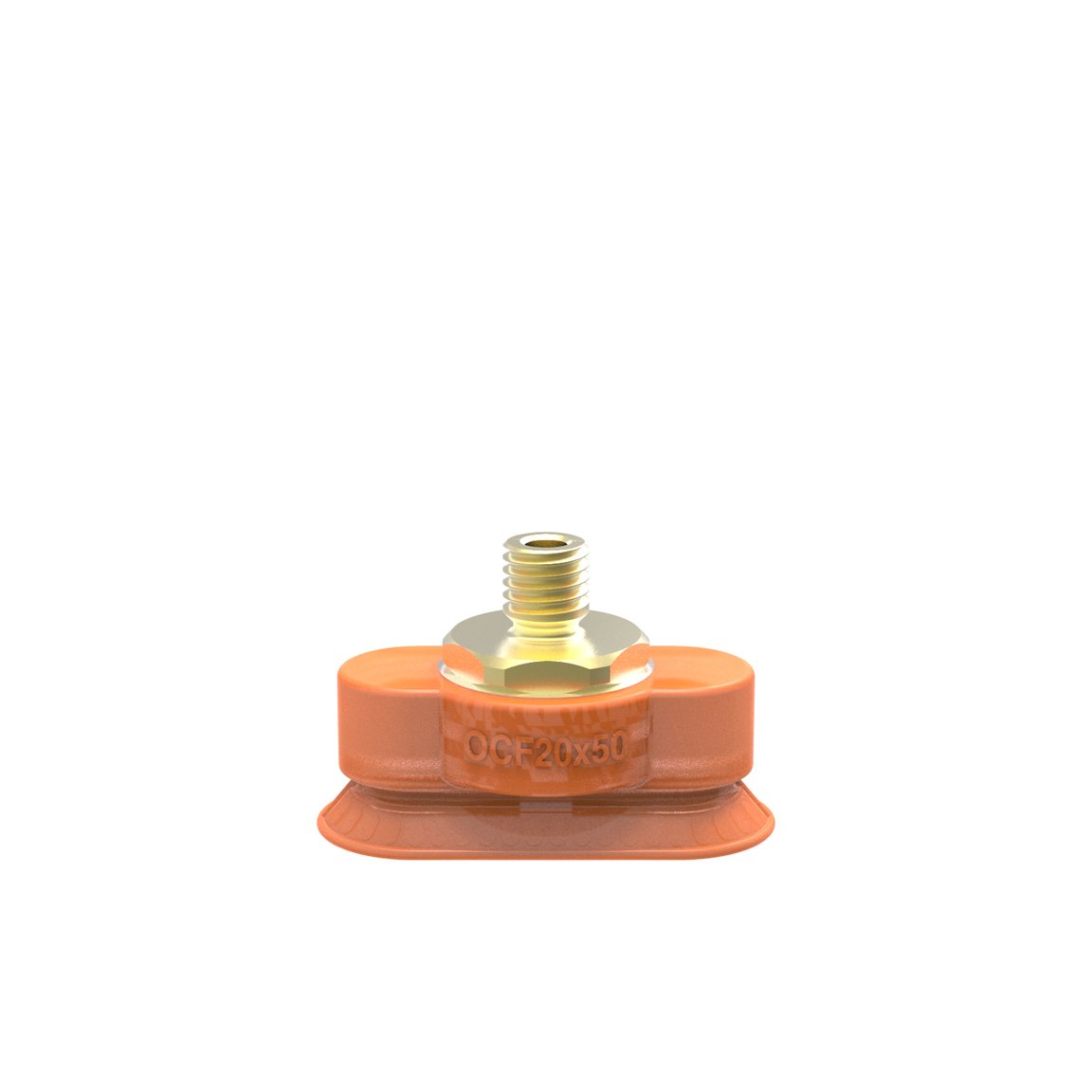

  Suction cup OCF20×50 Polyurethane 60, M10×1.5 male
  Compare
•

  0207729

  Suction cup OCF20×50 Polyurethane 60, NPT3/8^" female
  Compare
•

  0207618

  Suction cup OCF20×50 Polyurethane 60, G3/8^" female plastic
  Compare

Features

• Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
• Normal wear on friction cup will not affect the long term shear force performance.
• Best choice if > 0,1g/m2 press oil is used on the sheet.
• Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
• The "OCF" design is suitable for oblong objects with slightly curved or flat surfaces.
• DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
