Item number: 0115304
2 Variants

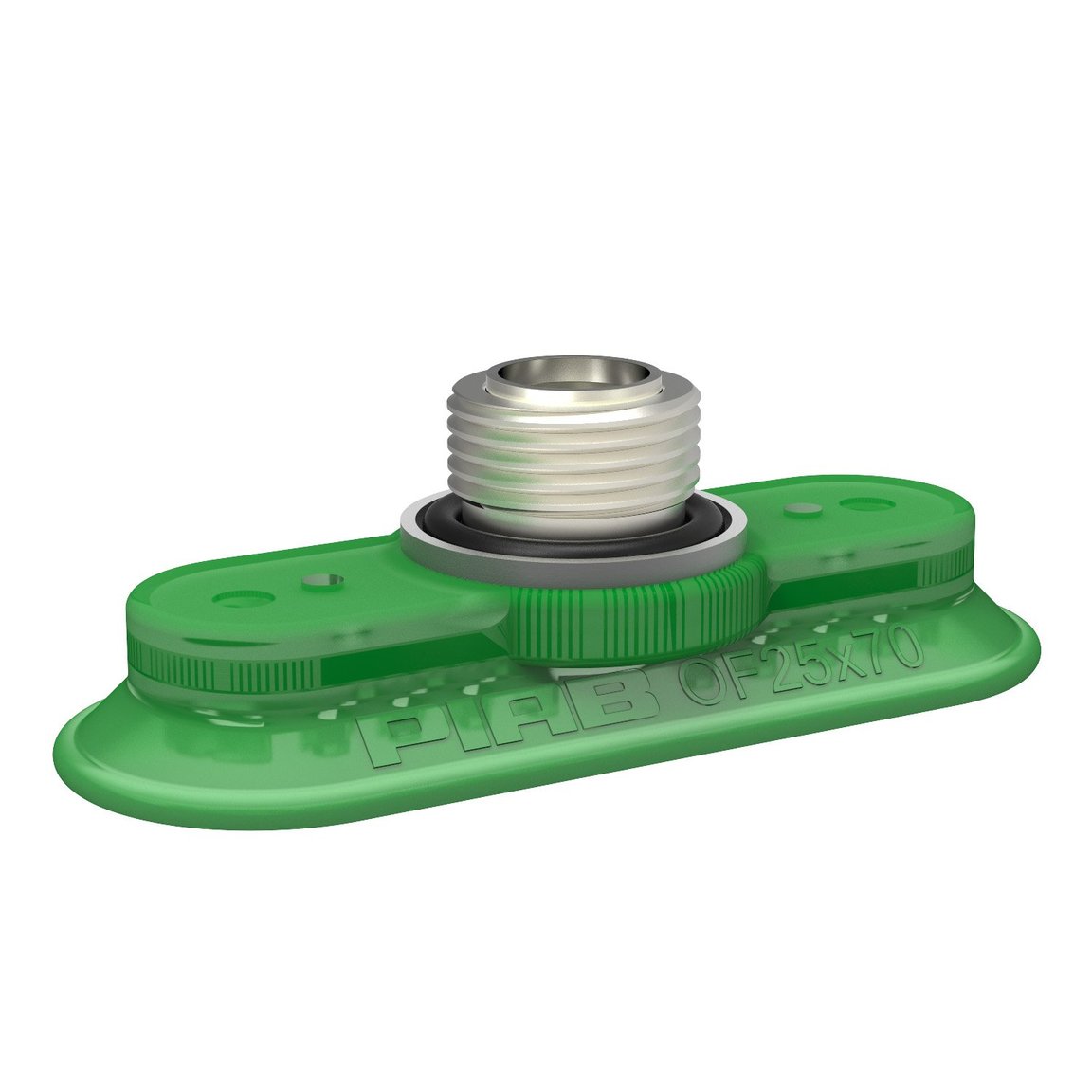

Suction cup OF25x70P Polyurethane 40, G3/8" male
This program of oval suction cups has characteristics that are specially suited for handling of metal-sheet material.
Login or create account to access all our content and features!
Variants
- 0115304
- 0115311
Features
- Suitable for flat and rough surfaces.
- Fair stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and give extra friction when the lifting force is parallel to the surface of the object.
- DURAFLEX® are suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
- Swivel option, prior to the locking operation, for easy positioning of the oval cup.
Automotive
- Exterior and interior trim components assembly
Packaging
- Case / carton erecting, case / carton opening closing
- Rotary carton feeding
- Slip sheet feeding
- Tray forming, tray unloading and loading
- Boxes and containers
- Robot pick and place and packing
- Card / lid feeding and sorting
General
Material
Polyurethane (PU)
Characteristics
Dry sheet metal , Corrugated / cardboard , Plastic injection molded parts
Suction cup model
OF
Volume
6 cm³
Weight, min.
19 g
Fitting
Fitting option
None
Fitting size
3/8"
Fitting style
Male
Fitting type
G-thread
Dimension
Height
23 mm
Length
72.3 mm
Outer diameter, min.
72.3 mm
Width
27.3 mm
Performance - lifting forces
OF25x70P PU40
20 -kPa
24 N
46 N
60 -kPa
66 N
90 N
90 -kPa
107 N
105 N
Material
Name
Polyurethane (PU40)
Colour
RedTransparent
Temperature
10 - 50 °C
Hardness
40 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
