Item number: 0101102
34 Variants

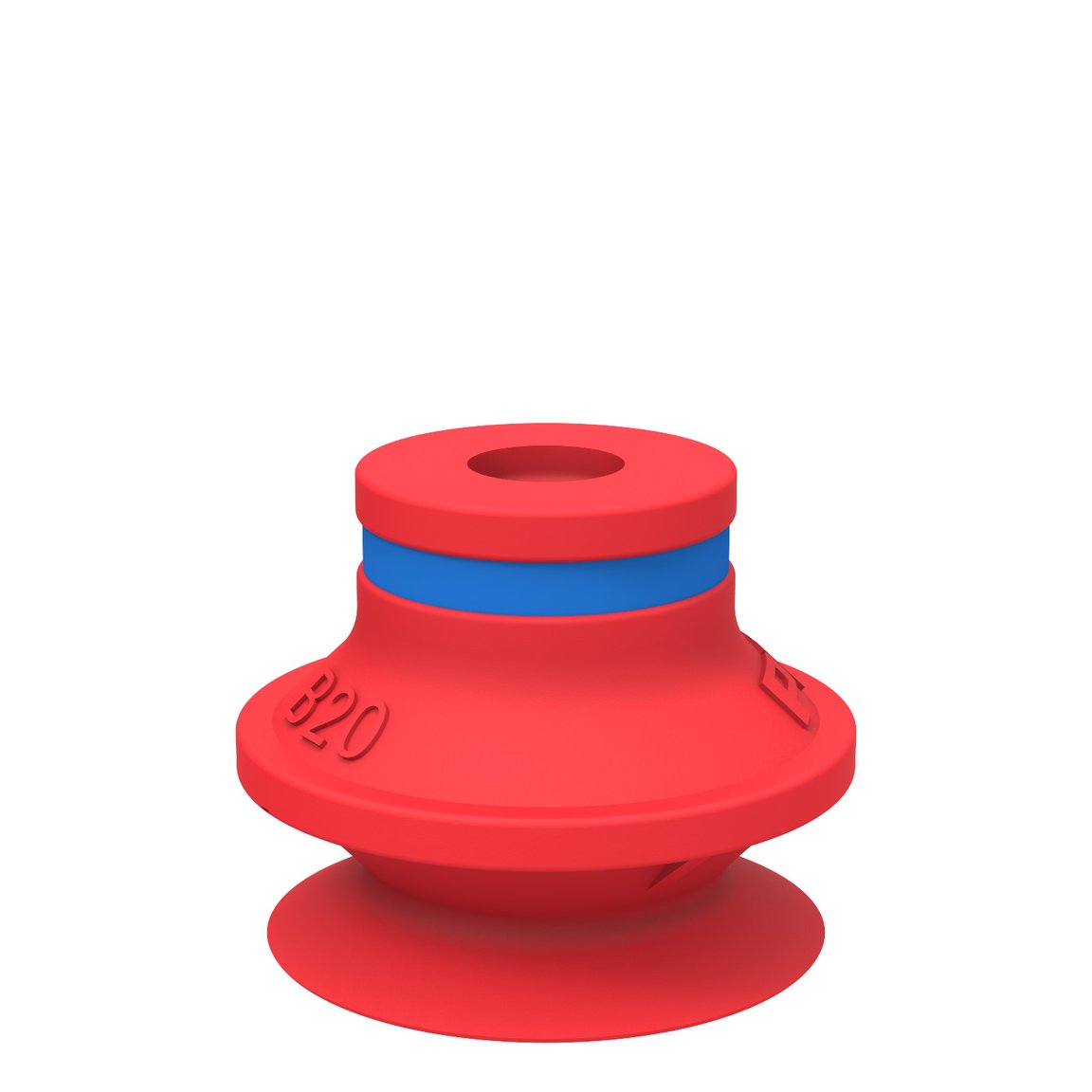

Suction cup B20 Silicone
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting moveme...
Read more
Login or create account to access all our content and features!
Variants
0101102
0101160
0101161
0101163
0101164
0101165
0101166
0101169
0101171
0101172
0101174
0101175
0101176
0101177
0101178
0101180
0101181
0110336
0110949
0128712
9906875
9906876
9906877
9906878
9906879
9906880
9906881
9906883
9906884
9906887
0101101
0101167
0101162
0101173
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- The lifting movement can be used to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
Logistics
Packaging
General
Material
Silicone (SIL)
Characteristics
Dry sheet metal , Plastic injection molded parts
Suction cup model
B
Volume
2.7 cm³
Weight, min.
3.2 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
19 mm
Outer diameter, min.
22 mm
Performance - lifting forces
B20
20 -kPa
5.9 N
2.9 N
60 -kPa
9.8 N
5.4 N
90 -kPa
14 N
8.22 N
Material
Name
Silicone, SIL 50° Shore A
Colour
Red
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
