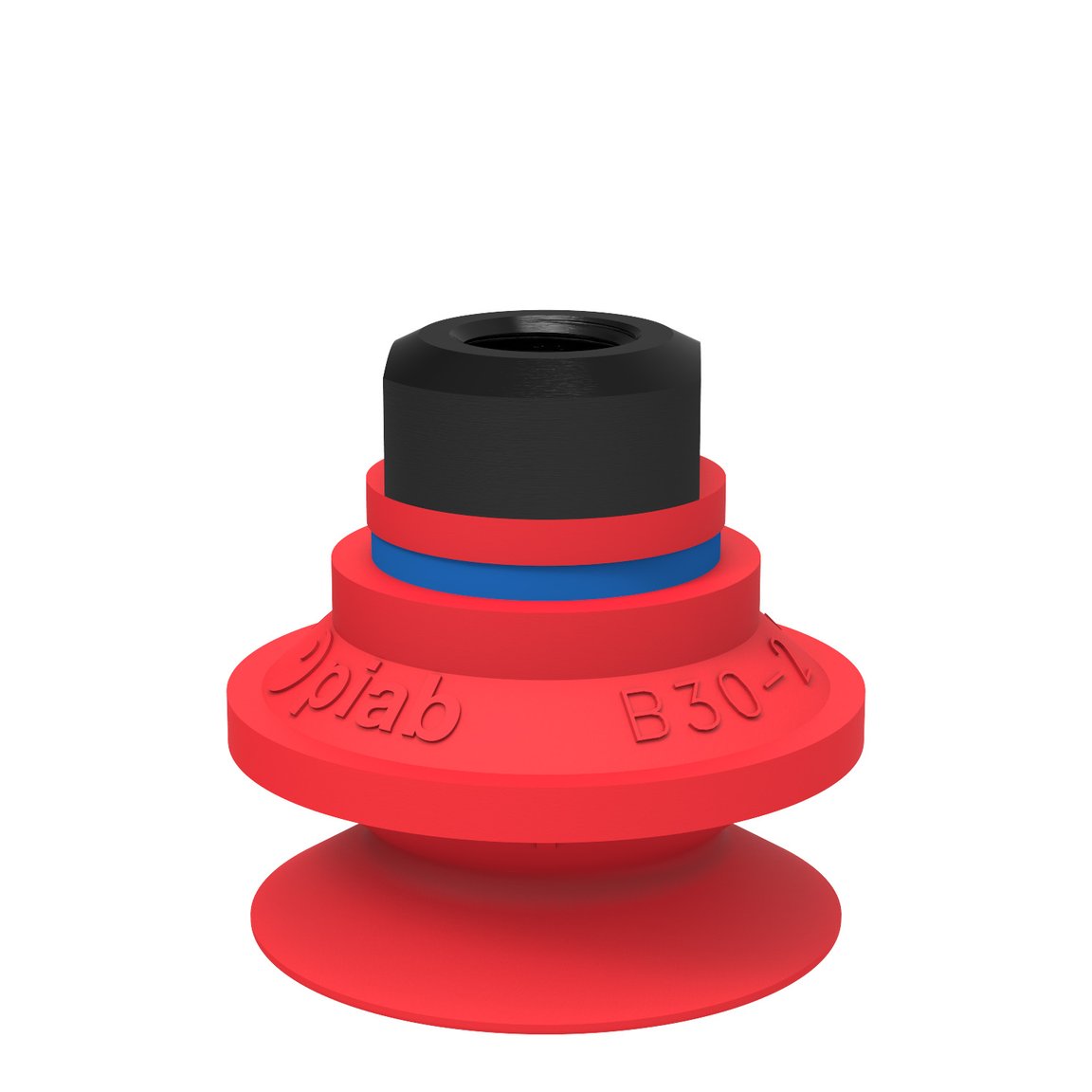

Suction cup B30-2 Silicone, 1/8" NPSF female, with mesh filter
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting moveme...
Read more
Login or create account to access all our content and features!
Variants
- 0101103
- 0101104
- 0101417
- 0101418
- 0101419
- 0101420
- 0101421
- 0101422
- 0101423
- 0101424
- 0101425
- 0101426
- 0101427
- 0101430
- 0101431
- 0101432
- 0101433
- 0101434
- 0101435
- 0101436
- 0101437
- 0101438
- 0101440
- 0101442
- 0108077
- 0108078
- 0108168
- 0109845
- 0110343
- 9906494
- 9906882
- 9907862
- 9908688
- 9908767
- 9908768
- 9908769
- 9908770
- 9908772
- 9908773
- 0108167
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- The lifting movement can be used to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
Logistics
Packaging
General
Material
Silicone (SIL)
Characteristics
Dry sheet metal , Plastic injection molded parts
Suction cup model
B
Volume
10 cm³
Weight, min.
7 g
Fitting
Fitting option
Filter mesh
Fitting size
1/8"
Fitting style
Female
Fitting type
NPSF-thread
Dimension
Height
34.2 mm
Outer diameter, actuated
38.4 mm
Outer diameter, min.
34.6 mm
Performance - lifting forces
B30-2
20 -kPa
12 N
9.4 N
60 -kPa
22 N
16.6 N
90 -kPa
27 N
22.2 N
Material
Name
Silicone, SIL 50° Shore A
Colour
Red
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
