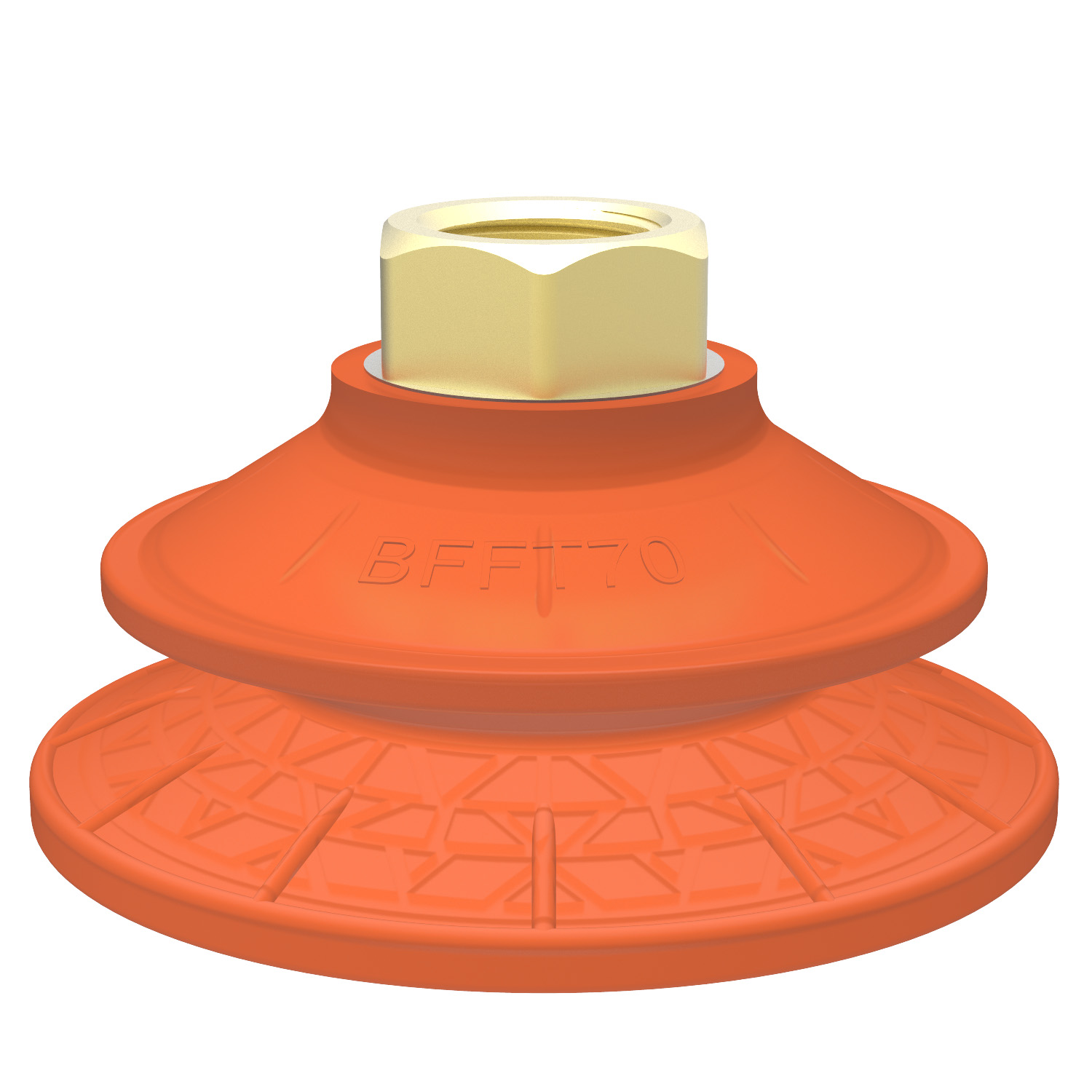

Suction cup BFFT70P Polyurethane 60/60/30, G1/4^" female, with mesh filter

Special designed friction cups for thin (0.6-0.8 mm) oily metal sheets, such as outer body car parts in a press-to press forming process.

Long lasting material, normal wear on friction cup will not affect the long term grip performance.

Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.

Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.

The "BFFT" design is suitable for thin flat or uneven/curved surfaces and if level compensation is needed, for example in de-stacking applications.

The flat inner support, made of dual hardness, gives stability and good grip during movement in any orientation.

DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled and has a fantastic elastic memory, even after hundreds of thousands of cycles.
