Item number: 3150264
2 Variants

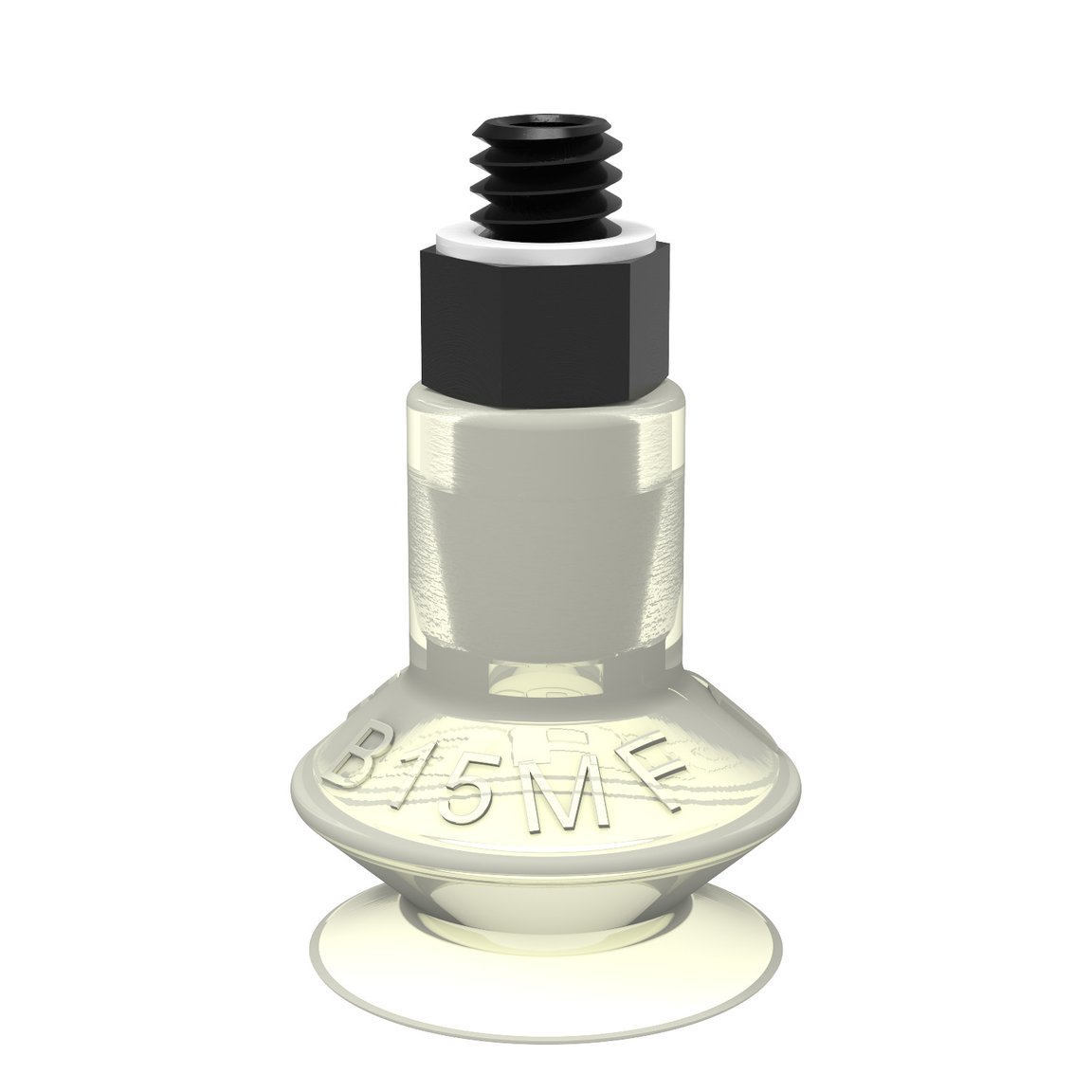

Suction cup B15MF Thermoelastic polyurethane
The same applications as for short bellows. Also suitable for smooth objects requiring a very clean surface. Only light weight objects should be handled when th...
Read more
Login or create account to access all our content and features!
Variants
3150264
3250069
Features
- Suction cup of TPU, a mark free material that leaves no trace on the object being handled.
- Suitable for level adjustment.
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface.
Glass
General
Material
TPE
Characteristics
Mark free
Suction cup model
B-MF
Volume
1.1 cm³
Weight, min.
1.3 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
19.5 mm
Outer diameter, min.
16 mm
Performance - lifting forces
B15MF
20 -kPa
4 N
4.5 N
60 -kPa
8 N
7 N
90 -kPa
12 N
10 N
Material
Name
Thermoplastic Polyurethane (TPE-U)
Colour
WhiteTransparent
Temperature
-20 - 80 °C
Hardness
81 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
