Item number: 0101133
25 Variants

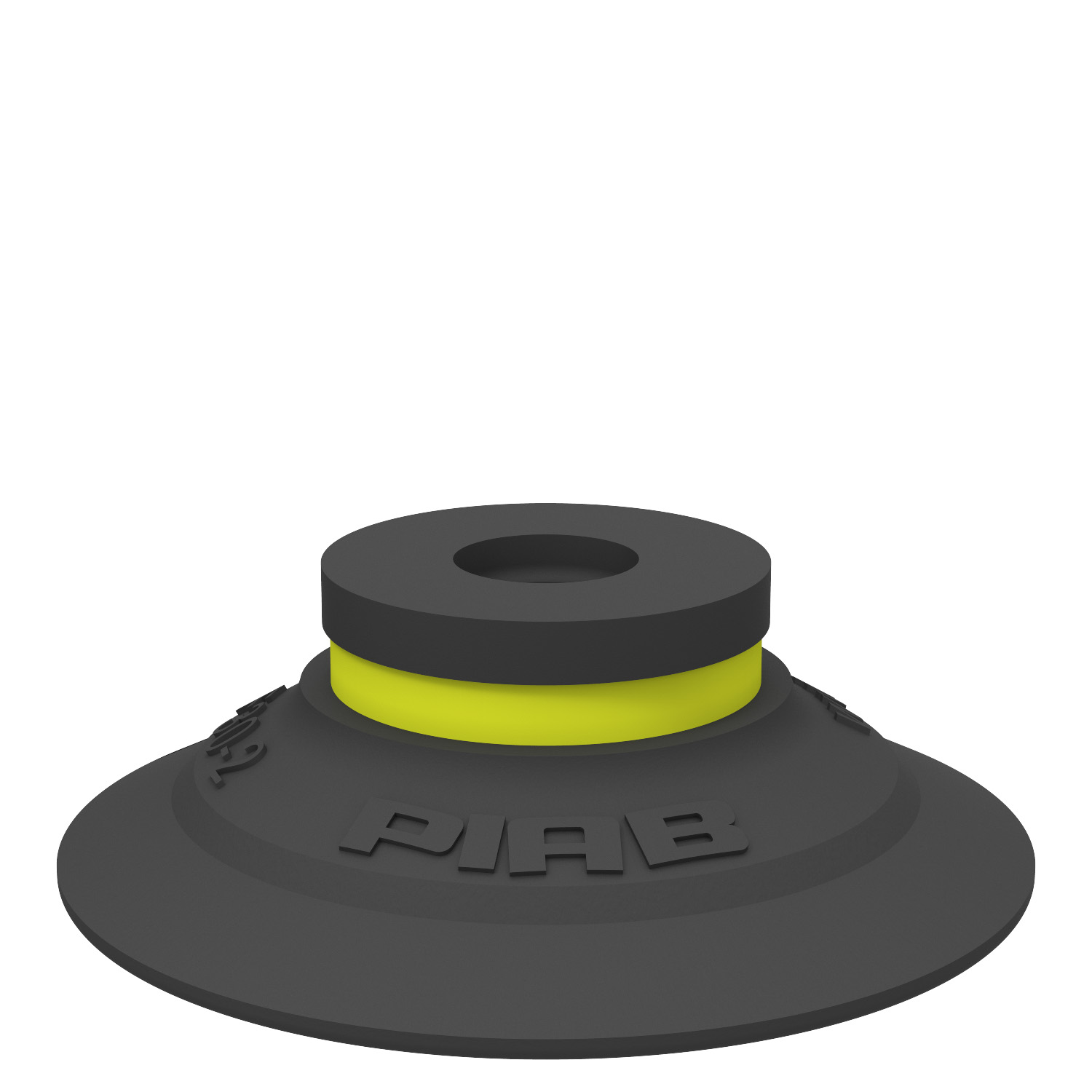

Suction cup F30-2 Chloroprene
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the c...
Read more
Login or create account to access all our content and features!
Variants
0101133
0101325
0101326
0101327
0101328
0101329
0101330
0101331
0101332
0101333
0101334
3250039
0109846
0101134
0101341
0101342
0101343
0101344
0101345
0101346
0101348
0101349
0101350
0110344
3250039S
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
Logistics
Packaging
General
Material
Chloroprene (CR)
Characteristics
Dry sheet metal
Suction cup model
F
Volume
2 cm³
Weight, min.
2.2 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
10.4 mm
Outer diameter, actuated
32.6 mm
Outer diameter, min.
32 mm
Performance - lifting forces
F30-2
20 -kPa
12 N
11 N
60 -kPa
25 N
16 N
90 -kPa
31 N
20 N
Material
Name
Chloroprene (CR) 50° Shore A
Colour
Black
Temperature
-40 - 110 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
