Item number: 0101143
9 Variants

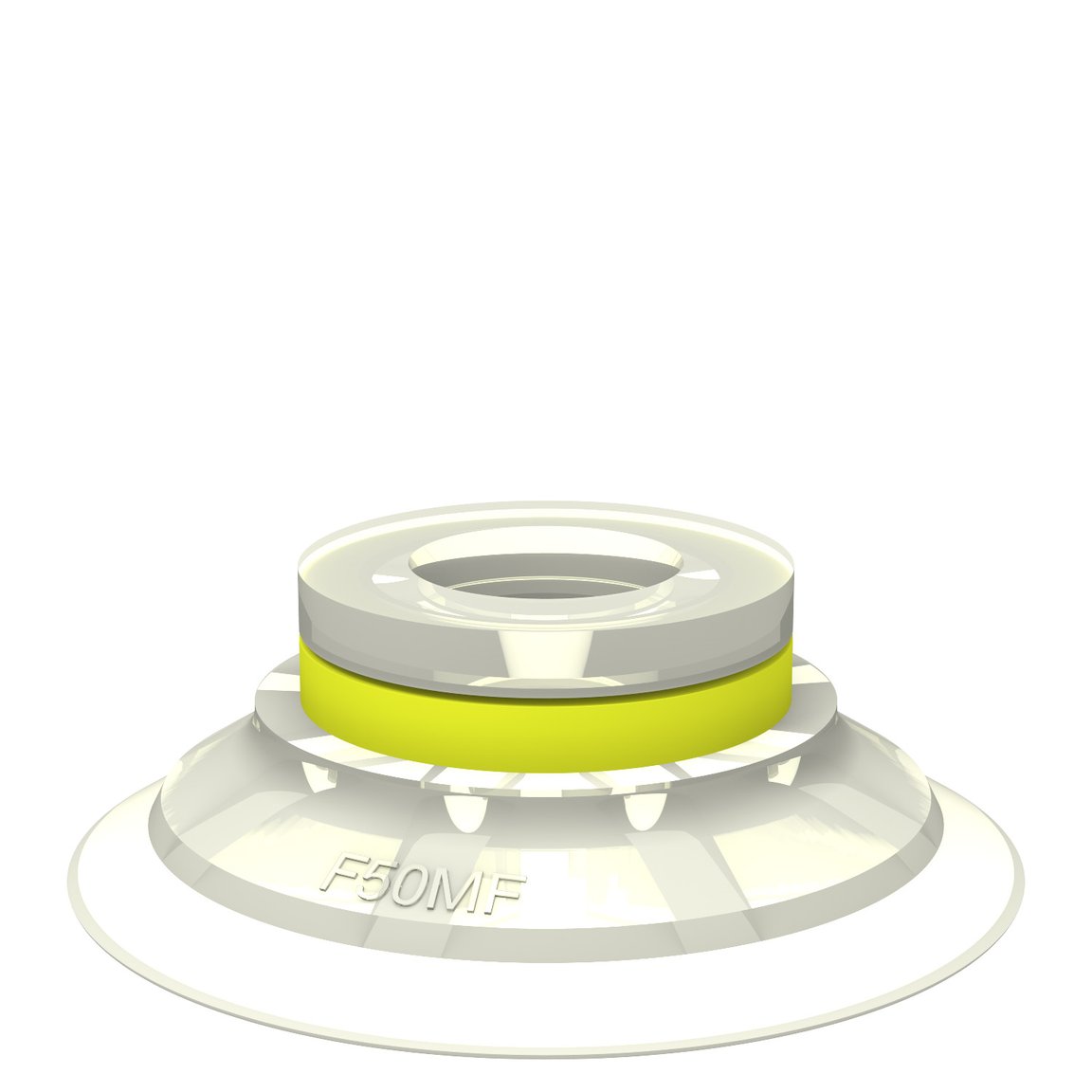

Suction cup F50MF Thermoelastic polyurethane
Suction cup of TPU, a mark-free material that leaves no trace on the object being handled. Suitable for flat surfaces. The cleats stop deformation by preventing...
Read more
Login or create account to access all our content and features!
Variants
0101143
0101785
0101786
0101787
0101788
0101789
0101791
0101793
0101794
Features
- Suction cup of TPU, a mark free material that leaves no trace on the object being handled.
- Suitable for flat surfaces.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
Glass
General
Material
TPE
Characteristics
Mark free
Suction cup model
F-MF
Volume
10 cm³
Weight, min.
10 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
17.5 mm
Outer diameter, actuated
54.6 mm
Outer diameter, min.
53 mm
Performance - lifting forces
F50MF
20 -kPa
24.5 N
31 N
60 -kPa
92 N
82 N
90 -kPa
141 N
107 N
Material
Name
Thermoplastic Polyurethane (TPE-U)
Colour
WhiteTransparent
Temperature
-20 - 80 °C
Hardness
81 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
