Item number: 0101150
18 Variants

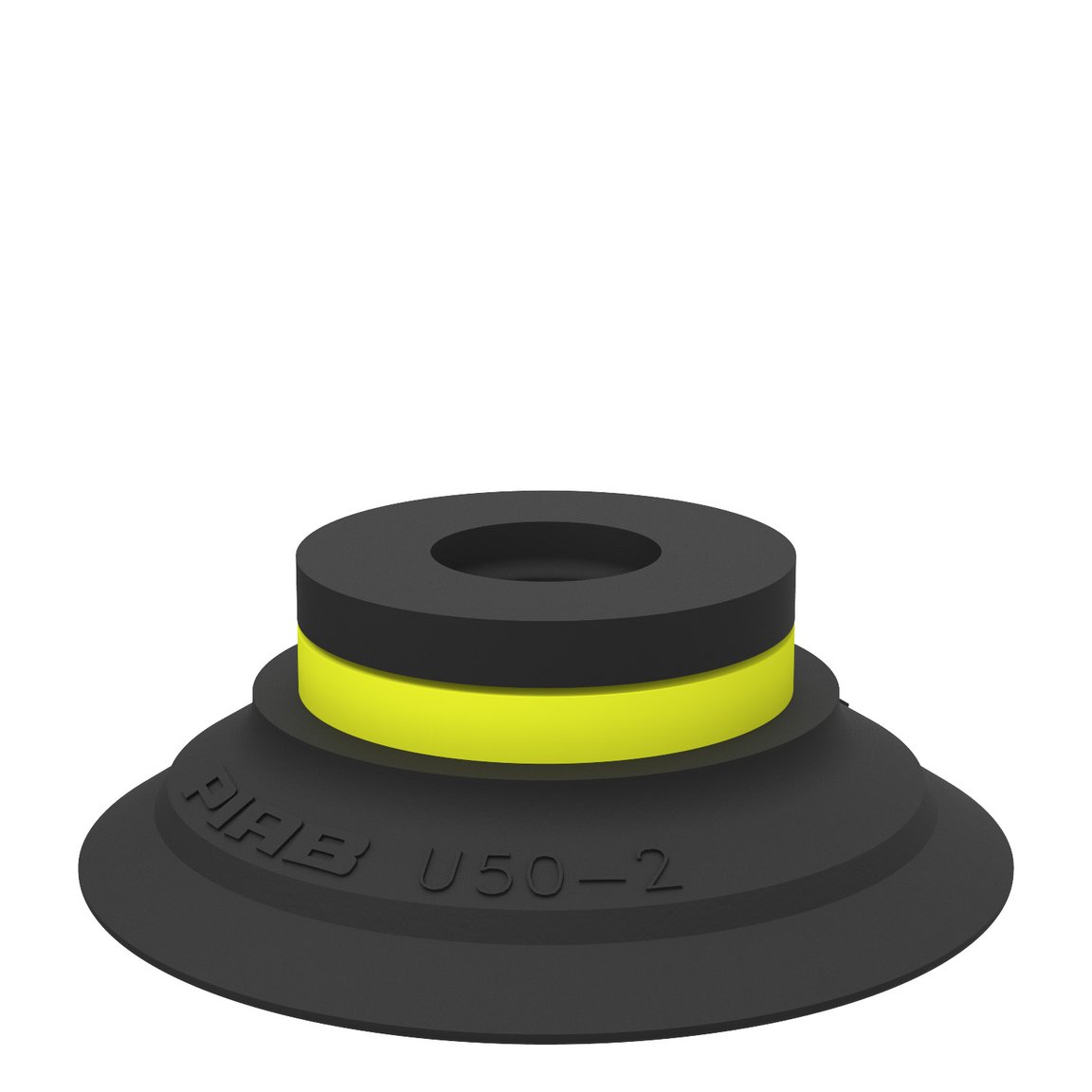

Suction cup U50-2 Nitrile-PVC
For handling objects with flat or slightly curved surfaces.
Login or create account to access all our content and features!
Variants
0101150
0101151
0101804
0101805
0101806
0101807
0101808
0101810
0101811
0101814
0101817
0101818
0101819
0101820
0101821
0101822
0101823
0110330
Features
- Suitable for objects with flat or slightly curved surfaces.
- Also used for concave objects.
Logistics
Packaging
General
Material
Nitrile-PVC (NPV)
Characteristics
Dry sheet metal , Plastic injection molded parts
Suction cup model
U
Volume
12 cm³
Weight, min.
10 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
17.5 mm
Outer diameter, min.
51.4 mm
Performance - lifting forces
U50-2
20 -kPa
35 N
20 N
60 -kPa
73 N
37 N
90 -kPa
92 N
44 N
Material
Name
Nitrile-PVC (NPV)
Colour
Black
Temperature
0 - 90 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
