Item number: 0108240
21 Variants

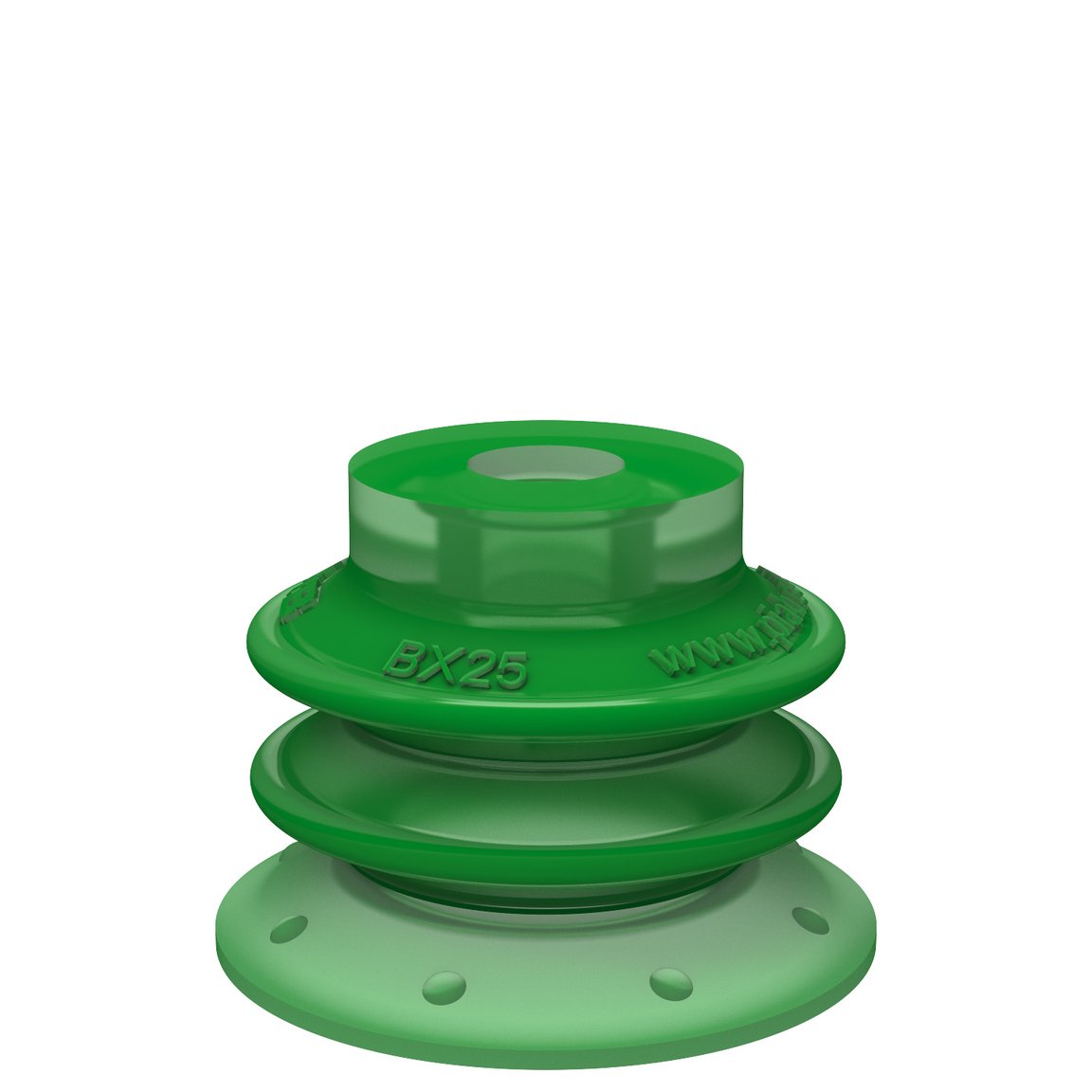

Suction cup BX25P Polyurethane 60
Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elas...
Read more
Login or create account to access all our content and features!
Variants
0108240
0109006

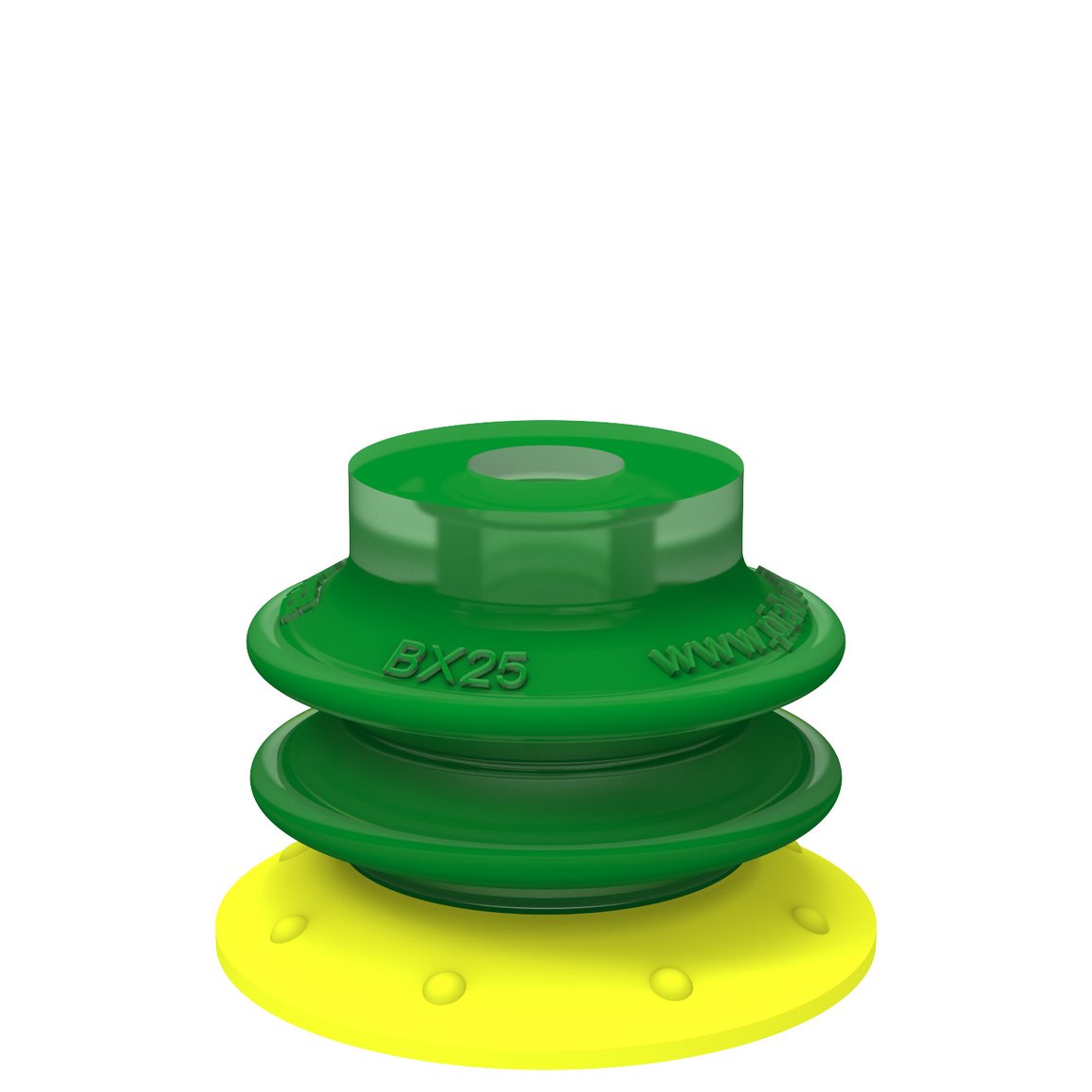

0109312

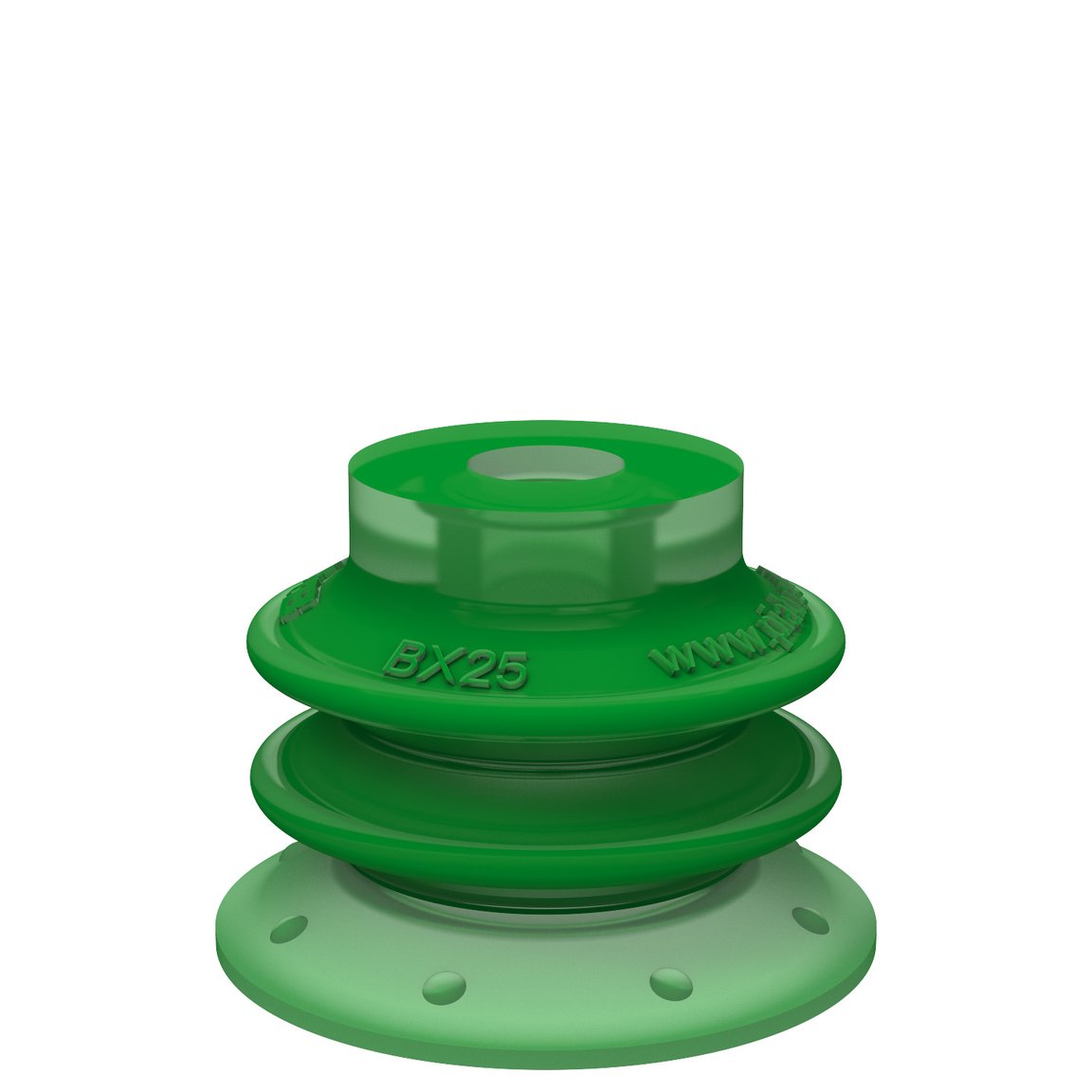

0109397
0109398

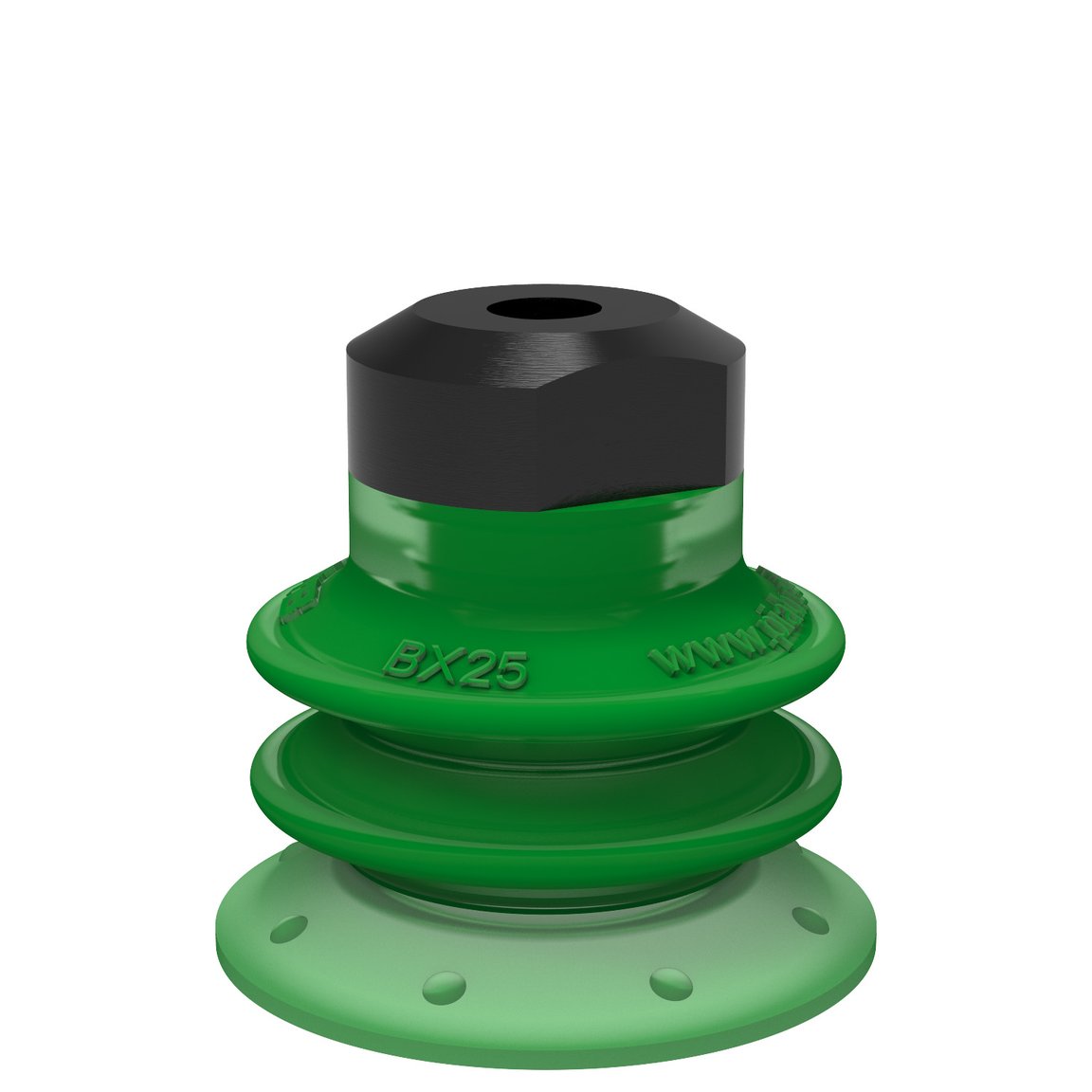

0109400

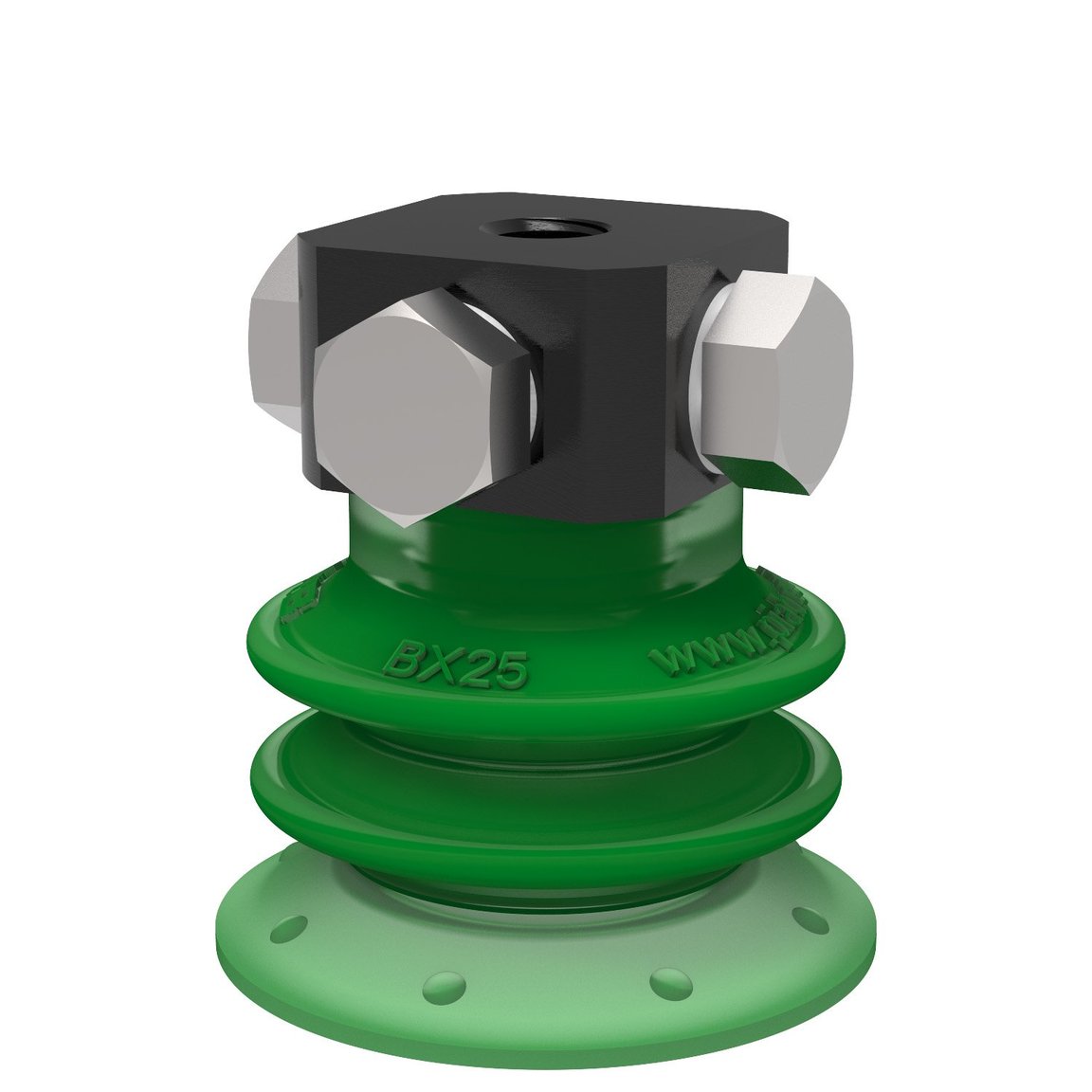

0109401
0109402
0109403

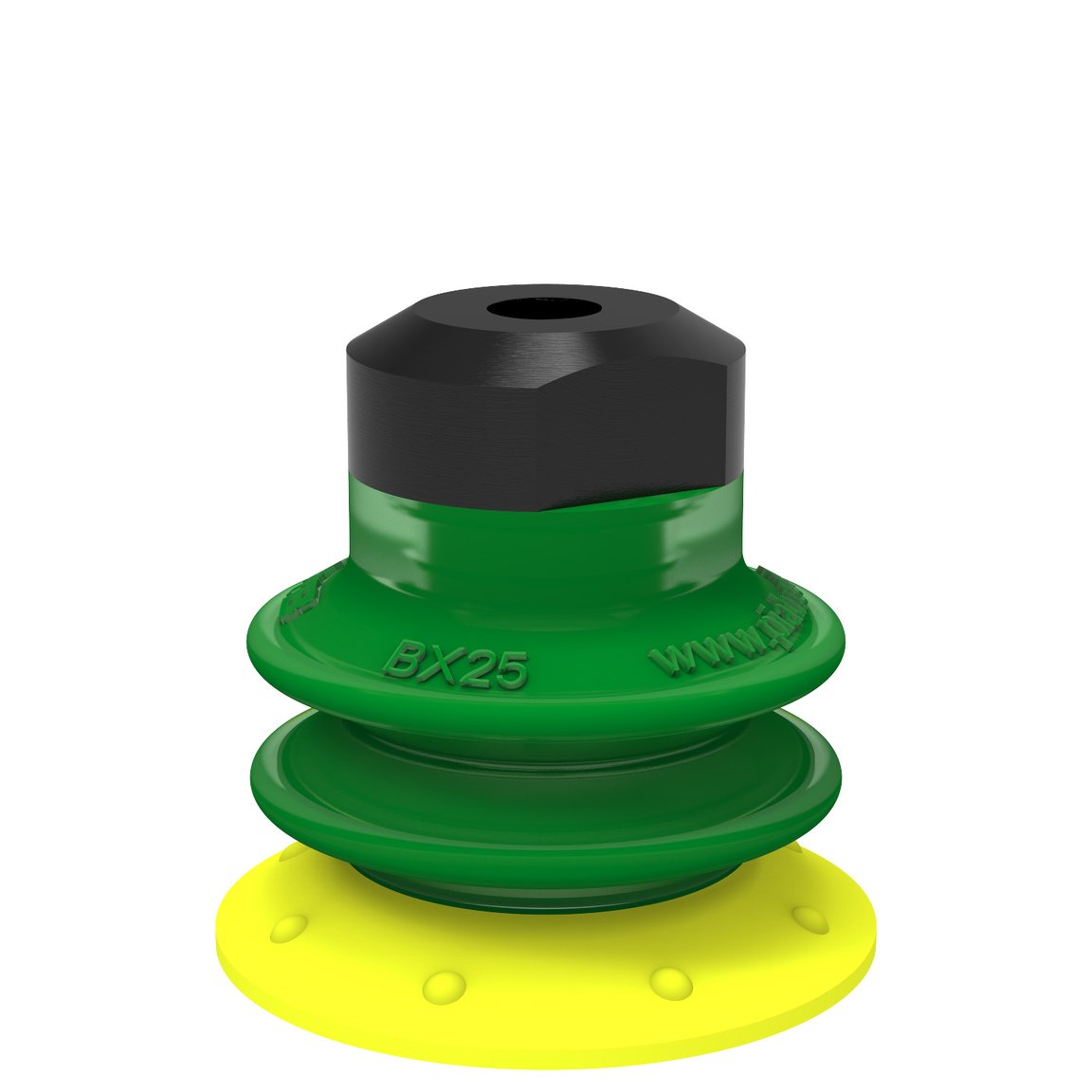

0109404
0109405
0114131
0114149

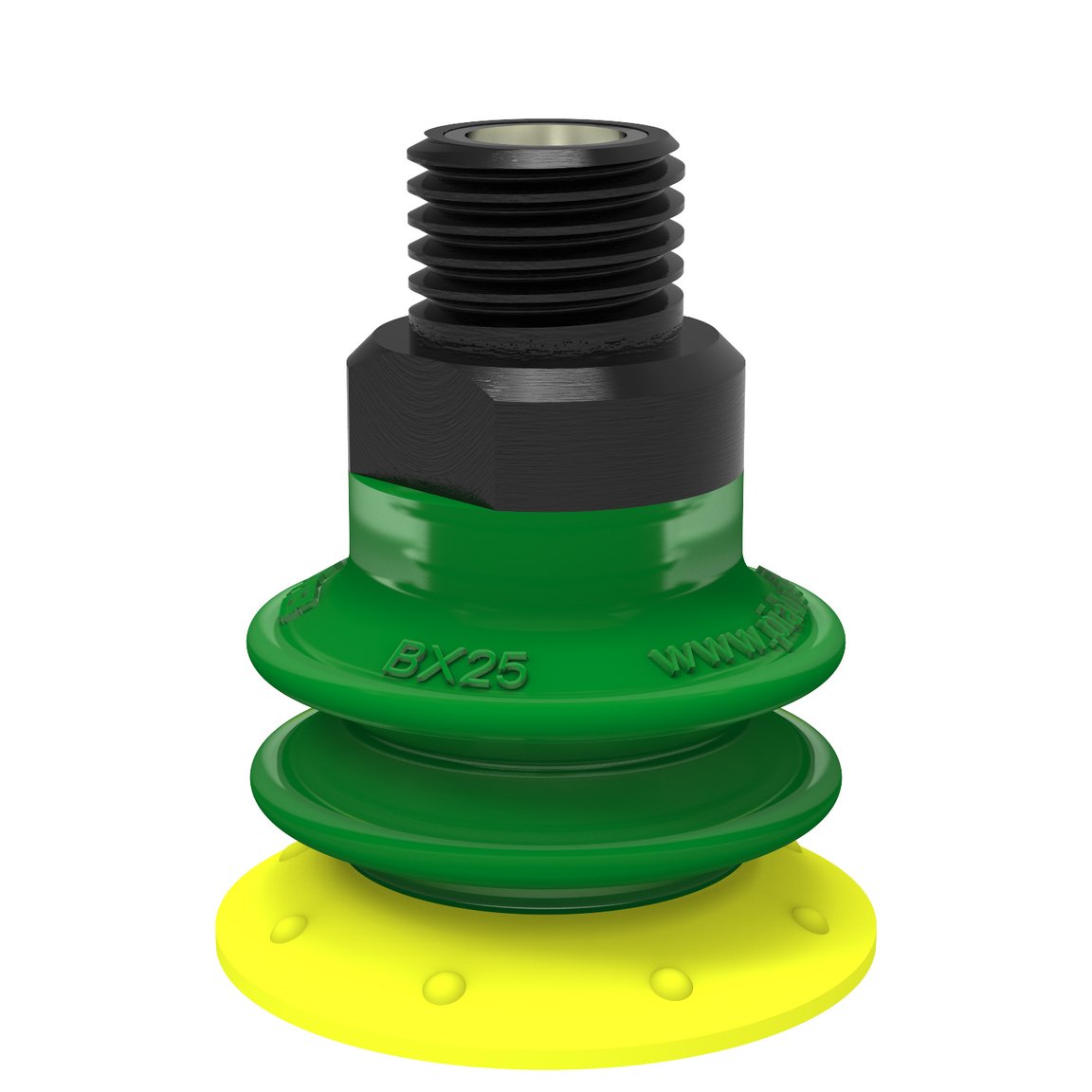

0125683
0125684
9909111
9908800
9909202

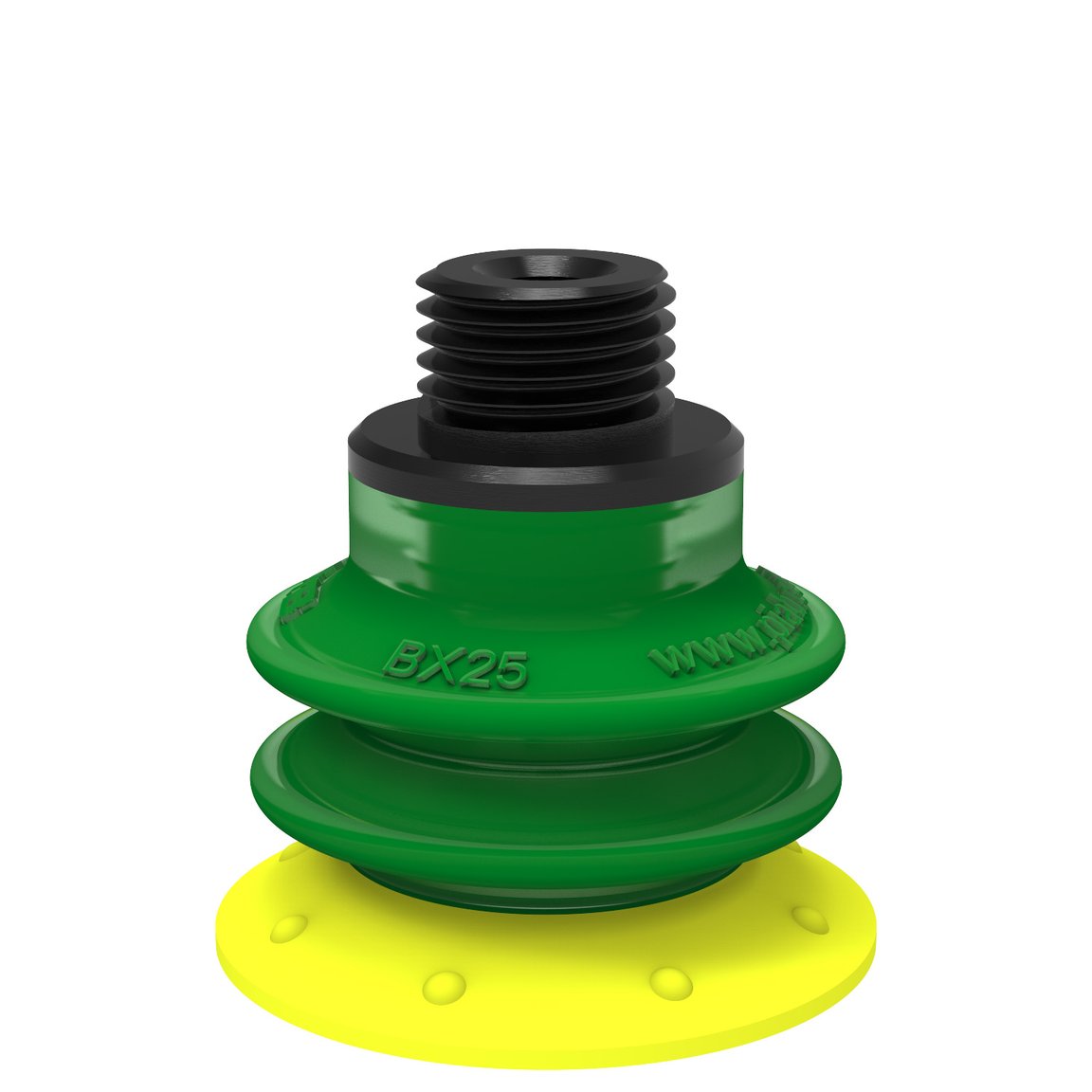

9907924

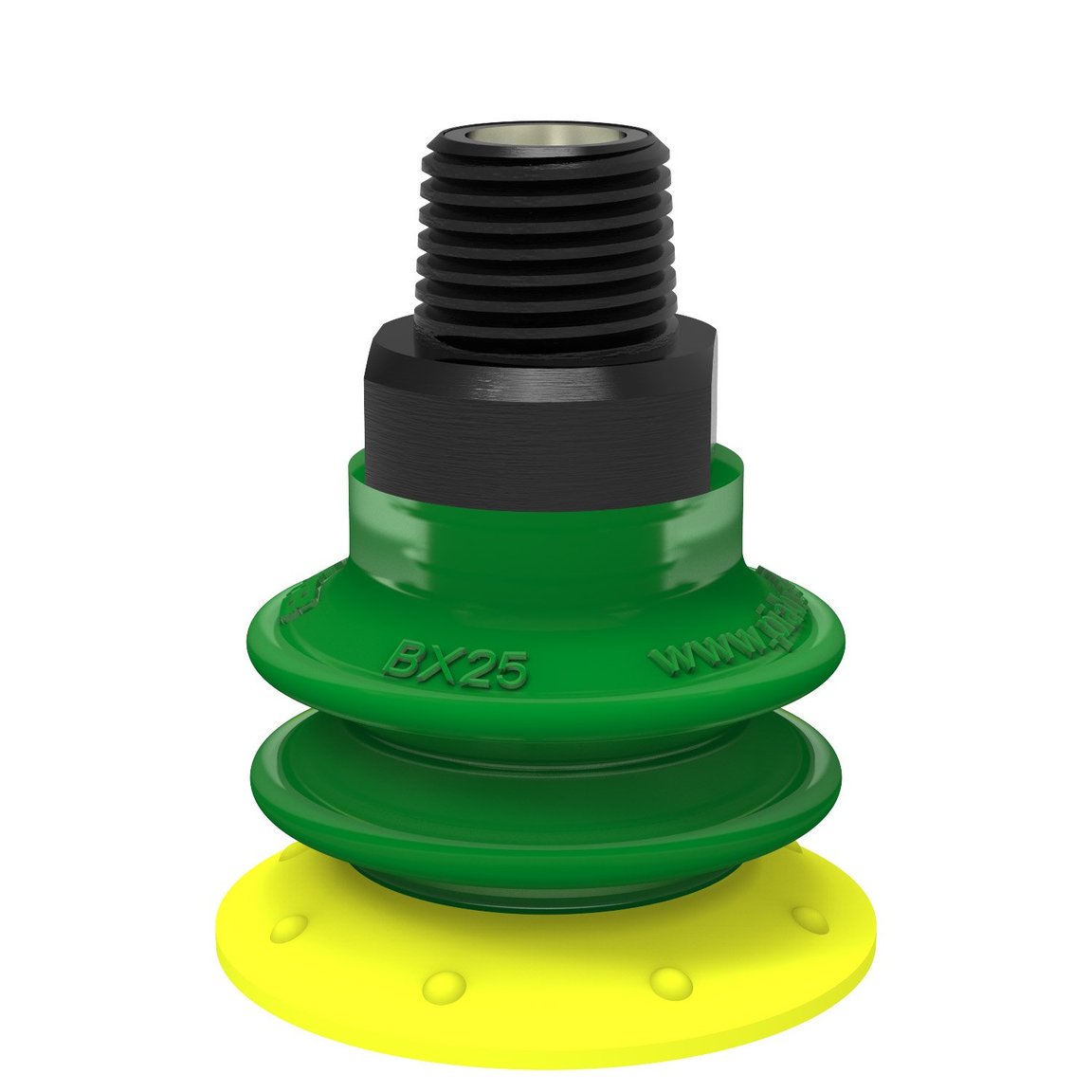

9909116

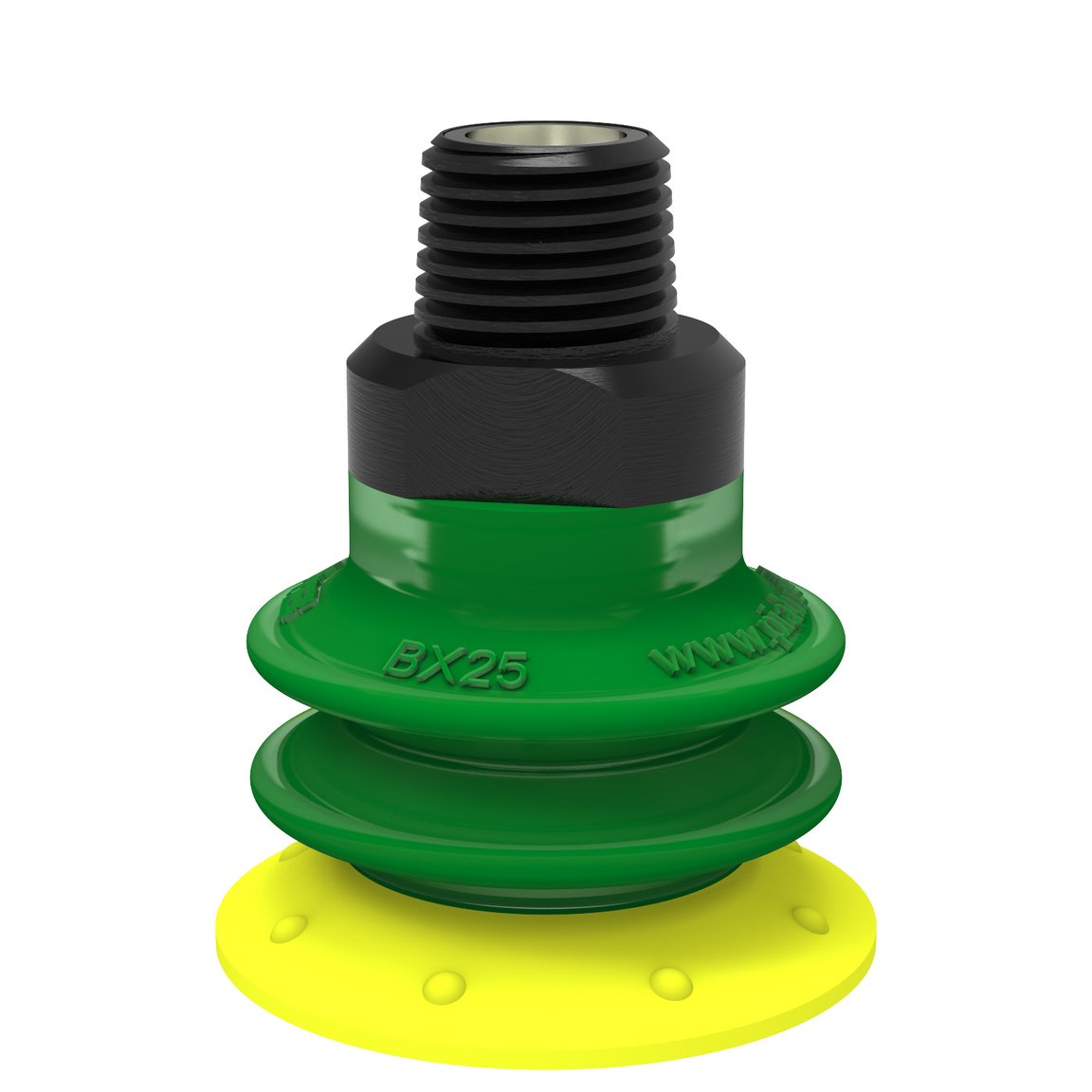

9909117
Features
- Suitable for level adjustment and for uneven and porous surfaces such as cardboard, etc.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane.
- The material DURAFLEX® is mark free.
Automotive
- Plastic part removal
- Exterior and interior trim components assembly
Packaging
- Boxes and containers
- Card / lid feeding and sorting
- Case / carton erecting, case / carton opening closing
- Robot pick and place and packing
- Rotary carton feeding
- Slip sheet feeding
- Tray forming, tray unloading and loading
Plastics
- Plastic part removal
General
Material
Polyurethane (PU)
Characteristics
Dry sheet metal , Corrugated / cardboard , Plastic injection molded parts , Mark free
Suction cup model
BX-P
Volume
3 cm³
Weight, min.
3 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
19 mm
Outer diameter, min.
26 mm
Performance - lifting forces
BX25P PU60
20 -kPa
9 N
7 N
60 -kPa
14 N
11 N
90 -kPa
18 N
14 N
Material
Name
Polyurethane (PU60)
Colour
GreenTransparent
Temperature
10 - 50 °C
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
