Item number: 3101056
2 Variants

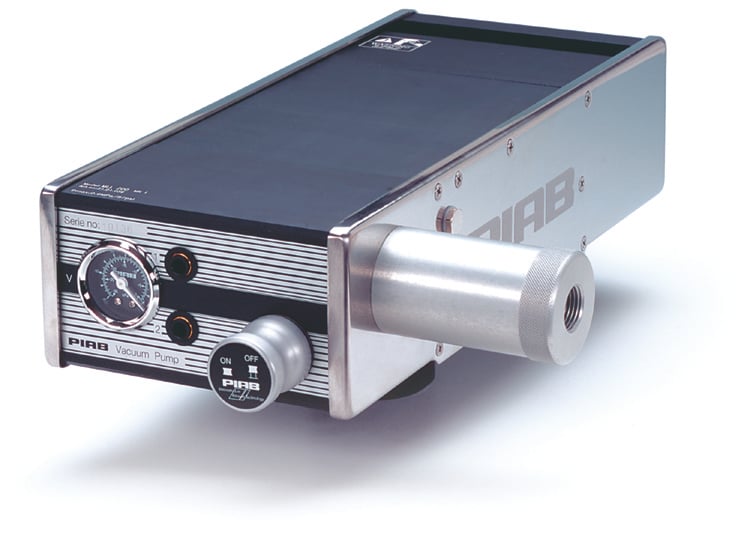

Vacuum pump MAXI MLL200, NBR sealings, G 1 1/2"
These are vacuum pumps of a standard (classic) design and range from very small chip pumps to large capacity pumps. Most of the pumps have the COAX® cartridge i...
Read more
Login or create account to access all our content and features!
Variants
3101056- 3101056U
Features
- Largest compressed-air driven pump in the market
General
Material
Al , PPS , Nitrile (NBR) , SS
Noise level
72 - 76 dBA
Temperature
-20 - 80 °C
Weight, min.
4900 g
Performance
Feed pressure, max.
0.7 MPa
| Feed pressure | Air consumption | Vacuum flow (Nl/s) at different vacuum levels (-kPa) | Max vacuum | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPa | Nl/s | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | -kPa |
| 0.6 | 14 | 48 | 27 | 18.1 | 9.5 | 4.8 | 3.3 | 2.4 | 1.1 | 0.48 | 0.01 | 91 |
