Item number: 0106957
4 Variants

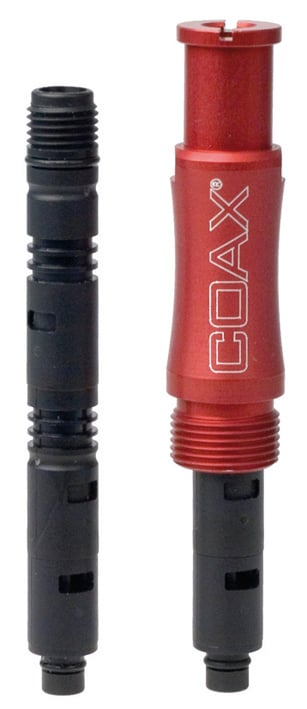

COAX® cartridge MINI Pi12-3, holding cap, extra non-return valve
COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab’s multistage technology, COAX® cartridges are smaller, more efficient and m...
Read more
Login or create account to access all our content and features!
Variants
0106895- 0106923
- 0106956
- 0106957
Features
- Three-stage COAX® cartridge - MINI - with high initial vacuum flow.
- Vacuum level to 90 -kPa at low feed pressure.
- High system reliability in case of fluctuating or low feed pressure.
- Suitable for handling sealed objects with high pick-up speed.
Logistics
- Bin picking / Random bin picking
- SMD roll handling
- Sorting and singulations / Parcel handling
Packaging
- Case / carton erecting, case / carton opening closing
- Direct food contact
- Product & container labelling
- Rotary carton feeding
- Tray forming, tray unloading and loading
- Vacuum belt feeding
General
Material
Al , Nitrile (NBR) , PA , SS
Temperature
-10 - 80 °C
Weight
4.7 - 12.5 g
Performance
Feed pressure, max.
0.7 MPa
| Feed pressure | Air consumption | Vacuum flow (Nl/s) at different vacuum levels (-kPa) | Max vacuum | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPa | Nl/s | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | -kPa |
| 0.6 | 0.79 | 1.6 | 1 | 0.5 | 0.41 | 0.36 | 0.28 | 0.17 | 0.05 | 0.01 | 0 | 83 |
| 0.4 | 0.53 | 1.4 | 0.7 | 0.52 | 0.39 | 0.24 | 0.12 | 0.1 | 0.06 | 0.02 | 0 | 84 |
| 0.17 | 0.29 | 0.9 | 0.4 | 0.22 | 0.15 | 0.07 | 0 | 0 | 0 | 0 | 0 | 49 |
| 0.22 | 0.34 | 1.1 | 0.48 | 0.29 | 0.2 | 0.14 | 0.08 | 0.02 | 0 | 0 | 0 | 64 |
| 0.32 | 0.44 | 1.4 | 0.6 | 0.44 | 0.27 | 0.19 | 0.14 | 0.1 | 0.06 | 0.03 | 0 | 90 |
