Item number: 0120286
4 Variants

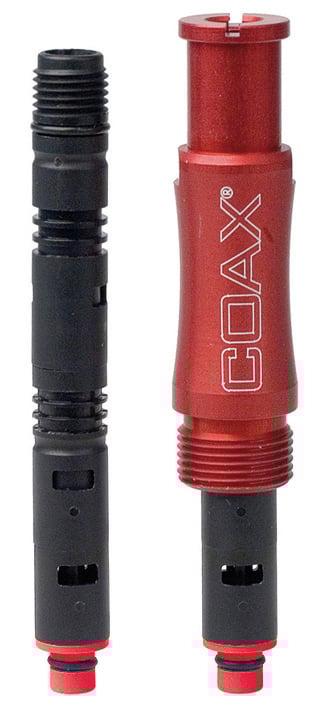

COAX® cartridge MINI Xi10-3
COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab’s multistage technology, COAX® cartridges are smaller, more efficient and m...
Read more
Login or create account to access all our content and features!
Variants
0120286- 0120289
- 0120298
- 0120299
Features
- Three-stage COAX® cartridge – MINI.
- High vacuum flow at deep vacuum levels to 94 -kPa.
- Quick response time when deep vacuum is needed.
- Suitable for handling sealed objects with high pick-up speed.
- Large vacuum flow in relation to energy consumption
Logistics
- Bin picking / Random bin picking
- SMD roll handling
- Sorting and singulations / Parcel handling
Packaging
- Case / carton erecting, case / carton opening closing
- Direct food contact
- Product & container labelling
- Rotary carton feeding
- Tray forming, tray unloading and loading
- Vacuum belt feeding
General
Material
Al , Nitrile (NBR) , PA , SS
Temperature
-10 - 80 °C
Weight
4.7 - 12.5 g
Performance
Feed pressure, max.
0.7 MPa
| Feed pressure | Air consumption | Vacuum flow (Nl/s) at different vacuum levels (-kPa) | Max vacuum | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPa | Nl/s | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | -kPa |
| 0.45 | 0.42 | 1.39 | 0.64 | 0.46 | 0.28 | 0.19 | 0.15 | 0.11 | 0.07 | 0.043 | 0.003 | 92 |
| 0.6 | 0.54 | 1.45 | 0.79 | 0.53 | 0.42 | 0.3 | 0.16 | 0.11 | 0.08 | 0.041 | 0.01 | 93 |
| 0.5 | 0.46 | 1.43 | 0.7 | 0.5 | 0.33 | 0.19 | 0.15 | 0.11 | 0.07 | 0.045 | 0.011 | 94 |
