Item number: 0204917
2 Variants

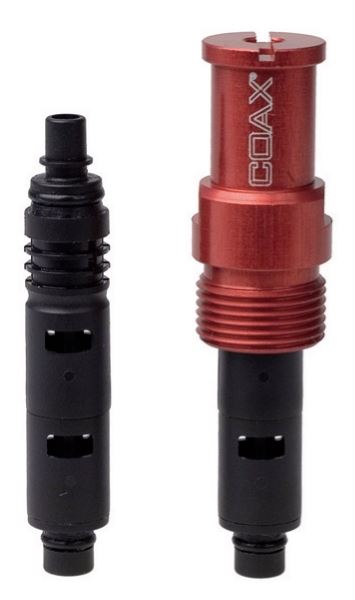

COAX® cartridge MINI Di16-2
COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab’s multistage technology, COAX® cartridges are smaller, more efficient and m...
Read more
Login or create account to access all our content and features!
Variants
0204917- 0204918
Features
- Two-stage COAX® cartridge - MINI - with small mounting dimensions.
- Di cartridge eliminates the risk for clogging- even in extreme applications, such as high humidity in combination with dust.
- Vacuum level to 73-kPa.
- Cartridge without flap valves
- Suitable for handling leaking objects.
Logistics
- Bin picking / Random bin picking
- SMD roll handling
- Sorting and singulations / Parcel handling
Packaging
- Case / carton erecting, case / carton opening closing
- Direct food contact
- Product & container labelling
- Rotary carton feeding
- Tray forming, tray unloading and loading
- Vacuum belt feeding
General
Material
Al , Nitrile (NBR) , PA , SS
Temperature
-10 - 80 °C
Weight
2.8 - 9.9 g
Performance
Feed pressure, max.
0.7 MPa
| Feed pressure | Air consumption | Vacuum flow (Nl/s) at different vacuum levels (-kPa) | Max vacuum | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPa | Nl/s | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | -kPa |
| 0.6 | 0.75 | 0.64 | 0.57 | 0.49 | 0.41 | 0.35 | 0.29 | 0.18 | 0.04 | 0 | 0 | 73 |
