Item number: 01.22.025
7 Variants

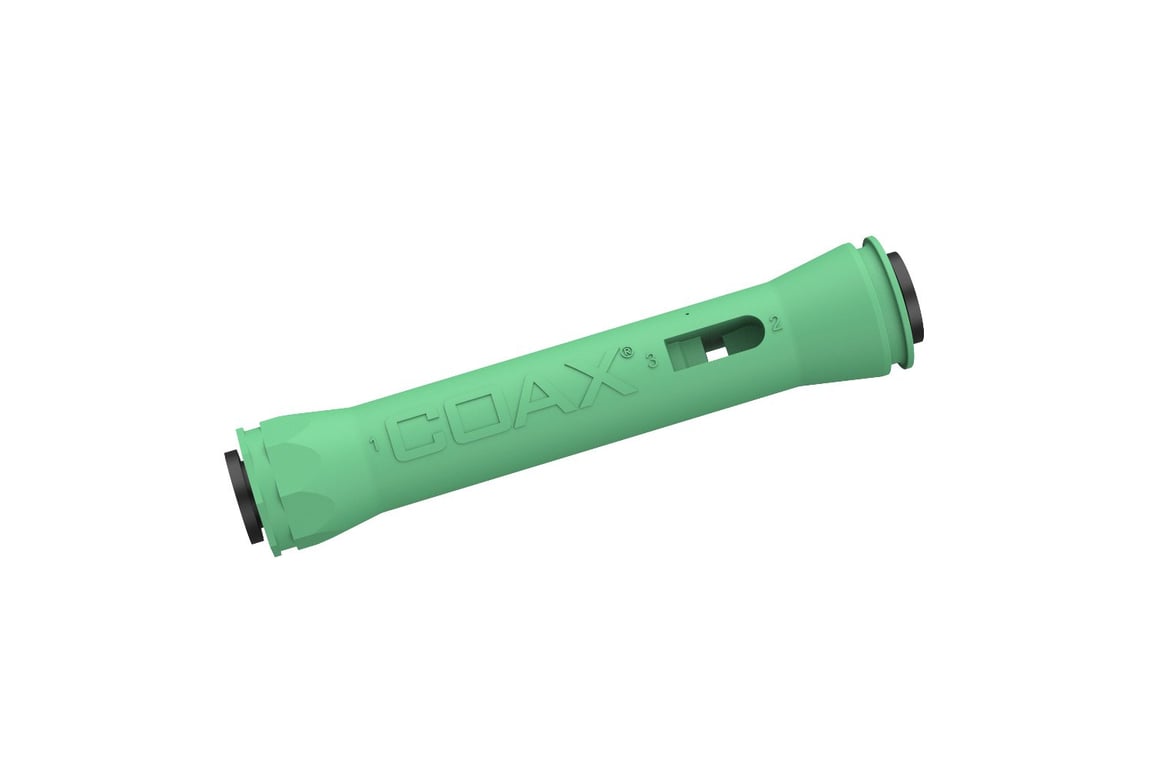

piINLINE® vacuum generator MINI Si, 6-6 mm
Login or create account to access all our content and features!
Variants
- 01.22.025
- 01.22.894
- 01.22.895
- 01.22.896
- 01.22.897
- 01.22.898
- 02.05.550
Features
- Patented COAX® cartridge technology.
- High vacuum flow capacity in relation to energy consumption.
- Low weight inline design with push-in fittings for vacuum and compressed air.
- Quick and easy installation directly on the hose.
- Si cartridge for extra vacuum flow.
- Pi cartridge for high performance at low feed pressures.
- Xi cartridge when high flow and deep vacuum is needed.
Automotive
- Plastic part removal
Packaging
- Case / carton erecting, case / carton opening closing
- Product & container labelling
Plastics
- Plastic part removal
General
Material
Al , CuZn , Nitrile (NBR) , PA , SS
Noise level
68 - 84 dBA
Temperature
14 - 176 °F
Weight, min.
0.81 oz
Performance
Air consumption
25.7 l/m (.9 scfm) scfm
Feed pressure, max.
101.5 psi
Dimensions DWG
Diameter
0.75 in
Diameter
0.24 in
Diameter
0.24 in
Length
3.78 in
Feed pressure | Air consumption | Vacuum flow (scfm) at different vacuum levels (-inHg) | Max vacuum | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
psi | scfm | 0 | 2 | 5 | 8 | 11 | 14 | 17 | 20 | 23 | 26 | -inHg |
87 | 0.93 | 1.46 | 1.17 | 0.89 | 0.59 | 0.49 | 0.34 | 0.25 | 0.17 | 0 | 0 | 22.15 |
