Item number: 02.00.328
3 Variants

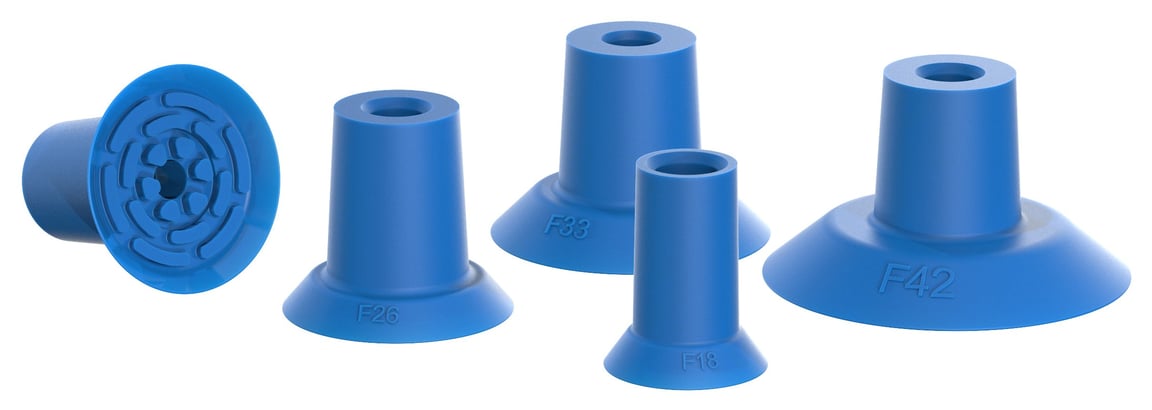

Suction cup F33 Silicone FCM
Login or create account to access all our content and features!
Variants
02.00.328
99.14.237
99.14.252
Features
- Designed for opening bags in bag filling stations.
- Also suitable to handle thin and sensitive sheets, such as paper and plastic films.
- The thin, conformable lip and clever cleat pattern prevent sensitive object/sheet to get sucked in and damaged while giving enhanced lifting force.
- FDA 21 CFR 177.2600 & EU 1935/2004 approved silicone material.
Food & beverage
Packaging
- Bag and pouch opening
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Bag opening/thin paper - slip sheets/film , Food contact materials (FDA & EU), non-detectable
Suction cup model
F
Volume
0.13 in³
Weight, min.
0.19 oz
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
0.93 in
Outer diameter, actuated
1.33 in
Outer diameter, min.
1.3 in
Performance - lifting forces
F33 FDA
5.91 -inHg
3.6 lbf
3.035 lbf
17.72 -inHg
8.54 lbf
7.31 lbf
26.58 -inHg
11.016 lbf
9.33 lbf
Material
Name
Silicone (SIL FDA) 50° Shore
Color
Blue
Temperature
-40 - 392 °F
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Gasoline
Wear resistance
